Pilot manual lift basket mill for pigments color pastes

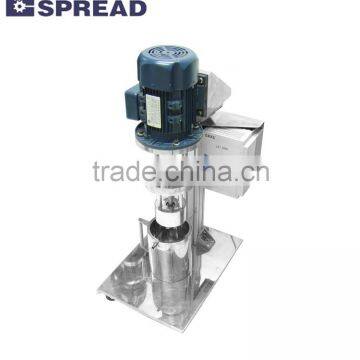

Pilot basket mill for pigment and color paste

Description

ESBM0.75 basket mill is an pilot integrated equipment, which combines milling and dispersing to reduce particle size for paint, coatings, inks and pigment dispersions and agrochemical liquids applications. The basket mill integrates high speed dissolving and pump wheels, a very narrow particle size distribution can be achieved in this machine.The mill basket can be controlled by electrical, easy for the operator lift up and down.

Features

-  Replaceable milling basket structure, easy to clean

-  Easy to maintain and move from one batch to another different product production

-  Ceramic grinding Zirconium beads required

-          Jacket cooling water container included

-          All wet part contact material used SS304

-          Variable frequency driver is amounted

-          Electrical lifting up and down

-          Explosive proof motor is available

Main Technical data

Motor Power: 0.75KW/220V/50HZ

Lifting: Manual lifting

Lifting distance: 350mm

Speed: variable speed from 0-2800rpm with inverter

Capacity: 1-5

Wet Material in contact: SS304

Dimension: 550 X 680 X 980mm
