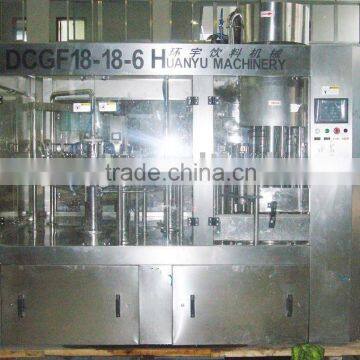

Washing Balanced Pressure Filling and Capping Machine 3-In-1 Unit
- 1 Set / Sets per Month
- Shanghai Port
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage | |
| Driven Type | Electric | Automatic Grade | Automatic | |
| Power | 1.5-12kw | Packaging Type | Bottles | |
| Packaging Material | Plastic | Place of Origin | Jiangsu, China | |
| Brand Name | HUANYU | Model Number | DCGF |
Product Description
Specifications
Balanced Pressure Filling and Capping Machine 3-In-1used in production of polyester bottle-packing carbonated drink
Balanced Pressure Filling and Capping Machine 3-In-1
Usage: The series equipment is used in production of polyester bottle-packing carbonated drink, such as Coca cola, Pepsi-cola, Sprite drink etc.
Characteristics: It can carry out washing bottle, filling and capping in one machine. The whole machine designing is reasonable. The appearance is beautiful and the maintenance is convenient. It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more easy. The main machine adopts advanced PLC control technology. The key electric elements are adopt international famous products.
Main technical parameter:
| Model | DCGF16-12-6 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | |
| Production capacity(500ml b/h) | 2000-3000 | 3000-4000 | 4000-6000 | 6000-8000 | |
| Filling precision | <5mm(liquid level) | ||||
| Filling pressure (MPa) | <0.4 | ||||
| Gathers the fat bottle specification(mm) | bottle diameter:50-100 height:150-310mm | ||||
| suitable cap shape | Plastic screw cap | ||||
| Total power(kw) | 1.2 | 3.75 | 5.6 | 6.2 | |
| Weight(kg) | 2500 | 3500 | 4500 | 6000 | |
| Overall dimensions(mm) | 2250*1700*2300 | 2400*1960*2300 | 3010*2180*2400 | 4000*2250*2500 | |
