Commercial Kitchen Oil Mist Collector PSG- Unmatched Design And Technical Skill

Specifications

SMOG-HOG®     KITCHEN AIRE VENTILATOR SYSTEM

Eliminate smoke and odors caused by kitchen emissions with Smog-Hog PSG air cleaning systems. Smog-Hog, a well-known name in the commercial kitchen exhaust and air cleaning industry, uses electrostatic precipitator (ESP) technology to remove grease and odors from cooking processes for cleaner air. So, there is no need for costly filter replacements—just routine service cleanings are required.

Commercial kitchen hood systems  are customized, and can be installed within an existing structure as well as specified with new construction. Additionally, Smog-Hog can be programmed into a building maintenance system to operate and self-clean as required by business operations.

Kitchen Exhaust Application

Solutions For:

• Multi-story Structures • Environmental Standards • Code Compliance • Limited Space Available • Multi-Restaurant Applications

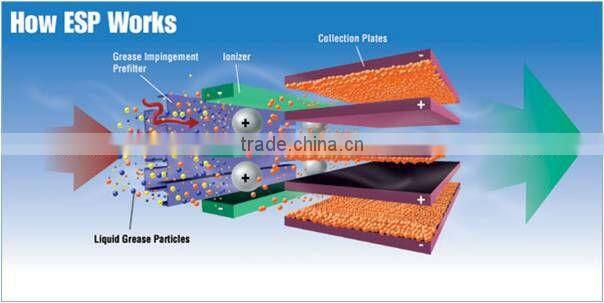

How do Electrostatic Work?

Electrostatic precipitation technology (ESP) is the key to the superior performance of the Smog-Hog. Unlike bag or box filters that remove only the largest particles, ESP electrically charges even microscopic contaminants, then captures them magnetically in an aluminum collection cell.As a result, this sophisticated electronic solution leaves virtually no grease or hazardous particle untouched, releasing only clean air from the system. UAS‘ ESP technology ensures constant airflow, unlike barrier filters that can plug and become ineffective.

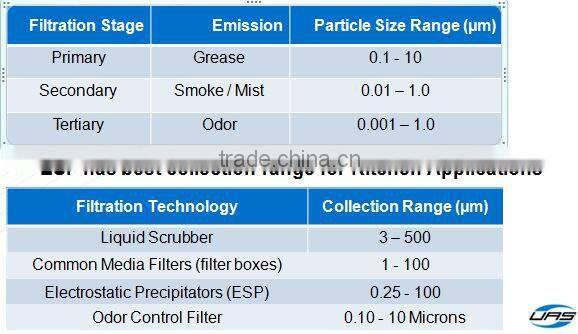

Kitchen Emission Compsition

Smog-Hog technology advantages to other technologies:

• Constant airflow unlike barrier filters that can plug
• High potential force field with wide (¼") plate spacing. No build-up of pressure drop
• Advanced solid-state circuitry self-regulating power supply – continual high efficiency levels
• Advanced insulator designs – extends time between required unit cleaning
• Excellent efficiency on all particle sizes at a minimum static pressure drop and energy cost.

Why Customers Choose to Filter Exhaust Air:

Architectural Freedom

• Locate restaurants wherever you want
• No need for roof access and long duct runs

Economic Benefit

• Working with existing facilities
• Minimum ducting is required
• Ongoing operating and maintenance costs are significantly reduced
• Rented space
• Covenants & restrictions
• Building owners
• Duct Cleaning

Neighbors

• High-rise condos
• Residential district
• Neighborhood associations
• High-end casinos / entertainment facilities / Disney

Compliance

• Municipal / regional regulations
• Building codes / fire codes

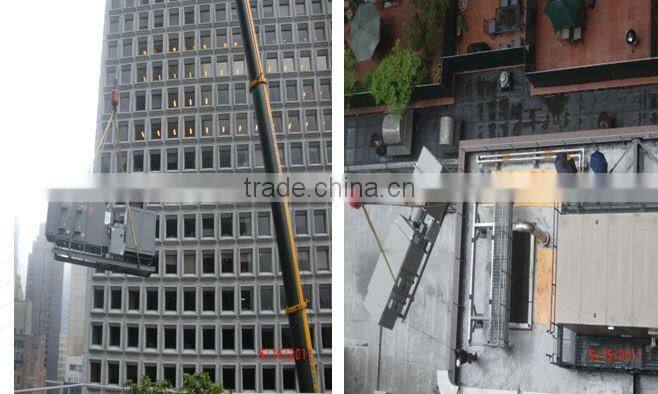

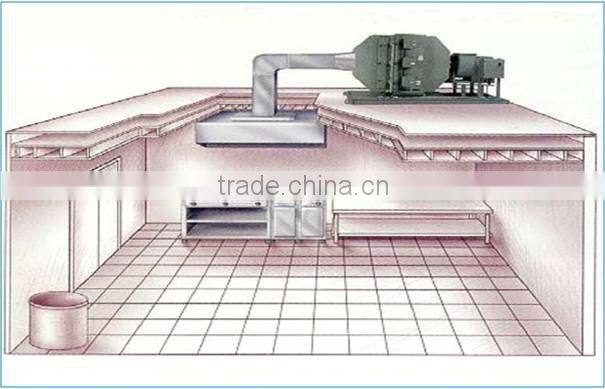

More Architectural Freedom Our wide selection of configurations and sizes, ranging from 825–22,000 CFM,is ideal for virtually any building design parameter and performance requirement.So regardless of kitchen hood size, our emission control systems provide for the ultimate flexibility in location. Feel free to mount our systems through exterior walls, on top of buildings, inside mechanical rooms or above the ceiling.

Location Placement Considerations

• Flexible design built in modules to fit the space available
• May be specified or retrofit into an existing building
• Ideal for multi-story structures, high-rise building, food courts, hotels, entertainment complexes, etc.

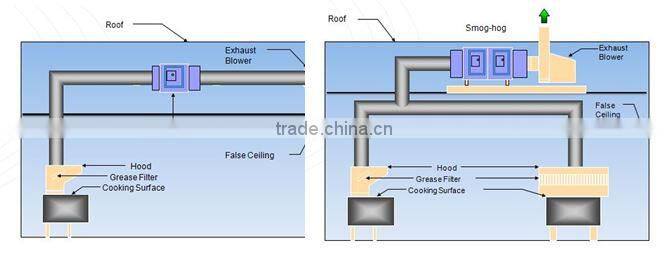

Mounting Options:

• In-Duct
• End-Of-Duct
• Enclosure

 Smog-Hog PSG Listings and Approvals

Unsurpassed Collection Technology It’s not just the ESP technology that provides superior cleaning. Unlike competitive ESP cells, UAS’ collection cell plates are aligned more closely to improve collection efficiency. For routine maintenance, the PSG’s 40 lb. collection cells are much easier to handle than competitive cells that weigh 80 lbs. or more!

Reliable Power Only UAS includes a self-regulating power pack. This provides continually high collection-efficiency over a variable range of cooking conditions. In the unlikely event of a power pack failure, UAS alsoprovides multiple power packs so that the entire system need not be shut down.

Accessories / Options • Custom control panels • Custom paint colors • Factory start-up/orientation • Fire suppression system • Inlet plenum with grease impingement prefilter • In-place cleaning systems • Insulated weather enclosure • Motor starter • Odor control modules • Outlet transition plenum • Prefilter options • Remote start /stop control panel • ETL agency-approved

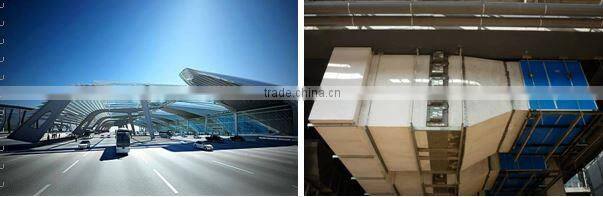

Global Reference:

   Kuala Lumpur International Airport 2
