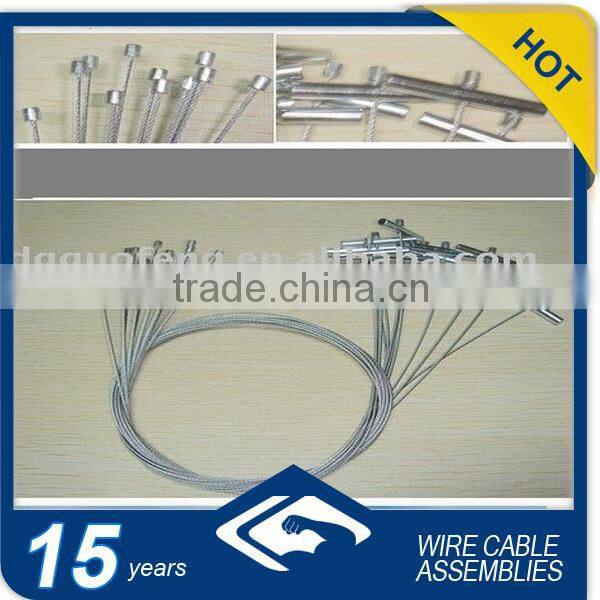

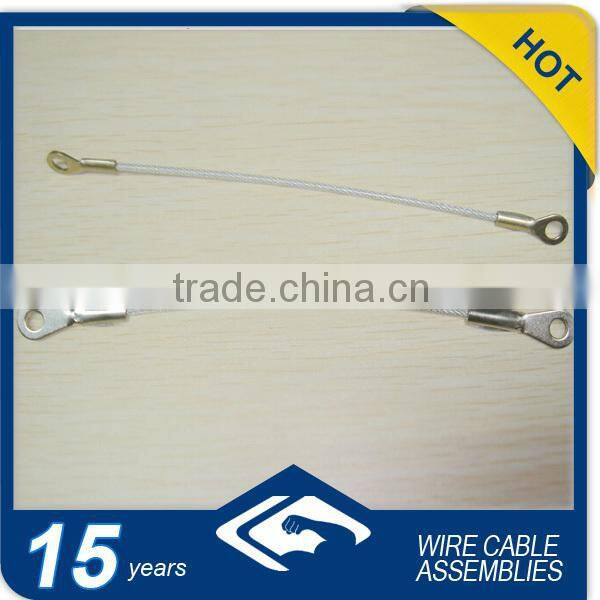

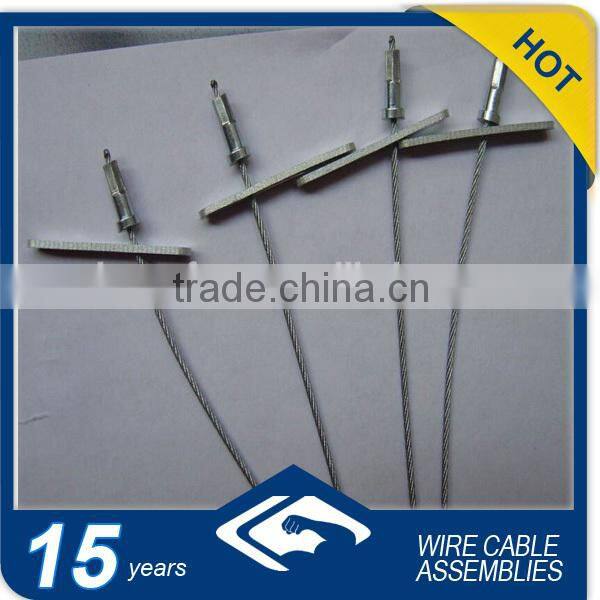

Wire Rope for Fitness/sports/medical Equipment

1.Diameter

0.3-11mmmm

Custom-made available

nstruction

7X7,etc

3.material

stainless steel or galvanized steel or other

4.MOQ

500pcs

PVC,PU,PE,nylon,etc

8.end parts of fittings

a large selection of end fittings,including eye bolts,links,springs,hooks,thimble,clips,stops,ball ,ball shanks ,sleeve ,stamped eye,handles,etc

9.Lead  time

7days if there were enough material in stock

10.sample

Free sample available if  all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution.

application

Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window , Lawn & Garden

Etc. When designing a cable assembly, a number of factors need to be considered such as,  work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be.

WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings

specification

Refer to the drawing as below:

All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.

Diameter

construction

weight(100m)

  Minimum Breaking load(N)

1.0mm

  1*19

 0.495

     950(95kg)

    7*7

 0.393

     650 (65kg)

 1.2mm

    1*19

0.713

   1440(144kg)

    7*7

 0.566

    950(95kg)

 1.5mm

    1*19

 1.114

   2200(220kg)

    7*7

 0.884

   1500(150kg)

 1.8mm

    1*19

 1.604

   3200(320kg)

    7*7

 1.273

   2100(210kg)

 2.0mm

    1*19

 1.98

   3900(390kg)

    7*7

 1.527

   2650(265kg)

 2.4mm

    1*19

 2.851

   5650(565kg)

    7*7

 2.264

   3800(380)kg

2.5mm

    1*19

 3.094

   6100(610kg)

    7*7

 2.381

   4100(410kg)

 3.2mm

    7*7

 4.024

   6850(685kg)

   7*19

 3.901

   6800(680kg)

3.8mm

   7*19

 5.675

   9650(965kg)

    7*7

 5.502

   9600(960kg)

4.0mm

   7*19

6.609

  12500(1250kg)

4.2mm

   7*7

6.933

  13000(1300kg)

4.5mm

   7*7

7.958

  13500(1350kg)

4.8mm

   7*19

8.778

  15300(1530kg)

6.0mm

   7*19

8.716

  23900(2390kg)
