Home > Products > cable with coating > PVC Coated Wire Cable With Hook and Carabiner

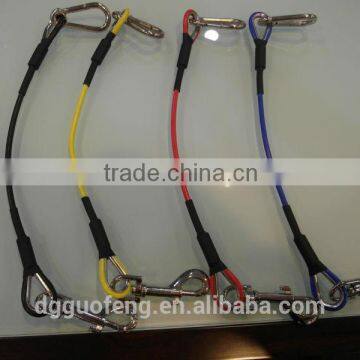

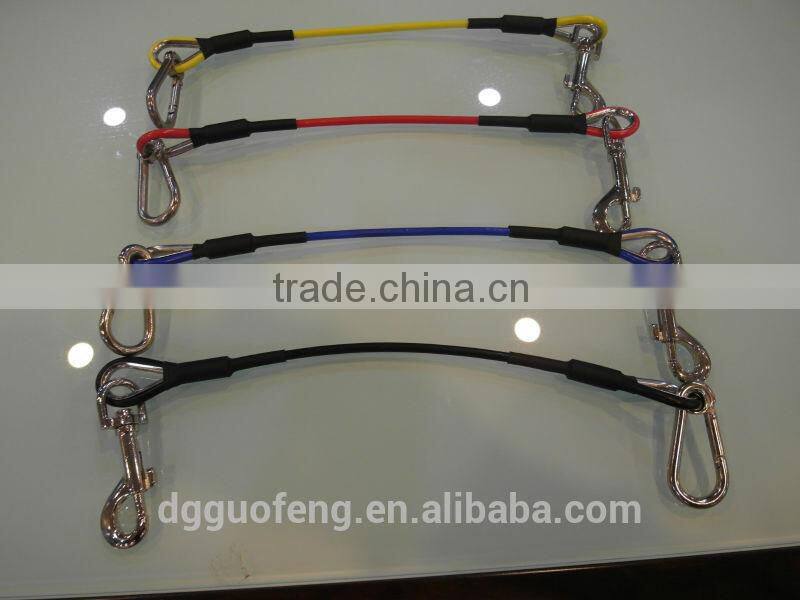

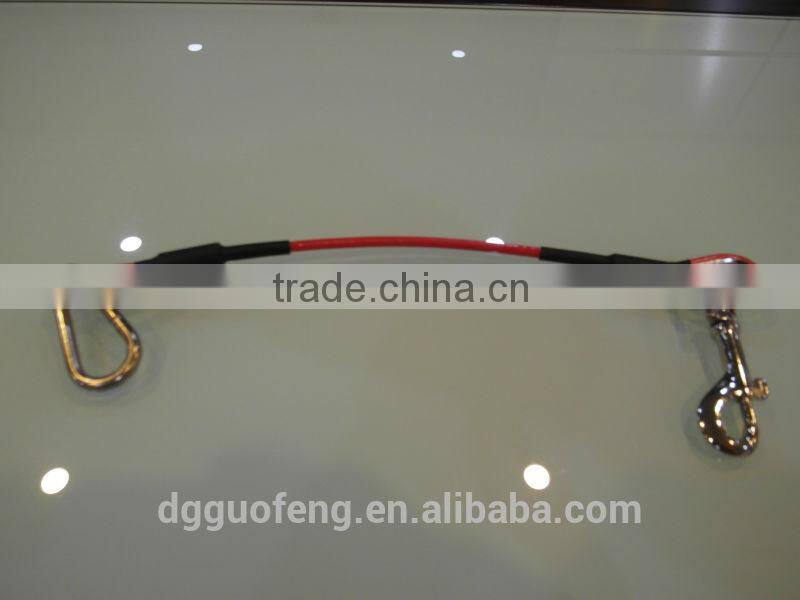

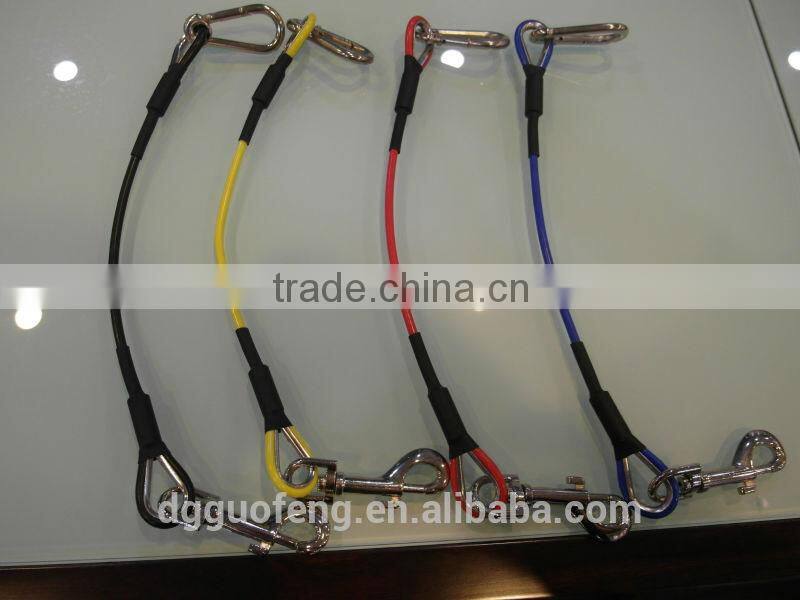

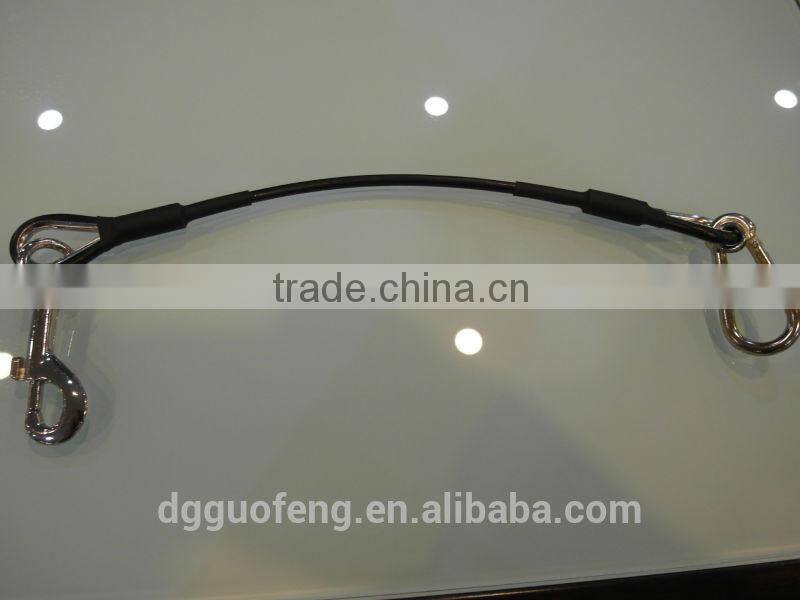

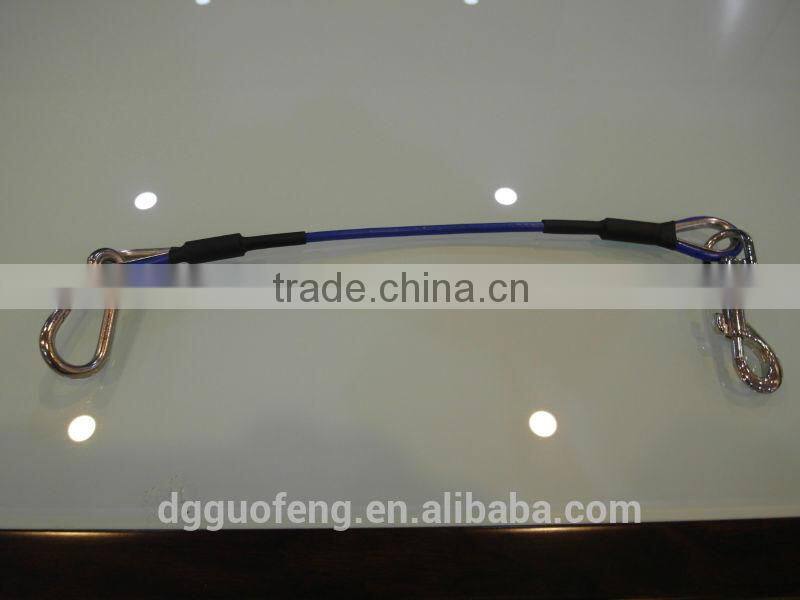

PVC Coated Wire Cable With Hook and Carabiner
- shenzhen
You May Like
Product Details
| Steel Grade | glavanized steel,stainless steel | Standard | AISI | |
| Wire Gauge | 3.2mm | Place of Origin | Guangdong, China | |
| Type | Other, Galvanized, nylon coated wire rope | Application | Manufacturing | |
| Alloy Or Not | Non-alloy | Special Use | Cold Heading Steel | |
| Model Number | plastic coated wire rope | Brand Name | OEM |
Product Description
Specifications
Plastic coated wire rope, PVC coated wire cable 0.6mm-15mm, 1x7, 7x7. custom-made availablesmall quantity available
| 1.Diameter | 3.2mm | Custom-made available |
| nstruction | 1*7,7X7,7*19,1*19,etc | |
| 3.material | Galvanized , stainless steel | |
| 4.MOQ | 500pcs | |
| ating of material | nylon or as requirement | |
| ating color | red ,yellow or as requirement | |
| 7.end parts of fittings | can be eyelet,hook,carabiner or as requirement | |
| 8.Lead time | 7days if there were enough material in stock | |
| 9.sample | Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. | |
| application | Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window , Lawn & Garden Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be. WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings | |
| specification | Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.
 | |
| Diameter | construction | weight(100m) | Minimum Breaking load(N) |
| 1.0mm | 1*19 | 0.495 | 950(95kg) |
| 7*7 | 0.393 | 650 (65kg) | |
| 1.2mm | 1*19 | 0.713 | 1440(144kg) |
| 7*7 | 0.566 | 950(95kg) | |
| 1.5mm | 1*19 | 1.114 | 2200(220kg) |
| 7*7 | 0.884 | 1500(150kg) | |
| 1.8mm | 1*19 | 1.604 | 3200(320kg) |
| 7*7 | 1.273 | 2100(210kg) | |
| 2.0mm | 1*19 | 1.98 | 3900(390kg) |
| 7*7 | 1.527 | 2650(265kg) | |
| 2.4mm | 1*19 | 2.851 | 5650(565kg) |
| 7*7 | 2.264 | 3800(380)kg | |
| 2.5mm | 1*19 | 3.094 | 6100(610kg) |
| 7*7 | 2.381 | 4100(410kg) | |
| 3.2mm | 7*7 | 4.024 | 6850(685kg) |
| 7*19 | 3.901 | 6800(680kg) | |
| 3.8mm | 7*19 | 5.675 | 9650(965kg) |
| 7*7 | 5.502 | 960 0(960kg) | |
| 4.0mm | 7*19 | 6.609 | 12500(1250kg) |
| 4.2mm | 7*7 | 6.933 | 13000(1300kg) |
| 4.5mm | 7*7 | 7.958 | 13500(1350kg) |
| 4.8mm | 7*19 | 8.778 | 15300(1530kg) |
| 6.0mm | 7*19 | 8.716 | 23900(2390kg) |


| package details:reel, bag, plywood case, carton, packed in rolls, cable reel or as customer requirement delievery:15 days after samples are approve |  |
| 15years experience High-efficient service Direct manufacture OEM ,custom-made available Free sample available High quality We supply our customer with custom designed fittings and terminal as per their specification.
 |  |
| pany profile: Dongguan City Guofeng Sports Equipment Fitting Co., Ltd is a professional wire assembly manufacture focus on research, development and selling. We can meet our customers' requirements by excellent R&D capability,advanced processing and testing equipment. Products are mainly used in vehicle internal brakes, stalls, car rearview mirror, fuel pedal, mechanical and electronic drive control system settings. In addition, also be used for general industrial, for supporting, dragging and dropping hoists.
 2.trade&market: Main market: Oceania Western Europe Eastern Europe Eastern Asia South America North America Southeast Asia 3.Export percentage: 51% - 60% 4.factory information: factory size:5000.00 square meters staff number:100-300people location: the first floor, D Building,NO.10Road. Longyan Industrial Zone, Humen Town, Dongguan City, Guangdong Province, China production lines:3 lines R&D:5-10people QC:5-10people 5.certification |


   |
|
 Of course ,we have to know your application firstly and a number of factors have to be considered, such as work load, safety abrasion, environment ,cycle life, flexibility, , cost, When we design the steel wire cable assembly.
 General ,use a 5 to 1 or 3 to 1 safety factor when we design it, example :breaking load is (1000N) 100kg ,safety factor is 5:1 (200N) Breaking strength should never be considered the rope's working load. 3.I would get a flexible cable assembly ,how do I choose? In same diameter of steel wire cable ,the 7X19 construction is more flexible than the 7X7 construction. Example:1/16’’7X19 steel wire rope more flexible than 1/16’’7X7 4.Which material should I choose? Stainless steel cable is more corrosion ,but it is expensive than galvanized steel cable and has a slightly less tensile strength. If it is use for general industry ,galvanized steel is ok, if it is use for marine environment ,I recommend in stainless steel wire cable . depend on you application. 5.What’s the lead time of my order It was largely depend on the size of your order .normally ,15days . if you are in urgent need of it ,we will try my best to met your requirement. If you have any questions else ,please feel free to contact us.
 |




 |
