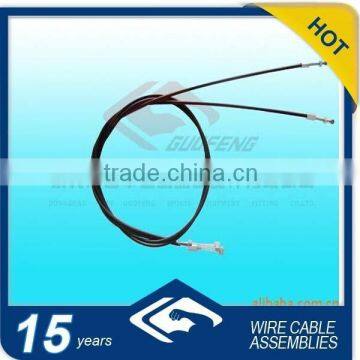

Wheelchair Control Cable

FOB Price

Negotiable / Set

1000 Sets(Min. Order)

Port shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Guofeng
Model Number	GF-A022	Application	Other, bicycle,wheel chair,pushcart,vehicle
Conductor Material	Aluminum	Jacket	PVC
Insulation Material	PE

Product Description

Specifications

wheelchair control cable could be custom,high R&D capability,advanced management,competitive price,prompt delivery,good service

Product Description

1.steel wire diameter	1.0mm-4.0mm	Custom-made available
outer casing diameter	3.0mm-8.0mm
nstruction	PVC/PU outer cable+steel cable+PE cable
3.material of steel cable	Galvanized or stainless steel
4.MOQ	500pcs or 1000meter
5.Material of fitting(hook)	Brass or Aluminum
6.Lead time	20 days as usually
7.sample	Free sample available if all of dimensions same as our existing one ,contact me to get a cost efficient solution.
application	Lighting , Machinery, Medical, Security, Sporting Goods, Toys, Window , Lawn & Garden Etc. When designing a cable assembly, a number of factors need to be considered such as, work load, abrasion, cycle life, and flexibility, environment, cost, safety .etc. the larger the diameter ,the greater the work load capacity and the less flexible it will be. WARNING :Breaking strength should never be considered the rope's working load ,safety factor 5:1 ,Coating must be removed from installation area when attaching fittings
specification	Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.

how to choose material:1stain1.1.1.

1.stainless steel :

providing good corrosion resistance and strength comparable to galvanized carbon steel grades.

2.galvanized steel:

Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.

Diameter	construction	weight(100m)	Minimum Breaking load(N)
1.0mm	1*19	0.495	950(95kg)
	7*7	0.393	650 (65kg)
1.2mm	1*19	0.713	1440(144kg)
	7*7	0.566	950(95kg)
1.5mm	1*19	1.114	2200(220kg)
	7*7	0.884	1500(150kg)
1.8mm	1*19	1.604	3200(320kg)
	7*7	1.273	2100(210kg)
2.0mm	1*19	1.98	3900(390kg)
	7*7	1.527	2650(265kg)
2.4mm	1*19	2.851	5650(565kg)
	7*7	2.264	3800(380)kg
2.5mm	1*19	3.094	6100(610kg)
	7*7	2.381	4100(410kg)
3.2mm	7*7	4.024	6850(685kg)
	7*19	3.901	6800(680kg)
3.8mm	7*19	5.675	9650(965kg)
	7*7	5.502	9600(960kg)
4.0mm	7*19	6.609	12500(1250kg)
4.2mm	7*7	6.933	13000(1300kg)
4.5mm	7*7	7.958	13500(1350kg)
4.8mm	7*19	8.778	15300(1530kg)
6.0mm	7*19	8.716	23900(2390kg)
