30x70 5V 30mA epoxy resin solar panel
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SUNSUN | |
| Model Number | SS | Material | Monocrystalline Silicon | |
| Size | 30x70 | Number of Cells | 10 | |
| Max. Power | 0.15 |
Product Description

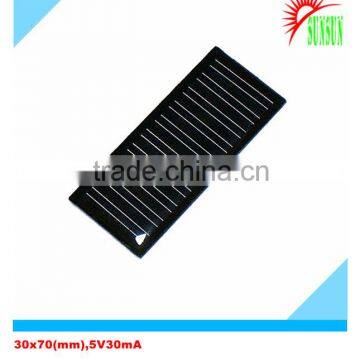

30x70 5V 30mA epoxy resin solar panel
High module conversion efficiency
(up to 16%), through superior cell technology and
leading manufacturing capability
Positive tolerance
Guaranteed tolerance from ±3% ensures
power output reliability
Excellent weak light performance
Excellent performance under low light environments
(mornings, evenings, and cloudy days)
Withstand high wind and snow loads
Entire module certified to withstand high wind loads
(2400 Pascal) and snow loads (5400 Pascal) *
We can customize mini solar panel voltage,output current,dimension base on customers' requirement.
Model | SS-M0.15WP |
Optimum Operating Voltage (Vmp) | 5.00 V |
Optimum Operating Current (Imp) | 30 mA |
Open - Circuit Voltage (Voc) | 6.00 V |
Short - Circuit Current (Isc) | 31 mA |
Maximum Power at STC (Pmax) | 0.15 W |
Cell Efficiency | 17.5% |
Operating Module Temperature | -40 °C to +85 °C |
Maximum System Voltage | 1000 V DC (IEC) / 600 V DC (UL) |
Maximum Series Fuse Rating | 20 A |
Power Tolerance | ±3 % |
Solar Cell | Mono-crystalline |
No. of Cells | 10 |
Dimensions | 30x70x3(mm) |
Weight | 0.01 kgs |
Front Glass | Epoxy resin |
Frame | No |
Junction Box | No |
Output Cables | TUV (2Pfg1169:2007), UL 4703, UL 44 |
Optional
| |
Connectors | Optional
|
Solar lights;
Solar Chargers for Mobile Phones;
Small solar systems.
Paper box;Wooden carton;Pallet
OEM Available;
System configuration service;
Technical support.
SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.
PLEASE CONTACT US FOR MORE PRODUCT DETAILS!
