Home > Products > Concrete Mixing Plant > 60m3-150m3/h Belt Conveyor Batch Plant Concrete
60m3-150m3/h Belt Conveyor Batch Plant Concrete
- The main port of China
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | Dayu | |
| Model Number | 60m3-150m3/h | Power(W) | 105kw-260kw | |
| Certification | CE,GOST,ISO | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
60-150m3/h belt conveyor batch plant concreteISO,CE,GOST
22 years producing experience
12 months warranty
Train your staff

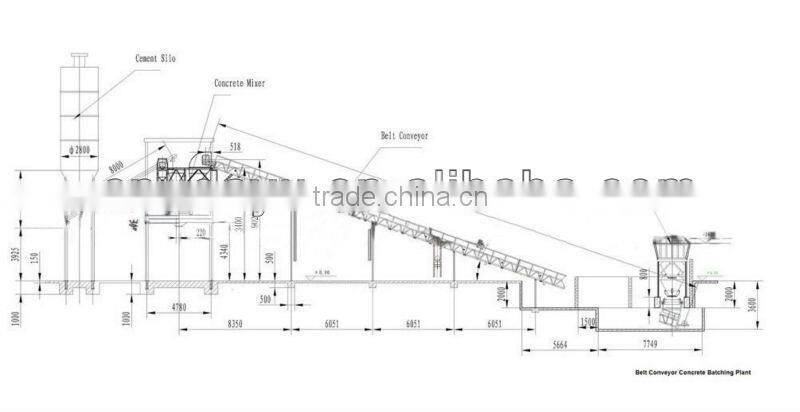

60m3-150m3/h belt conveyor batch plant concrete
About us:
As top10 batch plant concrete manufacturer of China,Zhengzhou Dayu Machinery Co.,Ltd. established in 1992 and has been engaged in batch plant concrete producing for 22 years.
Dayu company business scope:
Stationary Asphalt Mixer Plant:
LB series:40t/h--400t/h.(Batch Mix Type) DHB series:20t/h--100t/h.(Drum Mix Type)
Mobile Asphalt Mixer Plant:
MDHB series:20t/h--100t/h.(Drum Mix Type) SLB series:8t/h--30t/h.(Drum Mix Type)
QLB series:10t/h--80t/h.(Batch Mix Type)
Concrete Batch Plant:
Stationary concrete batch plant:HZS series from 25m3/h--150m3/h.
Mobile concrete batch plant:YHZS series from 40m3/h--80m3/h.



Product Itroduction:
The belt conveyor batch plant concrete is the optimal equipment of large and medium construction sites ,water power,highway,harbor,bridge,airport,large precast products plant and comercial concrete plants and so on.
Main Features of Belt Conveyor Batch Plant Concrete
1.The driving system of the belt conveyor batch plant concrete adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed.
2. Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
3. Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
4. Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable.
5. PC+PLC control system ensures the high reliability.
6. With its virtue of precise computation, the belt conveyor concrete mixing plant can meet the requirement of every high performance concrete.
Technical Parameters of Belt Conveyor Batch Plant Concrete
Entire Plant  | Type  | HZS60  | HZS90  | HZS120  | HZS150  |
Capacity (m3/h)  | 60  | 90  | 120  | 150  | |
Standard Discharging Height(mm)  | 3800  | 3800  | 4000  | 4000  | |
Operation Cycle Time(s)  | 60  | 60  | 60  | 60  | |
Max Aggregate Size(mm)  | 60/80  | 60/80  | 60/80  | 60/80  | |
Total Installed Power(kw)  | 105  | 145  | 210  | 260  | |
Total Weight (T)  | 50  | 60  | 80  | 100  | |
Size(m)  | 28.5x10.6x18.8  | 58.6x12.4x18.8  | 60.2x13.7x18.8  | 43.6x24.0x18.8  | |
Mixing System  | Mixer  | JS1000  | JS1500  | JS2000  | JS3000  |
Mixing Motor(kw)  | 2x18.5  | 2x30  | 2x37  | 2x55  | |
Batching System  | Batching Machine  | PLD1600  | PLD2400  | PLD3200  | PLD4800  |
Capacity of Storage Hopper(m3)  | 4x5  | 4x10  | 4x18  | 4x25  | |
Weight System  | Aggregate Weighing Precision(%  | ±2  | ±2  | ±2  | ±2  |
Cement Weighing Precision(%)  | ±1  | ±1  | ±1  | ±1  | |
Water Weighing Precision(%)  | ±1  | ±1  | ±1  | ±1  | |
Additive weighing Precision(%)  | ±1  | ±1  | ±1  | ±1  |

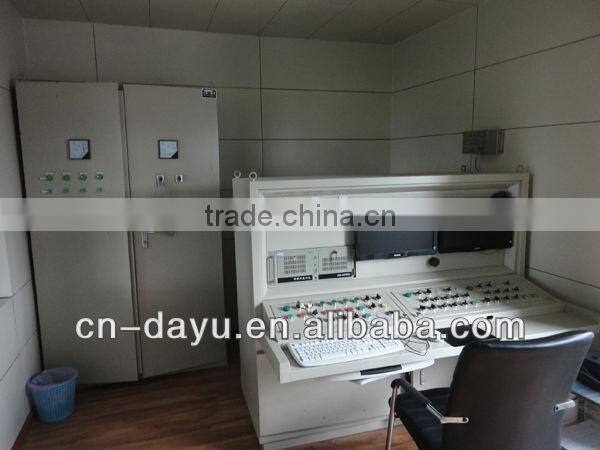

Contol panel of the plant

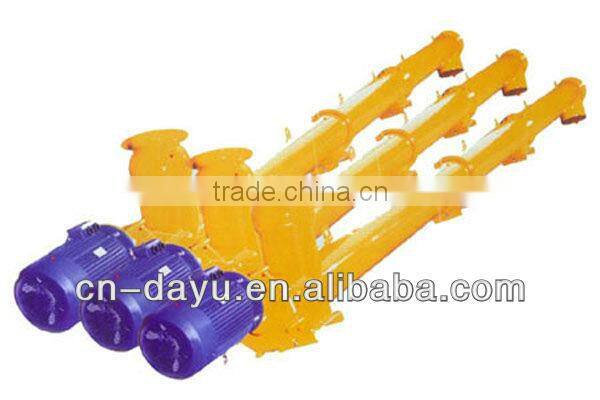

Screw conveyor

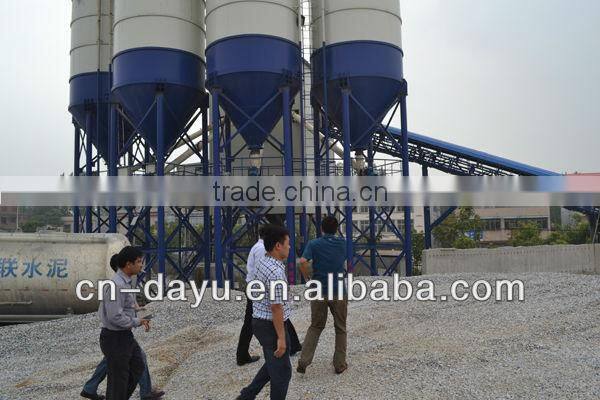

Customer visit picture

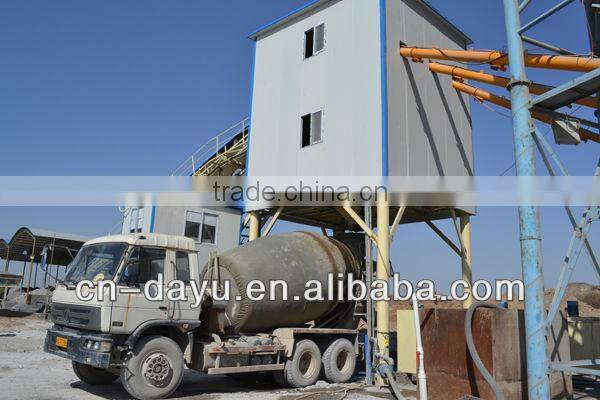

Working site
Our certificates
Rose Jia/Export Dept.
Zhengzhou Dayu Machinery Co.,Ltd.
Mobile: +86-13673658622
Tel: +86-371-55635088 Fax: +86-371-55635099
E-mail: rose@dayucn.biz Skype: dayu.rose
Web: www.dayu-concrete.com
Add: No.18 Dongfeng Road,Zhengzhou,Henan,China
