Coal Burner for Asphalt Plant From China Top 1 Manufacturer

Specifications

Introduction:

RM pulverized coal burner with a specially designed multi-stage air-driven structure to speak out of turn, can produce in a short time so that high-temperature pulverized coal swirl with burning completely, heat utilization high, smoke dust, efficient energy saving, improvement of working conditions, reducing labor intensity, etc.,RM pulverized coal burners are ideal for energy saving and environmental protection products.

Features:

1. Adopt innovative design structure, no visible stack emmissions

2. High flame temperature, compact flame shape, energy saving;

3. Adopt high performance refractory brick, prolong service life;

4. 24 hours continuous production, no need do slag removal work everyday;

5. Low production cost, which is only about 1/5 of the oil burner .

6. Coal Burner suppliers for other chinese famous brand boilers and asphalt plant.

Requirements of fuel

1. Use 0 # diesel for oil burning igniter

2. Requirements for the quality of coal using for burning:

   1) Mark of coal: bituminous coal

   2) Calorific value: ≥25kJ

     - gross calorific value 7000 kcal/kg

     - net calorific value 5000 kcal/kg

   3) Yield of volatile matter: ≥25%

   4) Permissible ash 8~10%

   5) Total moisture 3~4%

   6) Total sulphur ≤1%

   7) Particle size: ≤20mm

Note: These indexes are the lowest requirements for the coal, the better coal will be better at practice.

3. Environment friendly:

  Combustion completeness ≥95%,

  Air black: Ringelmann 0-I grade, no harm to environment

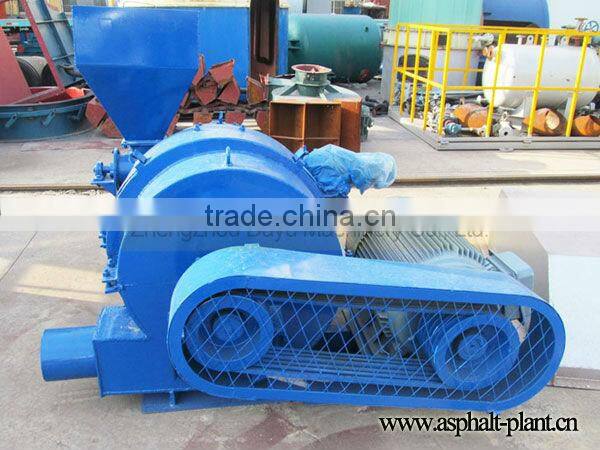

FMJ series coal crusher

used for producing and supplying coal powder for coal burner.

Powder particle size: R90<20% (0.09mm)

General parameters------ Coal Burner for Asphalt Plant :

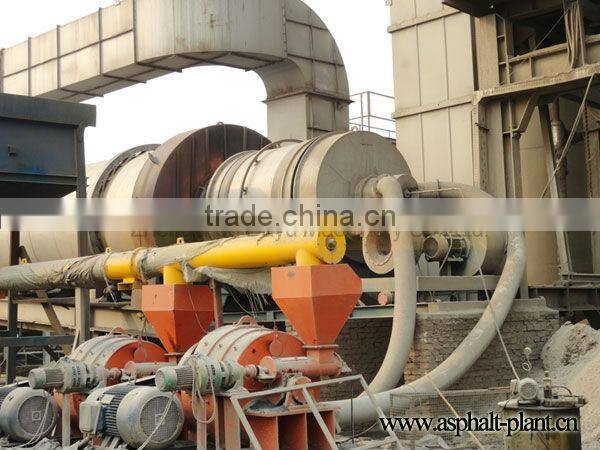

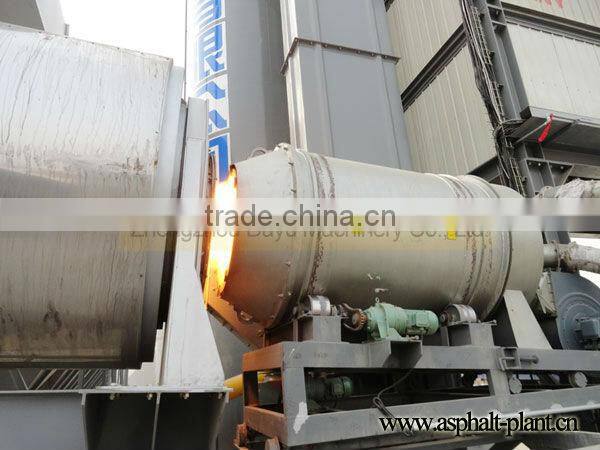

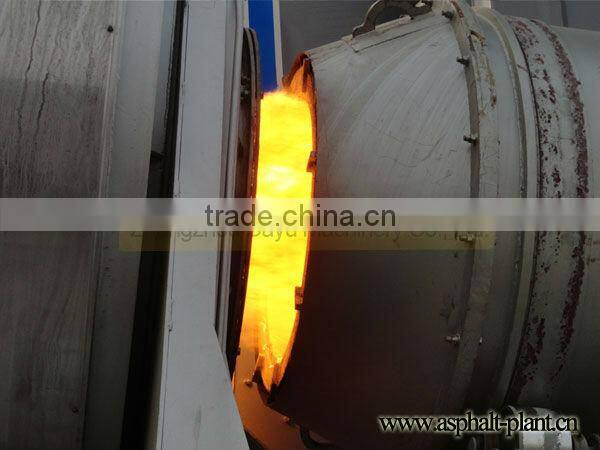

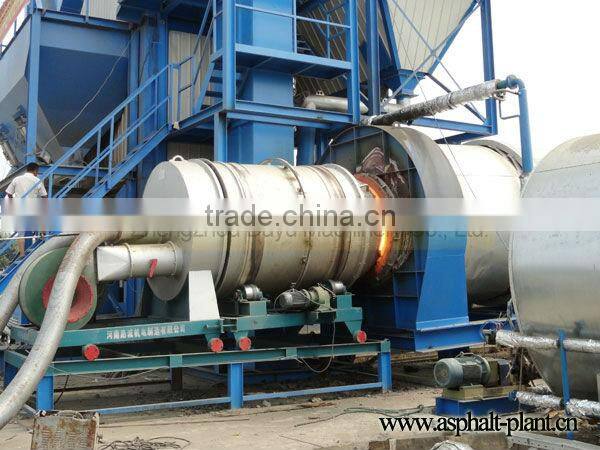

Pictures----- Coal Burner for Asphalt Plant :
