Continuous Asphalt Mixing Plant For Sale

Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for  Continuous Asphalt Mixing Plant For Sale over 20 years.

 The Components of  Continuous Asphalt Mixing Plant For Sale including Four Bin Feeder, Vibrating Screen System, Slinger Conveyor, Dryer Drum, Bitumen Tanks, Multicylone Exhaust, Load Out Conveyor, Mineral Filler, Control Cabin and Ldo Tank, which can working with good quality and high efficiency.

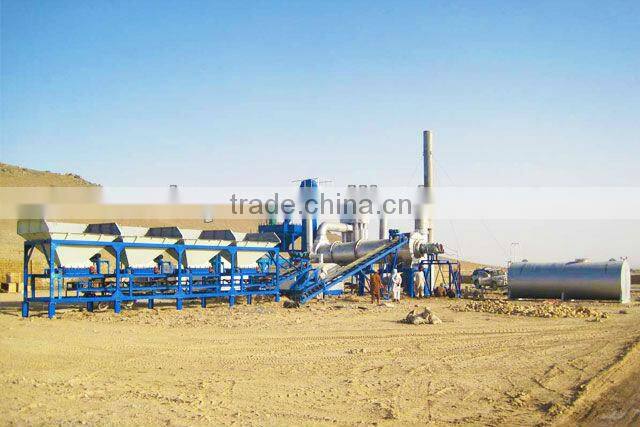

Integrated drying, heating and mixing in the whole part. DHB series Continuous Asphalt Mixing Plant can continuously produce asphalt mixture. Simple structure, reliable working, flexible moving and convenient maintenance.

Main Parameters of Continuous Asphalt Mixing Plant For Sale DHB Series

 Main Structure of  Continuous Asphalt Mixing Plant For Sale DHB Series

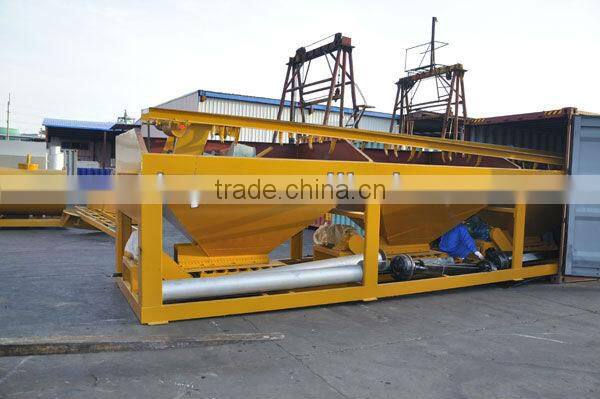

1 Cold aggregate supply system (mobile)

Components;Four aggregate belt feeders, a set of aggregate belt conveyer;
Specifications;Bin cubage; 4×4m3 ;The bin width;2.6m ;Loading height ;2.78m; Bin vibrator; 0.25kw;
Ring belt width;500mm; Motor power; 4×1.5kw(electromagnetic timing);
Aggregate belt width; 500mm; Motor power;4kw
Characteristic;Inside bin equipped with filtering net, the feeder motor adopts electromagnetic timing; convenient for transportation;

2 Middle filter

Type: Oblique flow automatically;
Characteristic; The middle filter has no vibration, little dust can overflow; avoid the waste material entering into the drying drum and elevator, reduce the heat loss, saving energy; Avoid big stone material jam.

3 Drying drum (mobile)

Components and specification;

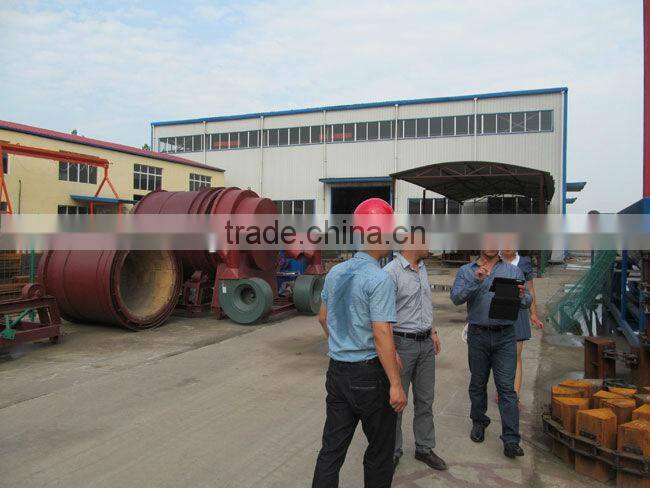

(1)Dryer drum
Drum diameter: 1.2m; Drum length;5m; Motor power;11kW
(2)Elevator:Single row of chain; Elevator motor power ; 5.5 kW
(3)Dust catcher:Double drum cyclone dust catcher
Motor power of wind drawing fan;7.5 kW
(4)Mixture storage silo:
Cubage: 2.5 M3, below part equipped with material inducing device; discharging outlet equipped with temperature sensor; the discharging door structure adopts hydraulic cylinder, hydraulic pump and so on; Motor power: 2.2kW. Mixture discharging height: 2.5 M
Characteristics:The drying drum is driven by gear-tooth joggle with reliable capability; elevator board chain material 40Cr, hanging hopper material is 65Mn.

4  Asphalt supply system

Components and specifications:;
One 10 M3 asphalt tank; one set of asphalt pump and one set of asphalt pipelines;
The wind drawing fan motor power;4kw;
Electromagnetism timing motor power: 2.2kW;
Characteristic;
The asphalt tank burning coal or firewood, using circle hot wind pipeline to heat the asphalt.

5 Electric control system

The figure dimension 2.2x2.2x2.5m; Copy container structure, the walls, door and windows are made of colorized steel plate. Pleasing shape, good seal; easy to hoist and transport.
Box type control cabinet, main electric parts are Zhengtai, Schneider, which has interlock and two-grade protection; On the operation panel equipped with manual operation device, digital indicator for main motor, mixture temperature, cold aggregate, fuel and asphalt.

Warranty Period ;18 months after install the plant
