Aluminium Sheet 1100 H18 With Good Quality
- Shanghai Qingdao
- T/T D/P D/A
You May Like
-
Aluminium Drilling Sheet 1100 H18 With Good Quality
-
Zhongzhou Hot Selling 6082 Aluminum Sheet
-
Quality Aluminium Sheet Foil PCB Made In China
-
Aluminium Sheet for Traffic Sign Transformer
-
Quality AluminumSheet Price Foil PCB for Drilling Entry 1100-H18 H19
-
pe or Pvdf Coated Acp\/acm Sheet \/acp Aluminum Composite Panel
Product Details
| Grade | 1000 Series | Temper | O-H112 | |
| Type | Other, sheet, foil | Application | PCB drilling entry | |
| Thickness | 0.14-0.2 | Width | 918-1244 | |
| Alloy Or Not | Non-alloy | Place of Origin | Henan, China | |
| Brand Name | HM | Model Number | 1100, 3003 |
Product Description
Specifications
aluminium sheet 1100 H181. No pits, no dents, no scratch, cleaned & degreased
2. Free sample available

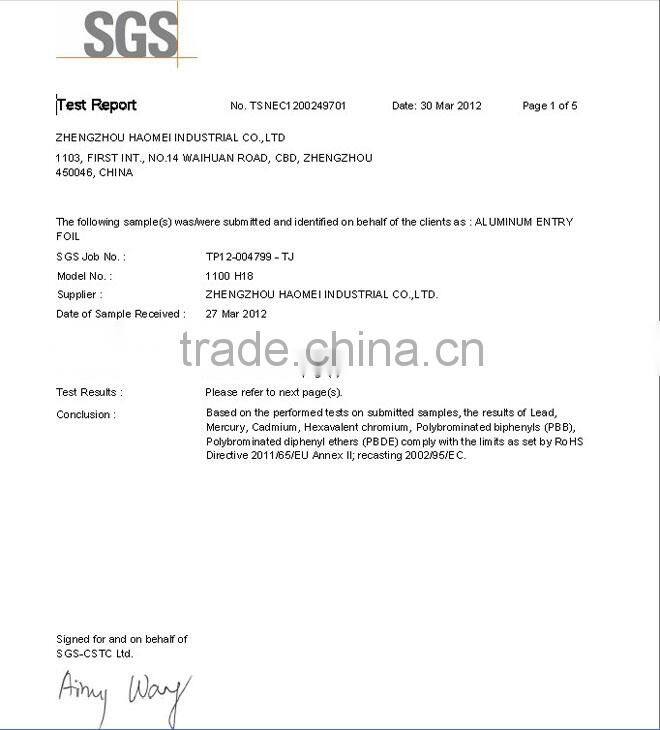

3. SGS audited
aluminium sheet 1100 H18
1. No pits, no dents, no scratch, cleaned & degreased
2. Free sample available
3. SGS audited
Alloy: 1100
Temper: H18
Thickness: 0.14--0.20mm
Width: 900-1250mm
Length: 1000-1400mm
Packing: Export standard, wooden pallet or wooden case;
Origin: China
Payment Terms: T/T, irrevocable L/C at sight
Lead Time: 30 days after confirming order
Application: PCB drilling entry
Tolerance:
Thickness +/-0.005;
Width/Length +1/-0 (2mm is acceptable);
Squareness ≤2
aluminium sheet 1100 H18 | ||||||
Alloy | Temper | Specification(mm) | ||||
Thickness | Width | Length | Remarks | |||
1100 | H18 | 0.14-0.20 | 1244 | 1092 1041 940 | Produce various specifications according to customers' requirements | |
1220 | 1067 1016 914 | |||||
CHEMICAL COMPOSITION | |||||||||||||||||||
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Other | Al | ||||||||
each | total | ||||||||||||||||||
1100 | Si +Fe:0.95 | 0.05-0.20 | 0.2 | - | - | - | 0.1 | - | 0.05 | 0.15 | 99.0 | ||||||||
MECHANICAL PROPERTY | |||||||||||||||||||
Alloy | Temper | Thickness(mm) | U.T.S(Mpa) | Elongation(%) | |||||||||||||||
1100 | H18 | 0.14-0.20 | 170-190 | ≥2 | |||||||||||||||
TOLERANCE | |||||||||||||||||||
Thickness(mm) | Width(mm) | Length(mm) | Diagonal(mm) | ||||||||||||||||
±0.005mm | +1 -0 | +1 -0 | ≤2 | ||||||||||||||||
Packing of aluminium sheet 1100 H18
1. Haomei is specialized in aluminium product for more than 10 years.
2. Haomei would like to offer best service and help you company save costs.
3. All risk of orders is within Haomei account until you company has received products smoothly.
4. Upon receipt of your purchase order, production will be arranged immediately.
5. Quality: Haomei enjoys good reputation on quality among our regular clients; If any quality problem, Haomei will take full responsibility.
6. After-sales service time: Haomei does its best to serve customers the best that Haomei can.
