Home > Products > power transformer > 10kv SCB Series Epoxy Resin Cast 1000kva H Class Power Transformer
10kv SCB Series Epoxy Resin Cast 1000kva H Class Power Transformer
- SHANGHAI
- T/T
You May Like
-
SCB Series 1000kva H Class 10kv Epoxy Resin Transformer
-
SCB Series Epoxy Resin Cast H Class 10kv 1000kva Dry Type Transformer
-
10kv SCB Series H Class 1000kva Epoxy Resin Cast Transformer
-
SCB Series 10kv H Grade 1000kva Epoxy Resin Cast Insulation Dry Type Transformer
-
SCB Series 10KV Resin Casting 800KVA Dry Type Power Transformer
-
SCB10-800/10 Resin Casting 800kva Dry Power Transformer
Product Details
| Place of Origin | Jiangsu, China | Brand Name | WANSHI | |
| Model Number | SCB10-1000/10 | Usage | Power | |
| Phase | Three | Coil Structure | Toroidal |
Product Description

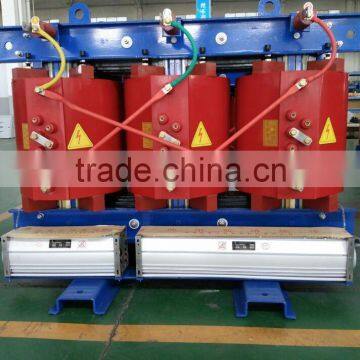

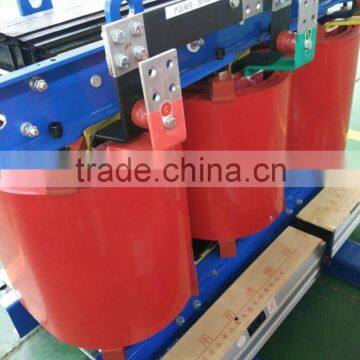

10kv SCB Series epoxy resin cast 1000kva H class power transformer
SCB10 series transformers are poured in vacuum condition by using enhanced fiberglass thin insulation resin, and it becomes a strong and solid wholesome piece when drying up. The dry type transformer has the following features: high mechanical strength, small partial discharge volume, fire resistant, blast proof, moisture proof, environment friendly, temperature change resistant, indehiscent, safety and reliable operation, small in size, light weight, easy installation, maintenance free. It is especially suitable in the following areas: power plant, high rise buildings, commercial center, theater, laboratory, oil drilling platform, ship, harbor, bus stations, airport, petrochemical plant, subway, mining pit etc.
10kv SCB Series epoxy resin cast 1000kva H class power transformer
H class power transformer, H grade power transformer
