High Power Grow Light Led Par Value Ppfd Lighting Use in Vertical Modules Plants

High power grow light led  par value ppfd lighting use in  vertical modules plants

                XQD  company  product  more kinds of  LED Grow light ,we also accept customized to the different needs of different plants depending on the wavelength spectrum required for LED plant growth lights for customers.

Who would use LED Grow Light?

  Suitable for plant growth, and to cultivate effective solution and soil cultivation. Suitable for indoor garden, potted plants, planting, breeding, farm, greenhouse cultivation, water soluble planting, flower planting, greenhouse cultivation, etc.

   LED Grow lights are the most efficient units of plants growing lights. It can provide better results than Metal Halide and HPS HID lights but saving 80% of energy. These work on soil or hydroponic methods of growing within any indoor environment. No setup required, just plug and play. Saving your time and money.

Principle:

Light environment plant growth and development is one of an important and indispensable factor in the physical environment, through light quality regulation,

control plant morphogenesis is an important technical facility cultivation areas.

Spectral range effects on plant physiology:

1. 280nm ~ 315nm influence on morphological and physiological processes is minimal

2. 315 nm ~ 420nm chlorophyll absorb less influence light cycle effect, prevent stem elongation

3. 420 nm ~ 500nm (Blue) chlorophyll and carotenoids absorb the largest proportion, the greatest impact on photosynthesis

4. 500 nm ~ 620nm pigment absorption rate is not high

5. 620nm ~ 750nm (red) chlorophyll absorption rate "high", has a significant influence on photosynthesis and photoperiod effect

6. 750nm ~ 1000nm absorption rate is low, stimulation of cell elongation, affect flowering and seed germination

7. > 1000nm converted into heat

Unique selling points:

1. Accept custom service

2. Professional ratio for plant growth.

3. More energy saving.

4.2- 3years factory warranty, professional guides to solve the problems

5. Provide customized solutions

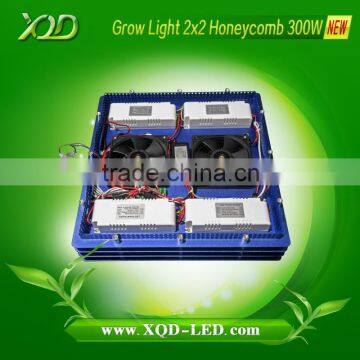

picture:

Design concept:

First, the cellular structure unique appearance, thermal performance and excellent shape structure combined

1. Multiangle honeycomb vents, to change the traditional structure installation, the lamp body decomposed into a network, so that further reduced the temperature difference between inside and outside lighting, can effectively export internal temperature, so as to achieve excellent cooling effect.

2. Using floor type structure design, installation and maintenance is very convenient, and greatly reduce the weight of the product, greatly reducing the transportation costs. Two, high humidity closed design Internal power supply, fan, LED and other energized parts are made protective measures to ensure that the product can work properly in a high humidity environment . Third, the high brightness 3WLED = brightness + energy saving performance + 700mA drive current 3WLED of the best, too large or too small can not let LED to play the best performance, and can greatly extend the light fades products.

Intelligent dimming control system

The luminaires with remote control, dimming, timing, temperature control, as well as intelligent system integration functions according to customer requirements. Through this system, users can choose from a variety of different light distribution programs to meet the needs of different stages of plant growth. In addition the system also with the customer to do some special features customized to meet the application requirements of different customers in different environments.

1. remote control, dimming, timer

The whole lamp can be remote controlled three- way, a value of 0% -100% brightness adjustment, brightness adjustment choose 1% or 10% brightness when the brightness level of plus or minus 10% plus or minus oneway to adjust the brightness of each channel can be set 8 the brightness of a period, set up after the system time, enter the timer mode, after reaching a predetermined timing period, the whole lamp will automatically become the timing preset with light,and will continue to cycle (see the remote setting mode user's Guide)

2. Temperature protection

When the lamp fails, such as when the fan is not working, the heat plate temperature exceeds 65 degrees, the temperature control system will intervene,the overall brightness down to 5% into the protected status (display will show T Err), when the temperature drops to 40 When, brightness will return to normal, and the display panel will return to the normal display. When the fault has not ruled out repeatedly into the protected status, in order to avoid more damage to the lamp.

3. Power protection

The lamp has an automatic memory function, after setting the mode of operation, such as sudden power failure, after power will be restored to working condition before. After the system time is set, in the case of lamps completely powered down, it can keep the internal clock runs continuously three months, the next power of work, a built-in super battery will be fully charged in 20S.

Products

1. Using high quality LED light source, the life of up to 50,000 hours.

2. Can replace 3-5 times the power of HPS, than traditional high pressure sodium and metal halide lamps can save 80% of energy.

3. High luminous efficiency, 90% emitted light can be absorbed by plants. But the traditional high pressure sodium and metal halide lamps, only 8-10% of the light effect.

4. Built-in cooling system, well solve the heat problem.

5. Input voltage AC100-240V, in line with worldwide grid voltage requirements. Built-in power supply, input AC mains can work

6. The light irradiation area will be a corresponding change according to different plants and environment, and the corresponding technical parameters will change.

7. Product All materials comply with RoHS environmental requirements.

8. The ratio between the different light can be customized according to customer requirements, we recommend the proportion is: 8: 1,7: 1: 1,7: 2, market common wavelength as follows: red: 620-630nm, blue : 460-470nm, orange light: 610- 615nm, you can choose red, mixed blue, orange, yellow, purple,

infrared, and white light is supplied to the growth needs of the plant. Red light promote plant germination, flowering, blue light promote plant growth, the user can choose more suitable wavelength and color ratio to promote plant growth.

Notes:

1. If not using lights, turn off the power to save energy.

2. Prohibition of the lamp is placed in water, or directly to the surface of the light water (such as rain),  otherwise it will damage the lamps, luminaires and cause leakage.

3. Scope lamps working environment must be provided, such as temperature -20-40 ℃, RH: 45% -95%.

4. Turn off the power when the thunder.

5. Do not beat the product when working product

Why Choose XQD LED Grow Light

We never say anything bad about others. We're just committed to be way better than them.

5-10 R&D advanced engineers :all of them have over10 years working experience in well-preformed in heating solutions for Powered LEDs. our LEDs can sustain the high power of reflow ovens.

High Efficiency, Energy Saving: Best choice for grow tent and medical plants.

Zener Protection: All LEDs with a zener to ensure one LED goes out the rest continue to operate.

Thermal Management: Quality aluminum heatsinks. Quickly dissipates heat for cool operating temperature.

Safe to Use: Plug with listed certificate. Safe to operate; no risk of fire, burns, or exploding bulbs.

Versatile: Power cord available in 100v, 220v and international plugs.

Long Lifespan :can work more than 50,000 hours usuallylit would be 6.8 years if you use 20 hours per day.

Just let XQD lights give the most love to your dearest plant!

Warranty:

All our products come with Full Factory waranty:

XQD warrants that our products are free of defects for a period of two to three years. We will repair or at our option replace any product that is defective. The warranty covers defects in workmanship and defective components.

It does not cover damage caused by abuse, moisture damage or water.
