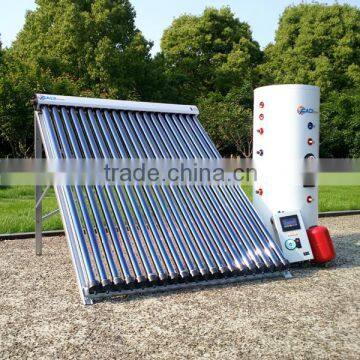

2016 China Famous Fadi Solar Water Heaters (Double Coiler 200Liter)
USD $932 - $960
/ Set
1 Set(Min.Order)
- SHANGHAI/NINGBO
- T/T L/C D/P D/A Credit Card
You May Like
-
Hey,Yes,We Are Fadi Solar Water Heater (100Liter)
-
2015 New Style Double Coiler 300 Liter Pressured Solar Water Heater
-
Household Solar Water Heater System from Haining (150Liter)
-
EN12975 and SRCC Certificated Separate Pressurized Solar Water Heaters (250Liter)
-
2016 New Style European EN12975 and SRCC Certified Water Solar Heater (Double Coiler 150L)
-
EN12975 and SRCC Certificated Heat Pipe Solar Water Heaters (Double Coiler 500Liter)
Product Details
| Type | Evacuated Tube | Pressure | Pressurized | |
| Circulation Type | Indirect / Closed Loop (Active) | Heating System | Thermosyphon (Passive) | |
| Connection Type | Split | Installation | Freestanding | |
| Housing Material | Other, Color Steel | Certification | CE, Other, CE, SRCC,Keymark | |
| Capacity | 200 | Place of Origin | Zhejiang, China | |
| Brand Name | solar water heater,OEM,FADI | Model Number | FD-SP2-200 |
Product Description
Solar Water Heaters
Model: FD-SP2-200
Solar water heaters features
1. The upright tank can make the water temperature to a high level. It can hot the water instantly
2. The tank inside the building, the hot water loses less energy than the normal one
3. The solar collector and the tank of solar water heater is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming
1. The upright tank can make the water temperature to a high level. It can hot the water instantly
2. The tank inside the building, the hot water loses less energy than the normal one
3. The solar collector and the tank of solar water heater is separated, that makes the system combine with the building perfectly, which will reduce the sightseeing for the building and environment around
4. Back up with electric heater so that in the day without sunshine hot water can also be used
5. Can be combined with gas or electric heater
6. Max. Pressure: 12bar; Operating Pressure: 6 bar
7. It can be used for other function, such as warming
Solar water heaters working principle
1. The solar collector absorbs solar energy and transmits it to the solar water heater tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and heat pipe solar water heaters tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically
1. The solar collector absorbs solar energy and transmits it to the solar water heater tank through circulation
2. When the temperature of the collector reaches the set value, the controller starts the circulation pump automatically
3. The circulation pump makes heat-conducting liquid circulate automatically
4. The heat-conducting liquid transfers heat to water by lower heat exchanger in the water tank.
5. When the temperature difference between solar collector and heat pipe solar water heaters tank doesn't reach the set value, the circulation pump will be shut automatically
6. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically
Solar water heaters working station component:
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel:8L
12. Pressure resistance: 10 bar pressure for expansion vessel
1. Operating screen
2. Manometer
3. Pump speed adjust switches
4. Temperature difference circulation pump
5. Flow rate indicator
6. Return circuit connector
7. Safety valve
8. Expansion vessel connector9. Return circuit connector
10. Wall mounting
11. Expansion vessel:8L
12. Pressure resistance: 10 bar pressure for expansion vessel
Solar water heaters specification:
Description | solar water heaters |
Material of out manifold | 0.55mm thickness color steel/ fluorine carbon steel |
Material of inner tank | Food grade 2.0 mm thickness SUS304 stainless steel |
Tank insulating layer | 40mm 45kg/m³ high-density polyurethane foamed |
Inlet and outlet hole | Male G1'' |
Max pressure | 0.6 Mpa |
Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
Thickness of glass tube | 1.6mm |
Vacuum tube tightness | P≤0.005 Pa |
Absorption | as=0.93-0.96 (AM1.5) |
Emission ratio | εh=0.04-0.06 (80C±5C) |
Idle sunning property parameters | Y=220~260m2.C/KW |
Average heat loss coefficient | ULT=0.6~0.7W/(m2.C) |
Bracket: | 2.0mm thickness aluminum alloy |
Tank weight | 51KGS |
Tank size | 550mm Dia x 1340mm Height |
Tank capacity | 200L |
Solar collector | 1pcs 58x1800x20tube solar collector |
Absorber area | 1.874 m² |
Working station | SP116 working station |
Heat exchanger length | Upper:12m, Underside:18m |
Benefits of this kind of solar water heaters:
1. Prolong the life of your existing water heater
2.Costs less than an electric, gas or oil water heater
3.No maintenance required
4.Lasts longer than a traditional hot water heater
5.Reduce your water heating costs
6.Reduce your carbon footprint
Installation instruction of FD-SP2-300L:
Certificates of Solar System:
Heat Pipe Vacuum Tube:
Solar Collector Manifold:
