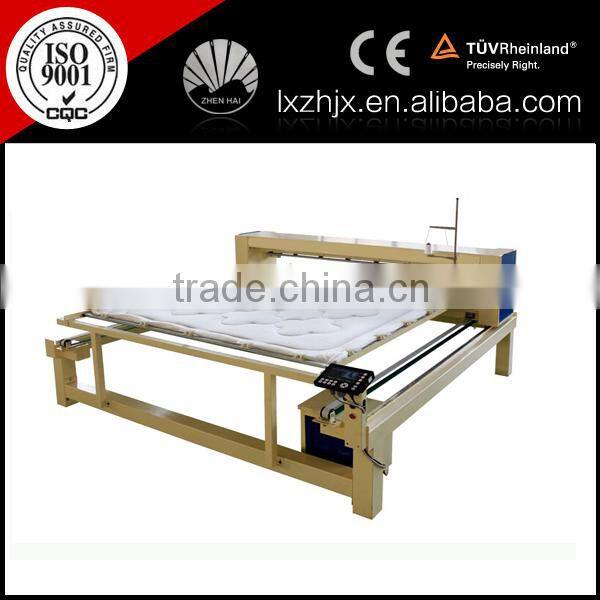

HFJ-38 single need computer quilting machine
- 30 Set / Sets per Month
- SHANGHAI PORT CHINA
- Credit Card PayPal
You May Like
-
ZCM-1000 non woven machinery, geotextile plant, insulation material production line
-
WJM series nonwoven waddings line, non woven polyester fiber wading production line, bedding line
-
Good quality cotton/fiber blending and reserve machine with big chamber customized
-
ZXJ-380 Automatic Pillow filling stuffer machine with CE Certificate Approved
-
HFH-2 Nonwoven cotton feeding machine,nonwoven machine for production line use
-
HFM-3000 high quality low cost 200kg/h ball fiber machine, pearl fiber making machine
Product Details
Condition | New | Place of Origin | Anhui, China | |
Brand Name | ZHENHAI | Model Number | HFJ-38 | |
Max Sewing Speed | 2000rpm | Max Sewing Thickness | 1200g/m2 | |
Number of Head | Single Head | Moving Style | Head Moved | |
Voltage | 220v,50hz | Power(W) | 1.5kw | |
Dimension(L*W*H) | 2900*2800*1400mm | Weight | 1000KG | |
Certification | ISO9001 | Warranty | 1 year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Usages:
Suitable for quilting patterns on duvet, mattress pad, bedcover, garments, etc.
Specifications:
1) Chinese and English version. With more than 200 kinds of patterns already in the computer; lockstitch, high precision
2) Power supply: 220V, 50Hz, 2kw
3) Automatically stops if thread breaks
4) Automatically stop against malfunction of computer, motor, and display
5) Pattern form: DST.
6) USB interface
7) Single stitch length:2-7mm
8) Needle type: DP5 18~22#
9) Max. speed: 2000rpm
10) Max. thickness: 1200 gsm
Specifications|Model | DF-5-2224 | DF-5-2325 | DF-5-2527 |
Max. Quilt size | 2200mm x 2400mm | 2300m x 2500mm | 2500mm x 2700mm |
Max.needle drop size | 1900mm x 2100mm | 2000m x 2200mm | 2200m x 2400mm |
Machine head | Single head,single needle ,lock stitch,big hook | ||
Max.thickness | 1200g/m2 | ||
Max.quilting speed | 2000rpm, needle distance 2~7mm | ||
Needle | Singar :18~22# | ||
Overall dimension | L2900mm×W2800mm×H1400mm | L3000mm×W2900mm×H1400mm | L3200mm×W3050mm×H1400mm |
Power supply | 220V 50HZ 1.5KW | ||
Weight | 600kg | 700kg | 800kg |
1, wooden case/polywood case
2, plastic foam packing
1, Engineers available for overseas service according to request.
2, Any machine from our factory has one year guarantee.
3, 24-hour technical support via email,telephone,skype,whatsapp,TM etc.
4, manual book in English version with details.
Langxi zhenhai machinery Co., Ltd., with a total area of 20,000 square meters, is a professional textile machinery manufacturer. Our currently available quilting machines, pillow filling machines, compress packing machine, ball fiber machine, nonwoven machines include needle-punched production line, geotextile line, asphalt mixing plant, stiff wadding line, glue-free wadding line, spray-bonded wadding line, quilt wadding line. We also provide technique supports and after-sale services.
Being a company with 20 years of experience in design and manufacturing, we have done a good job in researching and developing equipment and products. With advanced technology, we promise to customers that all machines delivered are qualified ones that have already been tested. Our over ten production lines can display the running condition of the machines and the most advanced technology.
We have a professional technical team that provides such supports as techniques, technology and equipment. In addition, we have a well-trained and experienced team providing good after-sale services. We also provide with installation, testing and training services according to customers’requirements.
Insisting on the principle of "Every customer is important to our brand and image", we are enjoying good reputations both at home and abroad. Our products have been sold to many countries and regions such as Japan, the Middle East, South and North America,and the Occident. Our brand has become a famous trademark in textile machinery like nonwoven industry field.
We warmly welcome you to contact us for more relative information about our quilting machines and nonwoven machines . We are sincerely looking forward to cooperating with all customers.
1,How to contact you?
You could contact us via TM,email or call us directly.
2,Are you factory or trading company?
More than 20 years ago we only had 1 factory but now we developed as a big united group with 2 factroies and 1 trading company.We produce machines by our 2 factories and export machines to different countries by our own trading company.We belonged to one boss:Mr.Chen who is a good and famous business man.Welcome to visit our factory.
3,How many countries have your products been exported to?
Until now our machines have been already exported to more than 100 countries.
4,Which payment term is accepted?
30% in advanced payment by T.T and 70% paid before shipment by T.T.
5,Can you make speicial voltage of the machines?
yes,usually the machines are made with 380v,50hz,3 phases or 220v,50hz,single phases.If you need different, please inform us and we customize.
