solar inverter
- Ningbo/Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Leacy | |
| Model Number | LCN | Output Power | Other, 300VA-3KVA | |
| Output Type | Single | Size | Customizable | |
| Weight | 10Kg-500Kg | Input Voltage | 12V/24V/48V/96V/120V | |
| Output Voltage | 110V/220V | Type | DC/AC Inverters | |
| Output Frequency | 50Hz/60Hz | Output Current | 1-10A |
Product Description

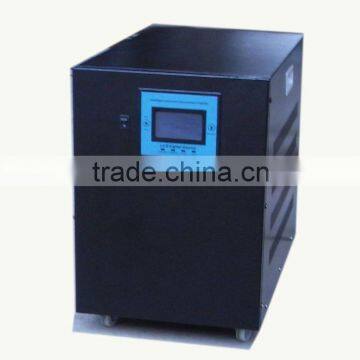

solar inverter
1. Production brief introduction
Our new LCN series pure sine wave inverters used high grade power frequency transformer, imported VMOS and advanced control technology CPU. The IGBT and new DS technology constitute the high performance pure sine wave power supply. It could afford different types loads and with the characteristics of quick response, anti-jamming, low consumption, high efficiency etc.
2. Applications
Computer system, communication system, precision instruments, precision machine tools, railways, shipping, hospitals, business field, school, family, travel, alarm system etc.
Widely used for solar and wind power generation equipment, also could connect the batteries to constitute the EPS/UPS emergency power system.
3. Specifications
The main parameters (single-phase)
| LCN | ||||||
Model | 500VA | 1KVA | 2KVA | 3KVA | 5KVA | 7KVA | 10KVA |
Rated power | 350W | 700W | 1.4KW | 2.1KW | 4KW | 5.6kW | 8KW |
Battery voltage(DC) | 24V | 24V | 48V | 48V | 96V | 240V | 240V |
Output current | 1.59A | 3.18A | 6.36A | 9.5A | 18.2A | 25.5A | 36.4A |
Instantaneous current | 2.4A | 4.8A | 9.6 A | 14.3A | 36.4A | 51A | 72.8A |
Input AC voltage | 110VAC or 220VAC±10%(With charger) | ||||||
Charge current | ≥10A(With charger) | ||||||
Input frequency | 50HZ or 60HZ | ||||||
Output voltage | 110VAC or 220VAC | ||||||
Output waveform | Pure sine wave | ||||||
Output frequency | 50HZ or 60HZ | ||||||
Voltage accuracy | ±3% | ||||||
Protection | Overload, over-temperature, overvoltage | ||||||
Efficiency | ≥80%(Full load) | ||||||
Operation environment | Temperature: -10~+40 c Relative Humidity: 0~90% | ||||||
Dimension(mm) | 300*150*245 | 460*245*385 | 550*310*540 (Height of Castor 60) | ||||
The main parameters (three-phase)
| LCN | ||||||
Model | 3KVA | 5KVA | 7.5KVA | 10KVA | 15KVA | 20KVA | 30KVA |
Rated power | 2.4KW | 4KW | 6KW | 8KW | 12KW | 16KW | 24KW |
Battery voltage(DC) | 240V | 240V | 240V | 240V | 360V | 360V | 360V |
Output current | 3.65A | 6.1A | 9.2A | 12.2A | 18.3A | 24.3A | 36.5A |
Instantaneous current | 7.3A | 12.2A | 18.4A | 24.4 A | 36.6A | 48.6A | 73A |
Output voltage | 220VAC or 380VAC | ||||||
Output waveform | Pure sine wave | ||||||
Output frequency | 50HZ or 60HZ | ||||||
Voltage accuracy | ±3% | ||||||
Protection | Overload, under-voltage | ||||||
Efficiency | ≥80%(Full load) | ||||||
Operation environment | Temperature: -10~+40 c Relative Humidity: 0~90% | ||||||
Dimension | 550*310*540 (Height of Castor 60) | 580*450*1000 (Height of Castor 100) | |||||
