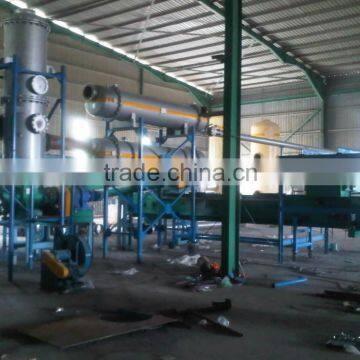

Fully automatic continuous waste tire/ plastic/medical waste pyrolysis plant

The Industrial Continuous Scrap Tire Pyrolysis Production Line utilizes advanced technique technology, which split scrap tire into liquid fuel oil, carbon black and little incondensable gas. It adopts reasonable technology and equipment design, while the procession were taken in a whole obturation reactor and thus eliminating the environment pollution, realizing energy recycling and achieving admirable environmental, social and economic benefit.

The whole production line can be divided into six sections:
1.Fixed temperature heating system;
2.Continuous pyrolysis system;
3.Carbon black production system;
4.Exhaust scrubbing system;
5.Gas purification system;
6.Control system.
The working process of the Industrial Continuous Scrap Tire Pyrolysis Production Line is: The scrap tire, will be shredded into suitable tire chips for pyrolysis reaction (＜50×50mm), and then the tire chips will be constantly conveyed to pyrolysis reactor with low temperature sulfur removal catalyst via the feeder extruder to carry through a normal pressure low temperature pyrolysis reaction. After being fractionated and cooled by the oil separator, will create fuel oil and little combustible gas. The combustible gas will be recycled to pyrolysis heating system once it has been passed through the exhaust scrubbing system. Meanwhile, the hot wind provides heating for the pyrolysis reactor, which via hot wind recycling system returns to the pyrolysis reactor for the recycling use thus can greatly economize energy consumption and reduce the equipment’s running cost.
After magnetic separation, the solid pyrolysis outcome–raw carbon black will be automatically sent to the carbon black production system and after processions such as grinding，chelating , reduction and packaging, the refined procession for carbon black will be completed.
Gases that produced in the heat supply system will be discharged at the required standard after the gas clarification system.
The Industrial Continuous Scrap Tire Pyrolysis Production Line has the following characters:
1. The advanced fixed temperature heating system and gas heating recycling system not only realizes dynamic heat supplying, heat suffering, equal pyrolysis material heat suffering, temperature adjustment and controllable but also achieves gas heating recycling, high thermal efficiency, energy saving and reducing running cost.
2. The advanced low temperature catalyzing pyrolysis technique which utilizes low temperature sulfur removal catalyst helps a thorough material pyrolysis at a low temperature. High oil yield rate(45-50%）, low gas yield rate (2-4%）,the colloid and bitumen contents in oil product is low and the quality of them are superior. The low pyrolysis temperature allows no coke inside the equipment and high quality carbon black outcome.
3. Since the pyrolysis temperature is far less than the operation temperature of the equipment itself and the heat suffering is equal, safety performance and equipment lifespan are greatly enhanced.
4. Industrial continuous production, the equipment performance is stable and high working efficiency.
5. The exhaust can be fully recycled to the heating system after multilevel scrubbing processions.
6. Temperature and wind amount of the gas clarification system can be automatically adjusted and controlled. The gas absorbent has strong adsorb ability and other characters such as high absorption speed, high separation speed, easily regenerated and the ability of eliminating all the contaminants in the gas, such as H2S、CL2、CO、CO2、SO2、SO3、NOX、CS2、NH3、oil and other organic compounds and solid particulates. Therefore the emission parameters will meet the emission standard of any developed industrial country.

The Industrial Continuous Scrap Tire Pyrolysis Production Line with characters of continuous production, high working efficiency, excellent safety performance, environmental protection performance, social benefit and economic benefit, thus can be widely applied in the industrial production.
