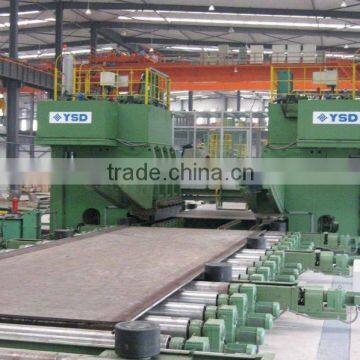

YSD Pipe Pre-bender machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hubei, China	Brand Name	YSD,LVD-HD
Model Number	PB2500/30	Machine Type	Pipe and Tube Bending Machine
Raw Material	Sheet / Plate Rolling	Material / Metal Processed	Stainless Steel
Power	Hydraulic	Automation	Automatic
Extra Services	Machining	Certification	CE

Product Description

The PB2500/30 CNC pre-bending consists of main machine, tooling, auxiliary machine, hydraulic system and electrical system.

The machine is with compact structure and handsome appearance. Due to monolithic welded structure and hydraulic station built on the top, easy installation and maintenance is achieved. Anti-side load and ability of centralized load are good.

PB2500/30 Pre-Bender with CNC function which is with nominal force 25000KN, tooling length 3000mm. The effective bending length for every time bending is 2300mm.

PB2500/30 Pre-Bender is used for pre-bending in the upriver JCO press. It has the functions of auto-feeding, auto-centering, pre-bending and auto-discharge.

Technical Specification:

No.	Item	Value	Unit	Remark
1	Pressing force	25000	kN	2x12500
2	Clamping force	4000	kN	2x2000
3	Tooling length	3000	mm
4	Effective bending length for every time bending	2300	mm
5	Max. sheet width	4500	mm
6	Min. sheet width	1200	mm
7	Bending thickness	30	mm	X70
8	Bending diameter for arc	φ406~1422	mm
9	Approaching speed	60	mm/s
10	Working speed	10	mm/s
11	Returning speed	100	mm/s
12	Main pressure of the system	28	MPa
13	Total power	400	kW
14	Machine weight (approx.)	350000	kg
