PP, PE film recycling machinery

     waste plastic recycling line

     PP,PE,non-woven fabric ,milk bottle crushing and washing line mainly including:Belt conveyor---crusher----friction washing machine-----sedimentation rinsing tank----lift conveyor---dehydrate machine-----drying   system----hopper and so on.

   It mainly deal with  PP,PE ,non-woven fabric ,milk bottle  and so on waste plastic garbage mixed  materials,used  PP woven  bags ,plastic bags,plastic garbage ,waste plastic film.

    The whole line from beginning to the finished  product  which can easy  clean the dirt waste plastics. The  dirty waste  agricultural film ,waste packing  material or  hard plastic can deal with  step  by step in here.The whole line capacity  can add  to 200-2000kg/h,which is popular at home  and abroad  owing to its effective design.

      ONE.Belt convey system
1.Motor power:1.5KW
2.Strap width:600mm
3.Strap transport length:4000mm
4.Excitation timing


   TWO.SWP 800 crusher
1.Motor power:37KW
2.Crush capability:400--500KG/H
3.Water spout diameter:1inch
4.Crush way:Crush with water


    THREE.Rub and clean machine
1.Motor power:5.5 KW
2.Rotation speed:500RPM
3.Screw diameter:Φ250
4.Screw barrel length:3000mm


   FOUR.Film clean machine
1.Clean roller:5pc
2.Width:1250mm
3.Available length:6000mm
4.Motor power:2.2*2
5.Decontamination motor power:1.5KW
6.Liquid lever control


  FIVE.Screw transporter
1.Motor power:1.5 KW
2.Screw diameter:Φ200
3.Available length:2500mm


   SIX.Film dewater system
1.Motor power:45KW
2.Rotation speed:1400rpm
3.Other parts contacted with material are made of stain steel, such as dehydration barrel, axes, leptospira and so on.


   SEVEN.Stainless steel pipe dry system
1.Heat power:28KW
2.Suction wind machine power:5.5KW
3.Pipe diameter:Φ159mm


    EIGHT.Whirlwind material storehouse
1.Capacity:2M3
2.Mixer motor power:2.2KW


     NINE.Electric equipment
1.Use domestic brand (DELIXI electric equipment)
Note that :The specification is competely based on your production purpose .And your capacity per hour .

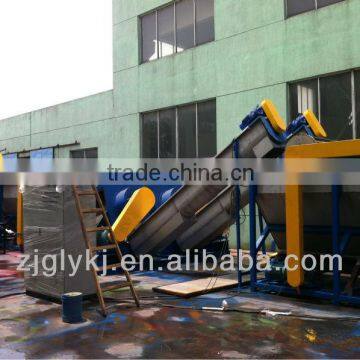

More Pictures of PP PE film Washing Line
