plastic pipe winder/plastic pipe winding machine
- 100 Set / Sets per Month
- FOBShanghai
- T/T Credit Card
You May Like
-
hdpe pvc pipe plastics pipe winder coiling machine
-
plastic pipe winder/plastic pipe winding machine
-
hdpe pvc pipe plastics pipe winder coiling machine
-
Zhangjiagang LianYing High Efficient Plastic Pelletizing Machine
-
High Efficient Plastic Pelletizing plant good sell
-
professional Plastic Pelletizing plant
Product Details
Condition | New | Place of Origin | Jiangsu, China | |
Brand Name | LY | Model Number | PPWM-16-32S | |
Voltage | Optional | Power(W) | 10-20N.M | |
Dimension(L*W*H) | 2300*1500*1800MM | Weight | 300kg | |
Certification | CE ISO9001 | Warranty | 12 month | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

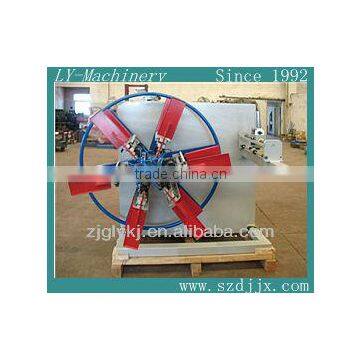

Plastic Pipe Winding Machine
Detailed description
1.Winding pipe diameter range:Ø16-Ø32mm,
2.Winding pipe inner core diameter:Ø400ø600mm,
3.Winding with the largest external diameter Ø 1100 mm, winding speed: 5/20 meters per minute,
4.Winding length: about 300 m according to the pipe ø 32;
5.Winding width: 250-400 mm, the flap height: 350 mm,
6.The air pressure: 0.6 Mpa, air cylinder:6 cylinder.
usage:
Purpose: it is matched in the back of the plastic pipe extruder, automatical winds plastic hose extruded from
extruder into a wheel, facilitate subsequent packaging and transportation
Other related parameters:
Model | 1200 twin-plate pipe | 1600 twin-plate pipe | 3000 single-plate pipe |
Inner diameter | 500-1000mm | 550-1000mm | 1000-3000mm |
Winding speed | 0.5-30m/min | 0.5-30m/min | 0.5-15m/min |
Winding width | 300-500mm | 300-500mm | 200-500mm |
Winding pipe spec | 16-32mm | 16-63mm | 63-110mm |
Air pressure | 0.6mpa | 0.6mpa | 0.6mpa |
Moment motor power | 10N.M | 10N.M&16N.M | 30N.M |
Dimension | 2700×1700×1800 | 3000×2800×2000 | 3500×2000×3500 |
Weight | 1000kg | 1500kg | 3000kg |
Features:
Quality control
• Qualified successfully before get in warehouse
• Randomly Checking Machines before shipment
Service:
Pre-sale
We provide presales service in various forms, for example, making investment budget,manufacturing planning, etc. so that customers make a reasonable plan with less cost.
• Investment budgeting: We provide services of product profit analysis, recommendation of machine and auxiliary equipment and relevant budgeting, human resources allocation and budgeting.
• Plant Planning: We provide the mounting dimension of the equipment base,design of equipment layout, workshop ventilation, water transmission etc.
In-sale
• Detailed design of lay-out that is the position of the procession
• Technological information of provided products
• Schedule about design,manufacturing and installation
• Producing progression
• Training course for the technician so that the installation is safe and standard
After-sale
• Provide them free training
• Answer customer's question on technology,offer on-site guidance and assistance.
• Provide free technical guidance if customers need new equipment, add or rebuild equipment.
