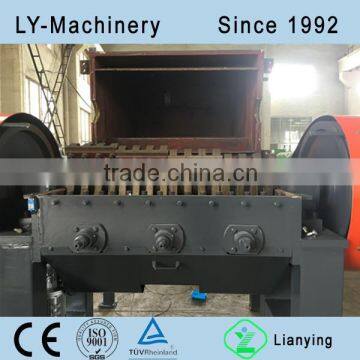

PP PE Film PET bottle Crusher ( S-*-13)

Usage:Note: be generally setted before conveyor feed, custom customer requirements: screw feeder for discharge or suction fan.

S-1200-13 be used in 1000kg/hr-1500kg/h PET washing line
EXW: 11333$
Basic Configuration:
Motor power: 55kw/75kw;
capacity: 1200/1500kg/hr
crusher cavity size: 1210x820mm
moving cutter quantity: 12 PCS
fixed cutter quantity: 4 PCS
blade material: SK-11
standard hole size of screen mesh: 18mm (or according to customer's requirement, but the capacity is different.)
Iron Threaded rods to open the hopper
equiped with water breaking function
machine size: 2000x2000x2600mm
machine weight:3500kgs
PET washing line, with 500 kg for 30kw, 1000kg/h for 55kw, 15000kg/h for 75kw, Another two: 22kw for 300kg/h, 45kw for 800 kg/h, other can custom.

Introduction of Plastic Bottle Washing Line

• This Plastic Bottle Washing Line is mainly used to recycling the waste PET bottles, water bottles, cola bottles,

PET sheet and PET packing containers.

• The whole line includes:conveyor belt, label remover(dry type or water type), sorting system,metal detecting system, plastic granulator or crusher, sink-float washing tank, hot washing system, frication washer, dewatering machine, thermal dryer, label/dust/fin separator and packing system.

• The above machines can easily remove the labels, caps, rings, glue, dirties and other impurities, finally you will get ideal PET flakes.

• All your requirements of the Plastic Bottle Washing Line will be customized.

Features of Plastic Bottle Washing Line

• Labor saving. The Bale opening and feeding system we provide will equally feed the material.

• You can use the manually sorting system to selecting out different color bottles and non-PET material

• Metal detector is optional for you which used to take out any kind of metal from the PET bottles

• Specially designed PET bottle granulator can easily get high output and with water doing wet griding can

reduce wear of blades.

• High speed dewatering machine and drying system will insure the final PET flakes moisture <1%

• The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content

Technical Data of Plastic Bottle Washing Line

More Pictures of Plastic Bottle Washing Line
