3- Roller Metal Plate Rolling

FOB Price

USD $3,000 - $80,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port shanghai
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Huayang
Model Number	W11	Machine Type	Roll Forming Machine
Raw Material	Sheet / Plate Rolling	Power	Other
Automation	Automatic	Certification	CE

Product Description

Specifications

3-Roller metal Plate Rolling Machine
1.Max thick of plate:50mm
2.max width of plate:3200mm
3.3-roller

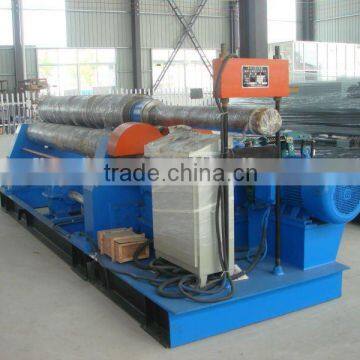

3-Roller Metal Plate Rolling Machine

The machine adopt 3-roller symmetrical structure with the upper roller moving vertically in the center between the two lower rollers,which is achieved through the drive of the srew,the nut,the worm and the lead screw, the two lower roller ritates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the gear of the low rollers, the dis advantage of the machine is that the ends of the plate of material need to have the help from other equipment for pre-bending.

Model	Max Thickness Of coiled plate (mm)	Max width Of coiled plate	Yielding limit of sheet metal	Coiling speed	Min full loading diameter of coiled plate (mm)	Diameter of top shaft	Diameter of bottom shaft	Central Distance between bottom shaft (mm)	motor power (kw)
W11- 6X1500	6	1500	245	5	450	160	160	250	4
W11- 6X2000	6	2000	245	4.5	450	185	170	250	5.5
W11-6X3200	6	3200	245	4.5	450	185	170	250	5.5
W11-8X2500	8	2500	245	4	600	240	180	280	7.5
W11-12X2000	12	2000	245	4	600	240	180	280	7.5
W11-12X3000	12	3000	245	4	700	280	250	359	11
W11-16X2500	16	2500	245	4	700	280	240	359	11
W11-16X3200	16	3200	245	4	700	280	240	359	11
W11-20X2000	20	2000	245	4	850	330	270	440	15
W11-25X2000	25	2000	245	4	850	340	280	440	15
W11-20X2500	20	2500	245	4	850	340	280	440	15
