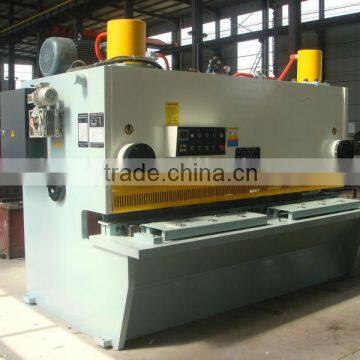

cnc delem system shear qc11k-12x2500

Specifications

CNC delem system shear qc11k-12x2500

BRIEF INTRODUCTION:

1.All steel welded structure,vibrating treatment of ageing for removal of internal stress,with good rigidity and stability.

2.Intergrated hydraulic transmission system,with good reliability.

3.Triple support rolling guide raikl to eliminate gaps of support and enhance shearing quality.

4.Mechanical rear stopper with manual fine tuning,and digital indication.

5.Clearance in between shearing blades adjusted by motor to be quickly.accurate and convenient.

6.Rectangular blades with four cutting edges to prolon working life,adjustable shearing angle to reduce deformation of the sheet.

7.Upper blade holder has inward tilting struction to facilitate material feed in and also enhance of the work piecision.

8.Function of shearing in section,function of aligning with light

9.Optional:rear material holding device( or for other choice)

COMPONENTS( as optional) :

Operation System: ESTUN /DELEM (HOLAND)

Oil pump(Gear Pump): Chengjie(Shanghai)

Blade:Jinshang (Shanghai)  Material: 6crw2si /9crsi

Hydraulic elements: Rexroth (Germany)/Omega(U.S.A.)

Electric parts: Siemens Germany)

Motor: Siemens(Germany) /Hengli (Nantong)

Main Seal:VALQUA(Japan)/NOK(Japan)

All components also can supply according to client's requirement.

SPECIFICATION:

More specification you need please contact with me. We can supply the shearing machine :

Cutting thickness :4mm    Min - 40mm  Max

Cutting length     : 1.5m      Min -  8  m     Max

AFTER SERVICE :

 1.Seller can arrange people go abroad for installation and test .The cost at home is paid by seller ,but cost a broad include the round-trip ticket should be paid by buyer .

2.Seller offers the operation manual (English).

3.Seller offers one set of wearing parts and one set tools for installation and maintenance .

4.Length of warranty : one year as from the date of acceptance.

  one year as from the date of installation and acceptance. Within the 1 year ,if the accessory is demaged exce pt the human factor of your parts, we will express a new related accessory (free) and instruct you how to repair. exceed 1 year.,if the accessory is demaged  we can express a new related accessory (changed) and instruct you how to repair

5.Buyer can arrange people here to examine and verify the machine, buyer also can send people here to learn how to use the machine (it’s free of charge to learn ).

FACTORY: Our factory is consist of working area, half products area, finished products area, components warehouse.

PRODUCING:

NC SYSTEM( FOR OPTIONAL):

 MAIN CNC SYSTEM(FOR OPTIONAL):

We can supply series , diffierence CNC system. if you are interested in others cnc system , please contact with me.

FINISHED PRODUCTS:

DETAILS:

Electrical Parts                                                                Hydraulic System

Motor For Adjusting Blade                                              Main Motor

LOADING CONTAINER:

Flat Rack Container Loading:

20"container or 40"Container Loading:
