110v-240vac 24v dc 12w us eu uk Plug Adapter/adaptor

PROTECTION:

• Short Circuit Protection

   If short circuit occurs,all the output should be protected. After the fault, the adapter automatically recovers.

• Over Shoot

    The Output over shoot at turn-on shall not exceed 10% of normal voltage value with or without the load connected.

• Start-up time

    The start-up time is less than 2 second.

ENVIRONMENTAL CONDITIONS:

• Temperature

    Operating temperature:  0℃  to  +40℃

    Storage temperature :  -20℃ to  +60℃

• Humidity

Relative humidity:≤95%

• Operating Ambient Altitude

     Altitude:0-3000m

• Operating at the lower temperature

      At -0℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery  at the room  temperature.

• Operating at the high temperature

    At +40℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full Load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery  at the room  temperature.

• COOLING:

    Cooling shall be with natural convection cooling.

• Burn-in

    The burn-in test will be performed at least 4 hours at centigrade

    degrees under full load Condition.

• Referenced standard:

EMI Standards

Reference  EN50082-1,EN55022-B,GB-17625.1-2003, GB-9254-1998

• Safety Standards

    The adapter shall be meet certified with the following safety standards.

    UL60950-1,EN60950-1,GB4943-2001

MOUNTING CONNECTORS:

• AC Input Connector

     Spec :2Pin  (CE PIN)

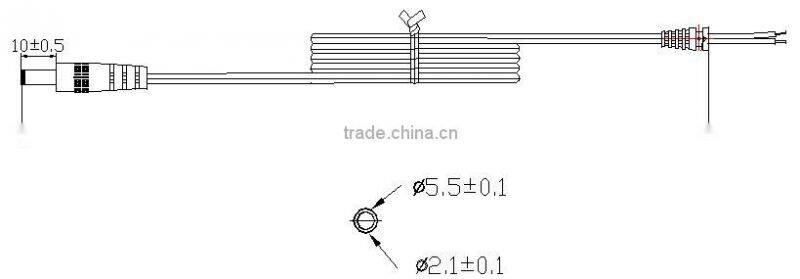

• DC Output Cable

     Wire : (Optional) UL2468  24AWG*2C  L=1200mm Color: Black

     Plug : (Optional) 5.5 x 2.1x 10mm  Turning fork line

MECHANICAL FEATURES:

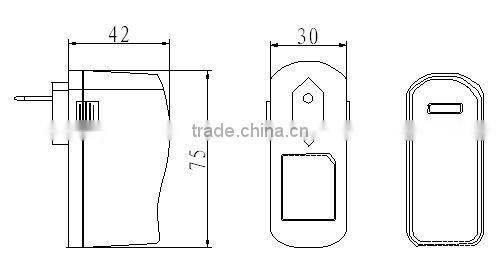

• Dimension(Size)

     Length: 75mm

     Width: 42mm

     Height: 30mm

• Weight

     The Power Supply unit : 79±10g

• Vibration and shock

      No Evidence of any mechanical or functional damage after the vibration and shock testing.

• Drop test

After Dropping from a hight  of   100  cm onto a wooden floor , Dropping at  6  sides  totally,  NO breakage should be happened in the test piece.

• Bending Test

     Fix the power supply and its plug, apply a load of 200g to the other end, turn the cable by +/-60℃ carry out this process 1000 times, at the rate of 20 times per minutes. No abnormality in mechanical and electrical Characteristic and disconnection within 30% after the test.

DIAGRAM DATA:( See to attach the diagram)

Remarks:

1) UL2468  24AWG*2C  L=1200mm Color: Black

2) PLUG:5.5 x 2.1 x 10mm  Turning fork line
