Home > Products > 277V CC/CV LED driver > 277V LED power supply 12v 100w

277V LED power supply 12v 100w

FOB Price

Negotiable / Piece

200 Pieces(Min. Order)

Port xiamen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	SMARTS
Model Number	SMT-012-100VW	Output Power	101 - 200W
Output Type	Single	Input Voltage	Other, 100-265V/ 170-305VAC
Output Voltage	12vDC, 24vDC, 36vDC, 48vDC	Output Frequency	47-63Hz
Output Current	2.08~8.33A

Product Description

Specifications

Input voltage:100~265V,170-305V
power: 100Watt
Efficiency> 83%
Pass EN55015 standard EMC test
Certification: UL/CE/ROHS

Product reference:

Input voltage:100-265V /170-305VAC / 47-63Hz;

Working Temp:-25-50^oC;

Efficiency:≥84%

Certification: UL/CE/ROHS;

Portecion grade:IP67

We give 2 years warranty

(If there is any defective units happen during the warranty period, we promise to replace a new one to you.)

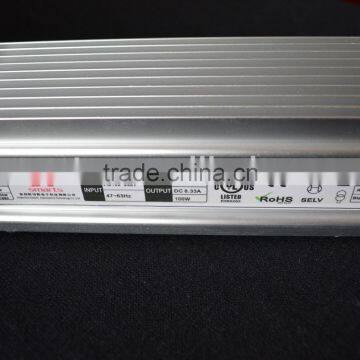

Product figure:

Size:220*68*53mm

Case material: Aluminum

Wire requirement:Input: white wire,Output Red + Black -

Characteristics of product

High efficiency,save energy, entironment friendly

High stability and low ripple, increase light efficiency and decrease light attenuation

Assure LED stability long lift and light efficiency by constant voltage

Integrity protection: over loading, over voltage, over current

2 years warranty

Certifications for UL, CE(LVD + EMC) & RoHS

Product parameters

Model	Input voltage(ACV)	Working Frequency (Hz)	Output voltage(DCV)	Output Current (Amp.)	Output power (DCW)	Working Temp.	Protection grade
SMT-036-100VW	100-265V 170-305V	47/63	36±0.5	2.78A	100W	-25~50°C	IP67
SMT-012-100VW	100-265V 170-305V	47/63	12±0.5	8.33A	100W	-25~50°C	IP67
SMT-024-100VW	100-265V 170-305V	47/63	24±0.5	4.17A	100W	-25~50°C	IP67
SMT-048-100VW	100-265V 170-305V	47/63	48±0.5	2.08A	100W	-25~50°C	IP67

Application:

Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
