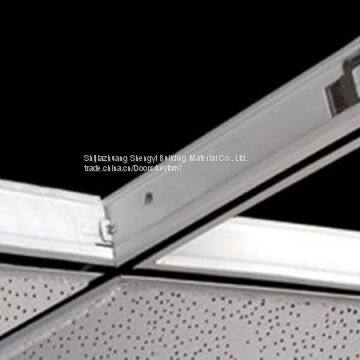

Ceiling Suspension Grids, Ceiling T Bar/Standard T Bar

Normal plane t-grid/ T-bar System ( NPT system)

Main Tee

Size:(Height*Width*Length)

38*24*3600mm

38*24*3660mm

38*24*3750mm

32*24*3600mm

32*24*3660mm

32*24*3750mm

Thickness:0.26mm, 0.30mm, 0.35mm; 0.40mm

Cross Tee

Size:( Height*Width*Length)

27*24*1200mm

27*24*1220mm

27*24*600mm

27*24*610mm

Thickness: 0.26mm, 0.3mm

Wall Angle

Size:( Height*Width*Length)

24*24*3000mm

20*20*3000mm

Thickness: 0.3mm, 0.4mm

Narrow(Slim) Plane T-Grid/ T-Bar System ( SPT system)

Main tee

Size:(Height*Width*Length)

38*15*3600mm

38*15*3660mm

38*15*3750mm

32*14.5*3600mm

32*14.5*3660mm

32*14.5*3750mm

Thickness: 0.26mm,0.30mm, 0.35mm, 0.40mm

Cross Tee

Size:(Height*Width*Length)

32*14.5*1200mm

32*14.5*1220mm

32*14.5*600mm

32*14.5*610mm

Thickness: 0.26mm, 0.3mm

Wall Angle

Size:(Height*Width*Length)

24*15*3000mm

20*15*3000mm

Thickness: 0.3mm, 0.4mm

Weight

Size (Flat T Grid)

Name           Specification                Weight(kg)

Main tee      24*32*3600*0.26mm         0.806

Main tee      24*38*3600*0.26mm         0.894

Cross tee    24*26*1200*0.26mm         0.236

Cross tee    24*26*600*0.26mm           0.118

Main tee      24*38*3600*0.30mm         1.01

Main tee      24*32*3600*0.30mm          0.908

Main tee      24*30*3600*0.30mm          0.883

Cross tee     24*26*1200*030mm          0.266

Cross tee     24*26*600*0.30mm           0.133

Size ( Narrow Plain T Grid)

Name           Specification                Weight(kg)

Main tee     15*32*3600*0.26mm         0.71

Main tee     15*32*3600*0.30mm         0.801

Main tee     15*38*3600*0.26mm         0.814

Main tee     15*38*3600*0.30mm         0.92

Cross tee     15*32*1200*0.26mm        0.237

Cross tee     15*32*1200*0.30mm       0.267

Cross tee     15*38*1200*0.26mm       0.271

Cross tee     15*38*1200*0.30mm       0.307

Cross tee     15*32*600*0.26mm          0.119

Cross tee     15*32*600*0.30mm         0.134

Cross tee     15*38*600*0.26mm         0.136

Cross tee     15*38*600*0.30mm        0.154
