Home > Products > Digital temperature control soldering station > Quick203 and Quick 203H ESD soldering station

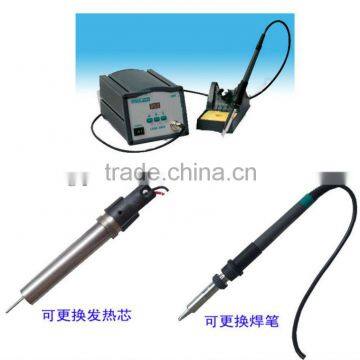

Quick203 and Quick 203H ESD soldering station
- 3000 Set / Sets per Month
- shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Quick | |
| Model Number | Quick 203/203H | Input Voltage | 220V | |
| Output Temperature | 50-600 | Temperature Stability | ±2 | |
| Output Power | 150W | Dimensions | (L)200*(W)130*(H)100mm |
Product Description
Specifications
Quick203 and Quick 203H ESD soldering station1.High frequency current heating
2.60W and 90W
3.temp.range:50-600 degree
Quick 203 and Quick 203H ESD lead free soldering station:
1.Low cost of replacing spare parts,separate design of soldering tips,sensor and heater.
2.Sensor close to the tip,accurate temperature,rapid thermal recovery
3.Auto sleeping function available,energy-efficient.
4.Temperature locked by password ensure soldering process.
5.Digital temperature calibration,easy operation.
6.ESD safe design.
Model: | Quick203 ESD | Quick203H ESD |
Temperature range | 50°C-600°C | |
Temperature Stability | ±2°C(stationary air,no load) | |
Input voltage | 220V/110V 50Hz/60Hz | |
Output Voltage | AC 36V,400K Hz | |
Max Power Consumption | 60W | 90W |
Temp. rising time(20-350°C) | 35S | 25S |
Temp. dropping | 30°C | 20°C |
Heating mode | Intelligent | |
Heating theory | High frequency current | |
Tip to Ground Resistance | <2Ω | |
Tip to Ground Potential | <2mV | |
Auto sleeping | Yes | |
Temperature-lock mode | Password | |
Weight(no power line) | About 2.0kg | About 2.6kg |
soldering tips for soldering station:
