72 cores Optical Distribution Frame ODF

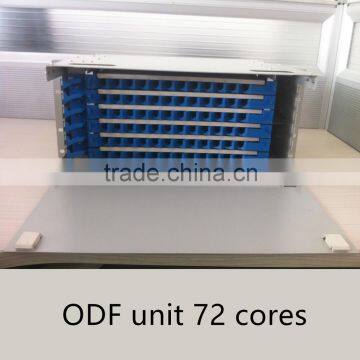

ODF unit-72 cores

Generally, the ODF unit box is a necessary part of the indoor optical distribution frame. 12 cores fusion splicing and distribution module plays the main role and its function is splicing, fiber storage and protection. A completed ODF unit will be with adapter, pigtail and accessories like splice protection sleeve, nylon tie, snake like tube, screw.

Material: Cold Reduced Electrolytic Tinplate. Body: 1.1mm, front plate 1.5mm

Products specification:

ODFSB12: Capacity: 12 fibers

Dimensions: 482*300*175mm

Features

19’ standard mounting, available for all kinds of rack and cabinet.

Metal, static electric plastic sprayed. Neat appearance, reasonable structure. With cable fixed and protection function; With functions of fiber optic cable terminating;

All are designed as modules; all operation could be done at the front side of the box. Flexible installation. Convenient for operation and maintenance.

Designed as a drawer. This could be pulled out and pushed easily. A unit with splice and distribution integrated.

Suitable for both ribbon and bunch fiber cables.

Each splice trays can be clamped with 12FC, SC, ST, LC(Duplex) adapters/30° oblique installation, preventing eyes form harm of laser and ensuring the fiber bending radius.

Operation and storage temperature: -25℃ - +55℃

Dielectric intensity: ≥3KV(DC)/1minNo breakdown, no arcing

Insulation Resistance: ≥1000M&/500V(DC)

Shelter plate of fiber bending radius≥40mm

Application: FTTX project, Data center

Packaging

one piece in a paper box.

several boxes in a cartoon of 54*35*39cm.

other size carton is available too.

Shipping

goods shipped by air or by land transporation.

1,Free samples can be provided.

2,OEM service

3,Nice payment terms.

4,high quality products

5,Competitive price,

6,fast delivery

7,New product priority sell

8,Optical Network Project Consultant.

9,New Products development for customer.

10,Cost-effective logistic solution can be chosen for you.

11,The specific sales person to serve our customers so that you can feel easy and efficient.

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.

Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions

OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.

We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.

1,Can we get free samples?

Yes. Free samples can be offered for your test. You only need to pay the freight.

2,What is the quality of the products?

All the products are of high quality. We promise 100% recall policy if they are unqualified.

3,How will we do if we are not familiar with the optical products?

Don’t worry. We OMC has a team of experts who can offer professional suggestion for customer’s Optical network Project.

4,We are confused that the freight is too high.

Cost-effective logistic solution can also be chosen for you.

5,What is your quality control.

source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.

quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.

optical test. Our products are strictly tested in accordance with IEC and ITU standard.

we have 30% spot test by Quality Assurance Department after the products finished.
