China hot sell MPO trunk cable with high quality

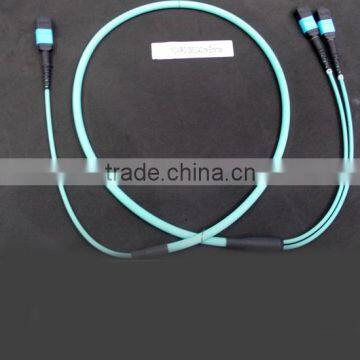

MPO Trunk cable

MTP/MPO trunk cables connect MTP/MPO modules together as a permanent link. The trunk cables are available with 12, 24, 48 and 72 fibers. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP/MPO also provide much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassettes with the new connector style on the cross-connect side of the patch panel. The merits of MTP/MPO trunk cable generally include:

High quality—MTP/MPO trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.

Decreasing cable volume—MTP/MPO trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.

Time saving—With the special plug and play design, MTP/MPO trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.

MPO Fiber Trunk Patch cable are terminated with MPO connector on both end. All of OMC’s MPO Connectors are from Taiwan,Japan etc. MPO patch cord is a kind of high density cable assemblies which is generally use in three areas.

1, The Data Center application with high dense degree environment

2, The optical fiber to the building

3, The internal connector application in fiber equipment.

MPO products’ Standard:

1. Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant

2. Structured cabling per TIA-568-C

3. Parallel Optics

- Optical Internetworking Forum (OIF) Compliant

- InfiniBand Compliant

4. InfiniBand

- 10G Fiber Channel Compliant

- 40G and 100G IEEE 802.3

- QSFP

Pre-terminated MTP Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional allocation.

Please Note: When it is connected with two 40G QSFP+ transceivers, please choose the Type B Cross as polarity; when it is connected with other equipment such as MTP LGX Cassette, you can choose any of the polarities as you need.

MPO patch cord’s Specification:

Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m

MPO Interference index

Cable Structure:

Features:

1. Low insertion loss, high return loss

2. MT based Multi-fiber Connector, 36-144 fiber connector terminations and assemblies

3. Economical solution for mass-termination of fiber

4. Designed for low loss and standard loss SM and MM applications

5. Ruggedized round cable, oval cable and bare ribbon options available

6. Color coded housings available to differentiate fiber type, polish type and/or connector grade

7. Good in repeatability and exchangeability

AVAILABILITY:

1. Ribbon and bundle cable available;

2. Patch cord, pigtail cable assemblies available.

3. MT-MT ribbon patch cord is available.

Packing: PE bag,carton

Shipping: by air by DHL by FedEx or upon on requests.
