MTP/MPO lookback patch cord

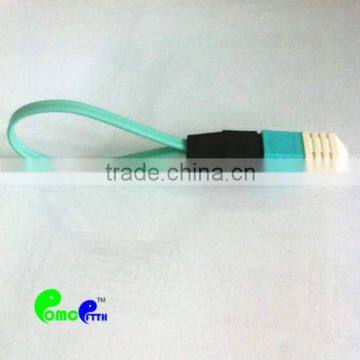

12/24-Fibers MPO/MTP Fiber Loopback Module

MPO/MTP Loopback modules are used widely within testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP interface – 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices. Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO/MTP transceivers interfaces. MPO/MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP trunks/patch leads.

Features

-SM 9/125, MM 50/125, MM 62.5/12512 or 24 Fiber Ferrule

-MPO/MTP LSZH, OFNP, OFNR Cable Jacket Options

-Female and Male MPO/MTP option of Connectors

-Polarity Variants selection40G QSFP+ and 100G CXP/CFP transceivers

-Factory Terminated and Tested MPO/MTP Interface

-MPO/MTP components feature superior optical and mechanical properties

Applications

•Data Centre Infrastructure

•Storage Area Network- Fiber Channel

•Parallel Optics

•InfiniBand

•Emerging 40 and 100Gbps Protocols

Specifications

 Polarity (Channel Alignment)

12-MTP VS 24-MTP

12-fiber MTP interface for 40 Gig means 4 lanes at 10 Gig per lane over singlemode or multi-mode fiber for a total of 8 fibers (i.e.,4 transmit and 4 receive).

24-fiber MTP interface for 100 Gig means 10 lanes at 10 Gig per lane over singlemode or multi-mode fiber for a total of 20 fibers (i.e.,10 transmit and 10 receive).

Packaging

one piece in a plastic bag.

hundreds pieces in a cartoon of 54*35*39cm.

other size carton is available too.

Shipping

goods shipped by air or by land transporation.

1,Free samples can be provided.

2,OEM service

3,Nice payment terms.

4,high quality products

5,Competitive price,

6,fast delivery

7,New product priority sell

8,Optical Network Project Consultant.

9,New Products development for customer.

10,Cost-effective logistic solution can be chosen for you.

11,The specific sales person to serve our customers so that you can feel easy and efficient.

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.

Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions

OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.

We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.

1,Can we get free samples?

Yes. Free samples can be offered for your test. You only need to pay the freight.

2,What is the quality of the products?

All the products are of high quality. We promise 100% recall policy if they are unqualified.

3,How will we do if we are not familiar with the optical products?

Don’t worry. We OMC has a team of experts who can offer professional suggestion for customer’s Optical network Project.

4,We are confused that the freight is too high.

Cost-effective logistic solution can also be chosen for you.

5,What is your quality control.

(1).source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.

(2).quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.

(3)optical test. Our products are strictly tested in accordance with IEC and ITU standard.

(4)we have 30% spot test by Quality Assurance Department after the products finished.
