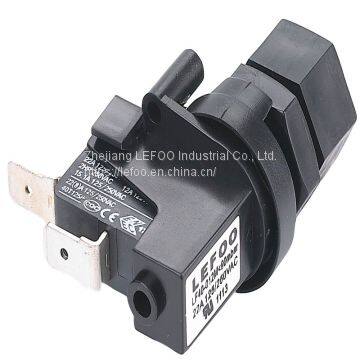

LF40 Air Pressure Switch for Medical Application
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- 7 days
You May Like
-
LF25 CE Approved Steam Boiler Pressure Switch
-
LF55 LEFOO Single Low Or High Pressure Switch For Air Compressor,Refrigerant System,water Pump
-
LEFOO LF56 Steam Boiler Pressure Switch for Boiler or Water Tower, Differential Pressure Adjustable Pressure Controller
-
LF52 OEM Water Flow Central Air Conditioning Differential Pressure Switch
-
LF10-L Aotomictical Air Compressor Pressure Switch
-
LF17 Euro Switch Pressure Switches
Product Details
| Brand Name | LEFOO | Place of Origin | China | |
| Model Number | LF40-01 | Max. Voltage | 250VAC | |
| Max. Current | 22A | Max. Working Pressure | 50PSI |
Product Description
LF40-01 air switch is provided with a snap action switching for higher current capacity, SPDT contact form and switch deadbands (also referred to as mechanical differential or hysteresis).

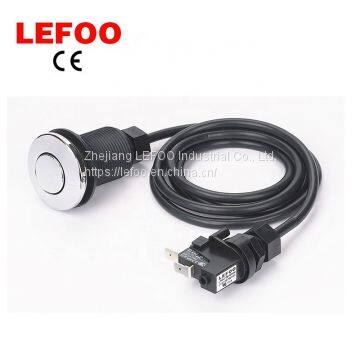

LF40-01 air switch can be used together with air button (also called as Actuator) for remote control purpose. It is widely used in food waste disposer, pumps for swimming pools and spas, hot tubs, sanitary equipment, out door machines, medical equipment etc. As a remote control switch, it is small enough to fix in the control box of the engine. Used as a remote control, the air switch has two actions:
1) Momentary action: when the air button is pushed, the air switch is actuated. When air button is released, the air switch will also be released. This is the way the basic pressure switches are working.
2) Alternate action (also referred to as latching or bistable): the first pushing on air button actuates the air switch, and the air switch keep actuating when air button is released. A second push on the air button will release the air switch.
Model | LF40-01 |
Media | Air or other non hazardous gas, water |
Operating Pressure Range | 20 mbar to 1000 mbar |
Proof Pressure | 50 PSI |
Operating Temperature Range | -10° C to 85° C |
Contact Arrangement | SPST or SPDT |
Electric Rating | 1/2HP 250V, for long distance remote control; 2HP 250V, for high rating application; Other rating can be available on request |
Terminals | 6.35 or 4.88 mm male Q.C. |
| Connection | 4mm OD tube,1/4 NPT male thread, 1/8 NPT male thread |
Conversion: 1Bar= 14.5PSI , 1PSI = 68.95 mbar
