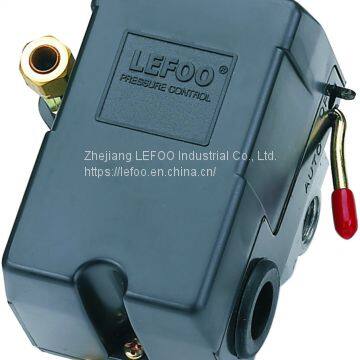

LEFOO LF10-L Pressure Switch/air Compressor Switch/Mechanical Pressure Switch for Air Compressor
- Shanghai
- T/T D/P D/A Credit Card PayPal Other
- 7 days
You May Like
-
LF40 Air Pressure Switch for Medical Application
-
LF25 CE Approved Steam Boiler Pressure Switch
-
LF55 LEFOO Single Low Or High Pressure Switch For Air Compressor,Refrigerant System,water Pump
-
LEFOO LF56 Steam Boiler Pressure Switch for Boiler or Water Tower, Differential Pressure Adjustable Pressure Controller
-
LF52 OEM Water Flow Central Air Conditioning Differential Pressure Switch
-
LF10-L Aotomictical Air Compressor Pressure Switch
Product Details
| Brand Name | LEFOO | Place of Origin | China | |
| Model Number | LF10 | Type | Condensate Pot |
Product Description

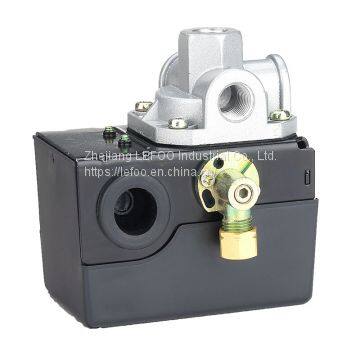

The LF10 pressure switches are used to regulate the tank pressure between two preset values on small (up to 175psi) electrically driven air compressors. They are available with an unloader valve, which prevents compressors from starting under load, and an auto-off disconnect lever for manual cut off the compressor. A four port manifold style is available which provides a means for easy mounting of valves and gauges.
|
MODEL | Min ON (Cut-In)PSI | Max Off | Differential | Factory Setting PSI | Electrical Rating | Pipe Fittings | Contact Arrangement | |
120VAC | 240VAC | |||||||
LF10-1H1 | 25 | 100 | 20-30 | 50-80 | 20A | 12A | NPT 1/4 Male or Female NPT | NC |
LF10-1H2 | 35 | 150 | 30-40 | 85-115 | 20A | 12A | 1/4" Male or Female NPT | NC |
LF10-1H3 | 50 | 175 | 35-55 | 110-150 | 20A | 12A | 1/4" Male or Female NPT | NC |
G1/4 (BSP 1/4) Male or Female Pipe Fittings are available.
Conversion: 1Kgf/cm2 = 14.2PSI , 1bar = 14.5PSI
MODEL | Min ON (Cut-In)PSI | Max Off | Differential | Factory Setting PSI | Electrical Rating | Pipe Fittings | Contact Arrangement | |
120VAC | 240VAC | |||||||
LF10-4H1 | 25 | 100 | 20-30 | 50-80 | 20A | 12A | 1/4" Female NPT (4 Port) | NC |
LF10-4H2 | 35 | 150 | 30-40 | 85-115 | 20A | 12A | 1/4" Female NPT (4 Port) | NC |
LF10-4H3 | 50 | 175 | 35-55 | 110-150 | 20A | 12A | 1/4" Female NPT (4 Port) | NC |
