Home > Products > Rubber kneader > Lab Kneader Mixers
Lab Kneader Mixers
- qingdao port or any port of china
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Rubber Kneader | |
| Place of Origin | Shandong, China | Brand Name | HONGHESHENG | |
| Model Number | XK-160/250/360 | Voltage | 380V/220V/450V/480V | |
| Power(W) | 75 KW | Dimension(L*W*H) | 3280*2120*3090 | |
| Weight | 1000kgs | Certification | CE ISO | |
| Warranty | 2 years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
lab kneader mixers
A. Basic information:
For masticating and kneading natural rubber, synthetic rubber, EVA or PVC
pellets with various kinds chemical material and warming the cold material
which shall be supplied to the calender, embossing calender or hot presses.
B. Machine Parameters:
Kneader mixer | X(S)N-5 | X(S)N-20 | X(S)N-35 | X(S)N-55 | X(S)N-75 | X(S)N-95 | X(S)N-110 |
Mixing capacity (L) | 5 | 20 | 35 | 55 | 75 | 95 | 110 |
Actuating motor (kw) | 7.5 | 37 | 55 | 55/75 | 90/110 | 132 | 160/200 |
Turnover motor(kw) | 0.75 | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 5.5 |
Turnover angle (º) | 110 | 110 | 140 | 140 | 140 | 140 | 140 |
Air compressor motor (kw) | 1.5 | 3.0 | 5.5 | 7.5 | 11.0 | 15.0 | 15.0 |
Dust cleaner | HLL-10 | HLL-10 | HLL-10 | HLL-15 | HLL-20 | HLL-30 | HLL-30 |
Water cooling(Rubber refining) Mpa | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
Steam heating(Plastic refining) Mpa | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 | 0.5-0.8 |
Electrical heating(Plastic refining) KW | 4 | 9 | 12 | 15 | 18 | 24 | 24 |
Weight (kg) | 1200 | 4500 | 6500 | 7800 | 10500 | 12500 | 14500 |
Dimension (LXWXH) (mm) | 1900x950 x2400 | 2600x1400 x2600 | 3200x1900 x3000 | 3500x2600 x3300 | 3900x2900 x3400 | 4000x3200 x3700 | 4100x2900 x3800 |
C. Advantages:
1.Maximum Dispersion & High Production
Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2.Super sealing,no powder leakages.
Both sides of the rotor blades are injected welding a iron alloy ring, which assures sealing and protects the blades from abrasion.Imported bakelite sealing ring,which make super sealing.The chamber around are designed with groove,then embeded with rubber stip,this make sure the whole mixing chamber is well sealed.
3.No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.
4.Easy Cleaning & Colour Change
Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.
5.Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.
6.Short Mixing Time
Mixing time ranges from 6 to 12 minutes depending on compound's specific gravity.

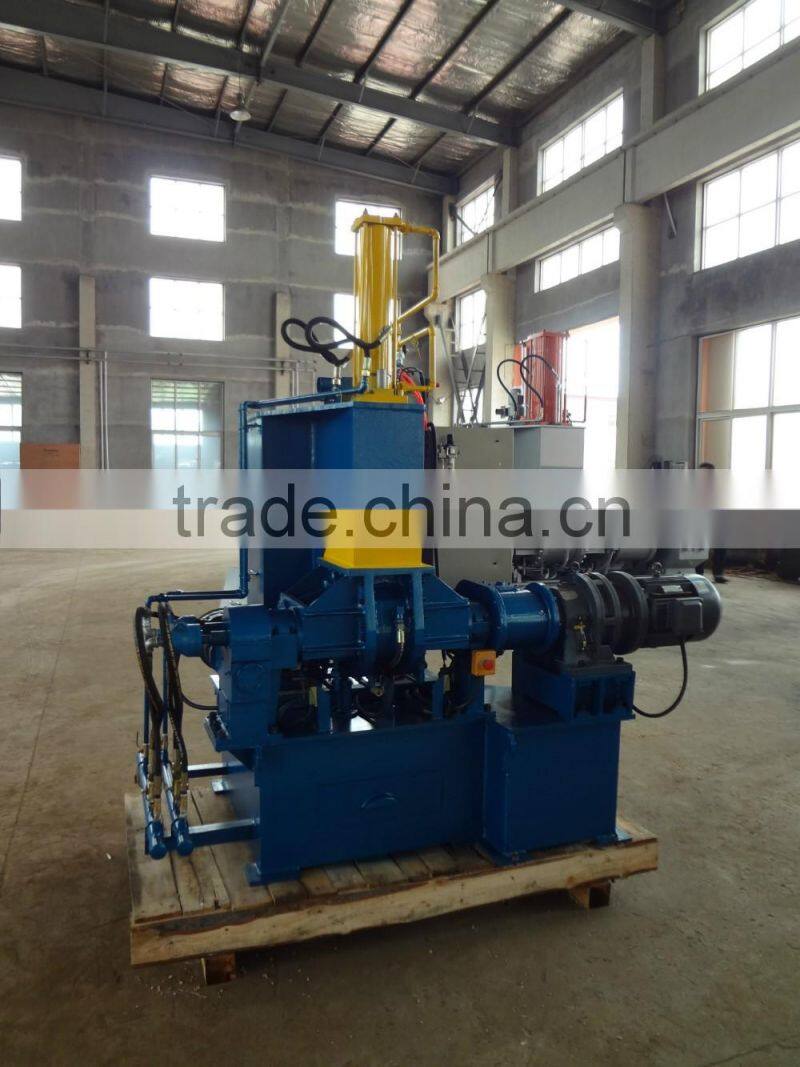

D.kneader Machine photos:
5l
For FCL goods, we usually pack machines with stretched film and then load them to the
container. to ensure safety, we will fix machine with steel .
For LCL goods, we usually pack machines with standard wood boxes first, and then they will be transported .
1 Guarantee : 2 years ,manufacturer sell, We offer lifetime technical support
2After sales:
1 once problems appear, we will reply in 24 hours. And give solutions
2provide facory layout drawing . Engineers available to service machinery overseas; Send the engineers to debug the machines
.
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant…
welcome to visit our factory!
1. Q: Are you a manufacturer or training company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory add is Tieshan industrial Park, Jiaonan, Qingdao, Shandong province, China.
Nearest airport is Qingdao liuting international airport
Kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: Our rubber and plastic machines are popular in the foriengn market. And main products are tyre recyling plant ,press machine and other machine.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspectin before the machines leave the factory.
5 .Q: Are the techncal parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client’s requirement.
6 How to contact us fast? if you do not mind,
Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently
Contact Sophie for quotation NOW:
Skype: sophie.xiao3
Cell: +8613573826806 (whatsApp and viber)
wechat: guangyue1008
Contact Us
- Qingdao Honghesheng Industry Co., Ltd.
- Contact nameSophie Xiao Chat Now
- Phone86-0532-13573826806
- AddressNo. 65, Jiaohe Road, Jiaonan,Jiaonan distrct,, Qingdao, Shandong
