Y98-160 Hydraulic Water Blowing Machine
- China Port
- T/T
You May Like
-
Y98-200 Single Action Hydraulic Bulging Bottled Water Press Machine
-
Y98-300 Hydraulic Water Press Machine For Bulging Vacuum Cup
-
Y98-350 Hydraulic Press Machine For Bulging Metal Products With Spare Parts
-
Hydraulic Water Blowing Press Machine For Bulging Vacuum Flask
-
Four Columns Hydraulic Flask Blowing Press Machine
-
Hydraulic Water Pressing Machine For Auto Parts
Product Details
| Place of Origin | Guangdong, China | Brand Name | Yongheng | |
| Model Number | Y98-160 | Condition | New | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

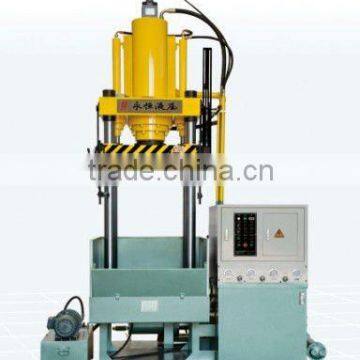

Y98-160 Hydraulic Blowing Water Machine
1.Suitable for:
Y98-160 Hydraulic Blowing Water Machine is used for forming the part with complex surface.Press water machine is designed and manufactured for the realization of this process.Water press machine can be used for the hydraulic bulging process of vacuum cup,thermos,bottle and other tableware and containers made of stainless steel ,cooper,aluminum,iron and other materials.
2.Main Features:
1.Application:for forming the part with complex surface.
2.Speed control of the second section of moving beam;No-load rapid & slow copy deep drawing
3.Safety protection device should be equipped to provide security guarantee for the operators
4.Auto count function should be equipped
5.Locking-mould force and water pressure are adjustable
3.Main technical specification:
DESCRIPTION | UNIT | Y98-160 |
Nominal Capacity | KN | 800 |
Master Cylinder Stroke | MM | 700 |
Nominal Capacity Of Pressurized Cylinder | KN | 800 |
Stroke Of Pressurized Cylinder | MM | 350 |
Max. Capacity Of Injection Cylinder | L | 5.3 |
Max. Injection Pressure Of Injection Cylinder | MPA | 50 |
Max. Shut Height | MM | 1200 |
Working Table Size | MM | 540(L) x 550(W) |
Sliding Platform Size | MM | 450(L) x 380(W) |
Downing Speed | MM/S | 300 |
Pressing Speed | MM/S | 25 |
Return Speed | MM/S | 300 |
Motor Power | KW | 11+2.2 |
Overall Size | MM | 2050(L) x 1500(W) x 3460(H) |
