Home > Products > Modularized Industrial Switch > Super stability Rack-Mount 4x1000M FX(SFP Slot) and 24x100MBase FX 28 Fiber Ports Modularized Managed Industrial Ethernet Switch

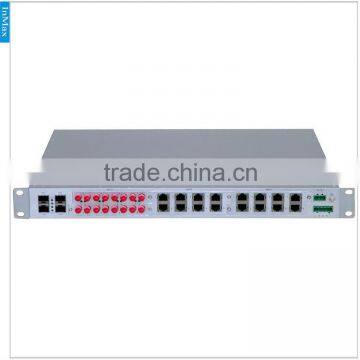

Super stability Rack-Mount 4x1000M FX(SFP Slot) and 24x100MBase FX 28 Fiber Ports Modularized Managed Industrial Ethernet Switch

FOB Price

USD $1,000 - $1,500 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Shenzhen HongKong
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	InMax
Model Number	PT3628

Product Description

InMax PT3628 4G+24Ports Modularized Full Advanced Managed Industrial Ethernet Switch
Main Features
4x1000BaseX (SFP slots) for uplink, 24 x 10/100M BaseTX/FX 3 card slots (PSE+Fast Ethernet) ports downlink
IEC 61850-3 and IEEE 1613(power substation) compliant
Reliable hardware design is suitable for industrial applications
Modularized design for flexible and scalable networks, support all-electrical 8 ports card and all-fiber 8 ports card
InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy
SNMPv3,IEEE 802.1X,HTTPS,and SSH to enhance network security
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning,QoS
IGMP snooping for filtering multicast traffic,GMRP
Easy network management through web browser, CLI, Telnet /serial console, SNMP
Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs
Metal, IP40 protection
Optional front and rear wiring brings convenience for different wiring environment
Overview
PT3628 Series Modularized Advanced Managed Industrial Ethernet Switches equip with up to 4 Gigabit Ethernet ports. The “InMax Ring" redundant ring (recovery time < 20ms),RSTP,STP,and 110/220 VDC or 110/220 VAC dual isolated redundant power supplies increase the reliability of your communications. Optional front and rear wiring brings convenience for different wiring environment. AII these features make PT3628 Series suitable for a variety of industrial applications
Features and Benefits
Ports:· Uplink 4x1000BaseX SFP slots Downlink Up to 24 ports with 100M, 3 card slots Card slots support 8F,8T,4T4F,2F6T,6F2T.
High Reliability
Support Proprietary Protocol "Max Ring" (recovery time < 20ms),STP,and RSTP fornetwork redundancy Support LACP to expand the bandwidth of a switch port, balance the traffic among all the ports in a link aggregation and enhance the connection reliability.
Management & maintainability
Support SNMP v1/v2c/v3 and RMON MIB Group 1, 2, 3, 9
Comprehensive Security
Support 802.1X authentication Support MAC address authentication Support MAC-IP-port binding
Versatile QoS Policies
Offer powerful hardware ACL capability Support different priority criteria: DSCP priority, 802.1p priority, Strict Priority (SP) and Weighted Round Robin (WRR). Support diversified flow-based QoS actions. Based on the ACL defined, the switches can perform the following QoS: rate limit, traffic shape, traffic statistics, and priority marking.
Specifications
Standards	IEEE802.3 IEEE 802.3u IEEE802.3z IEEE 802.3ab IEEE 802.3x for Flow Control IEEE 802.1D-2004 for STP IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple STP IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk
Protocols	IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, SNMP Inform, LLDP, SNTP Server/Client
MIB	MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control	IEEE 802.3x flow control, back pressure flow control

Switch Properties
Priority Queues	4
Max Number of Available VLANs	256
VLAN ID Range	VID 1 to 4094
IGMP Groups	256
MAC Table Size	8K
Packet Buffer Size	2 Mbit

Interface
Fiber Ports	1000BaseX(SFP slots),100BaseFX(ST connector)
RJ45 Ports	10/100BaseTX auto negotiation
Console Port	RS-232 (RJ45 connector)
Alarm Contact	1 relay outputs with current carrying capacity of 2A@250VAC/220VDC

LED
System Led	SYS
Port Led	Copper: Link 1~24, Act 1~24 ,Fiber: Link/ ActG1,G2,G3,G4
Power Led	PWR

Power Requirements
Redundant dual inputs,A C-powered or DC-powered
Power	110,220VDC(88-300V) or 110,220VAC(88-300V)
Input Voltage	24VDC(18~36VDC) 48VDC(36~72VDC) 110/220VAC(88~300V)
Input Current	0.41A@24VDC,10W 0.21A@48VDC,10W 0.045A@220VAC,10W
Input current(Max)	1.83A@24VDC,44W 0.91A@48VDC,44W 0.2A@220VAC,44W
Overload Current Protection	Present
Reverse Polarity Protection	Present
Connector	5-contact terminal blocks

Mechanical Properties
Housing	Metal, IP40 protection
Dimensions	440 x 44.5 x 370mm
Weight	5Kg
Installation	19-inch 1U rack installation

Environmental Limits
Operating Temperature
Standard Models	0 to +60°C (32 to 140°F )
Wide Temp. Models	-40 to +75°C (-40 to 167°F)
Storage Temperature	-40 to +85°C (-40 to 185°F )
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications
Safety	UL 60950-1,CSA C22.2 No, 60950-1 and EN 60950-1
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 Level 5
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Warranty
Warranty Period	5 years

Ordering Information

First:Choose the available switch models;

Available Models	Power Configuration	Wiring Way
PT 3628	SA: Single AC power	F: Front R: Rear
	SD: Single DC power
	AA: Dual AC power
	DD: Dual DC power
	AD: AC power+DC power

Second:Choose available supportable card models;

Available Models	Description
PT 3628-6F2T	6 100BaseFX ST ports + 2 RJ45
PT 3628-4F4T	4 100BaseFX ST ports + 4 RJ45
PT 3628-2F6T	2 100BaseFX ST ports + 6 RJ45
PT 3628-8T	8 10/100BaseTX RJ45 ports
PT 3628-8F	8 100BaseFX ST ports
PT 3628-4G	4 10/100/1000Base-X slots

Dimensions
