10 port network switch, 2G+4F+4T Gigabit Din-rail Managed Industrial Ethernet Switch i610B

FOB Price

US$ 1 - 220 / Piece

1 Piece(Min. Order)

Port Shenzhen or Hong Kong

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	InMax
Model Number	i610B

Product Description

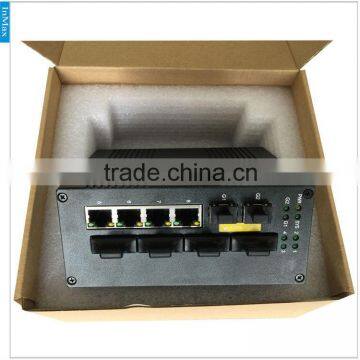

InMax i610B 2G+4F+4T Managed Industrial Ethernet Switch
Main Features
4x10/100BaseTX+4x100BaseFX ports+2x1000BaseX
InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy
SNMPv1/v2c/v3 for different levels of network management
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
IGMP snooping for filtering multicast traffic
Easy network management through web browser, CLI, Telnet /serial console, SNMP
Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs
Metal, IP40 protection,DIN-Rail mounting, wall mounting

Overview
The i610B series managed Industrial Ethernet switches are equipped with up to 10 Ethernet ports. Automatic alarm through E-mail, relay output. InMax Ring Protocol “InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy. RSTP/STP can increase system reliability and your network availability. Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs. The super hardware reliability is especially suitable for industrial applications.

Features and Benefits
Easy network management through web browser, CLI, Telnet /serial console, SNMP
InMax Ring Protocol InMax Ring" (recovery time < 20ms) and RSTP/STP for network redundancy
IGMP snooping for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
QoS and ToS/DiffServ to increase determinism
Port Trunk for optimum bandwidth utilization
RADIUS, TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH
SNMPv1/v2c/v3 for different levels of network management
RMON for efficient network monitoring and proactive capability
Bandwidth management prevents unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Automatic alarm through e-mail, relay output

Specifications
Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.1D-2004 for STP IEEE 802.1w for Rapid STP IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP IEEE 802.3x for Flow Control
Protocols	IGMPv1/v2, GVRP, SNMPv1/v2c/v3, DHCP Client, TFTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSH, SNMP Inform, LLDP, SNTP Server/Client
MIB	MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9
Flow Control	IEEE 802.3x flow control, back pressure flow control

Switch Properties
Priority Queues	4
Max Number of Available VLANs	256
VLAN ID Range	VID 1 to 4094
IGMP Groups	256
MAC Table Size	8K
Packet Buffer Size	1 Mbit

Interface
Fiber Ports	100Base-FX (SC/ST/FC connector) 1000Base-X (SFP slot)
RJ45 Ports	10/100BaseTX auto negotiation
Console Port	RS-232 (RJ45 connector)
Alarm Contact	2 relay outputs with current carrying capacity of 1A@24V

LED
System Led	SYS
Port Led	Copper: Link 1~4, Act 1~4 ,Fiber: Link/ Act5,6,7,8,G1,G2
Power Led	PWR

Power Requirements
Input Voltage	24VDC (12 ~ 36VDC), redundant dual inputs
Input Current	InMax. <0.41A@24VDC,<10W
Overload Current Protection	Present
Reverse Polarity Protection	Present
Connector	6-contact terminal blocks

Mechanical Properties
Housing	Metal, IP40 protection
Dimensions	60.2 x 112.5 x 138.5 mm
Weight	750g
Installation	DIN-Rail mounting, wall mounting

Environmental Limits
Operating Temperature
Standard Models	0 to +60°C (32 to 140°F )
Wide Temp. Models	-40 to +75°C (-40 to 167°F)
Storage Temperature	-40 to +85°C (-40 to 185°F )
Ambient Relative Humidity	5 to 95% (non-condensing)

Standards and Certifications
Safety	UL 60950-1
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 4 EN 61000-4-3 (RS) Level 3 EN 61000-4-4 (EFT) Level 4 EN 61000-4-5 (Surge) Level 4 EN 61000-4-6 (CS) Level 3 EN 61000-4-8 Level 5
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Warranty
Warranty Period	5 years

Ordering Information
Available Models	Transceiver Type	Connector Type	Temperature Range
i610B	2Km Dual-fiber MMF1310nm	SC/PC ST/PC FC/PC	-40°C to +85°C (-40 to 185°F )
	20Km Dual-fiber SMF1310nm
	40Km Dual-fiber SMF1310nm
	60Km Dual-fiber SMF1310nm
	80Km Dual-fiber SMF1550nm
	120Km Dual-fiber SMF1550nm
	20Km-120Km BiDI SMF1310nm 20Km-120Km BiDI SMF1550nm

Dimensions
