IP67 Waterproof Welding Plug and Sockets Connector PIN Connector 9, for Audio Amplifier Connector
- shenzhen
- T/T Credit Card
You May Like
-
Made in China 7pin Circular Connector, DC Male Connectors for LED Display Screen
-
Unshielded 8 Port Cat5 Panel Mount Rj45 Connector With 26-24AWG 1.5A
-
1.5A 250V 8 Port Cat5 Panel Mount Rj45 Connector With Gold-plated
-
Chinese leading IP67 Water-resistant Plastic 8 Port POE Rj45 Connector With 10GBIT/S
-
10/100BASE-T IP67 2 Port Switch Ethernet POE RJ45 connector With Dust Cap
-
Reliable quality utp cat5/cat5e/cat6 cable Plastic shell Waterproof Ethernet Rj45 Connector
Product Details
Place of Origin | Guangdong, China | Brand Name | CNLINKO | |
Model Number | YP-20-C09PE-01-001, YP-20-J09SX-01-001 | Type | XLR | |
Application | Power | Gender | Other, male+female |
Product Description
Specifications
pin connector 91.CE,CCC,CUL,UL,ROHS,ISO9001:2008;
2.IP65/IP67 Waterproof;
3.welding plug and sockets;
4.2/3/4/5/7/9/12 pin.
IP67 Waterproof Welding Plug and Sockets Connector PIN Connector 9, for Audio Amplifier Connector
YP-20 Series connector is widely used the following field:
1. LED display screen industry;
2. audio-visual equipment;
3. medical equipment;
4. industrial control test and measurement equipment;
5. AV systems,broadcast television and communications industry and other fields.

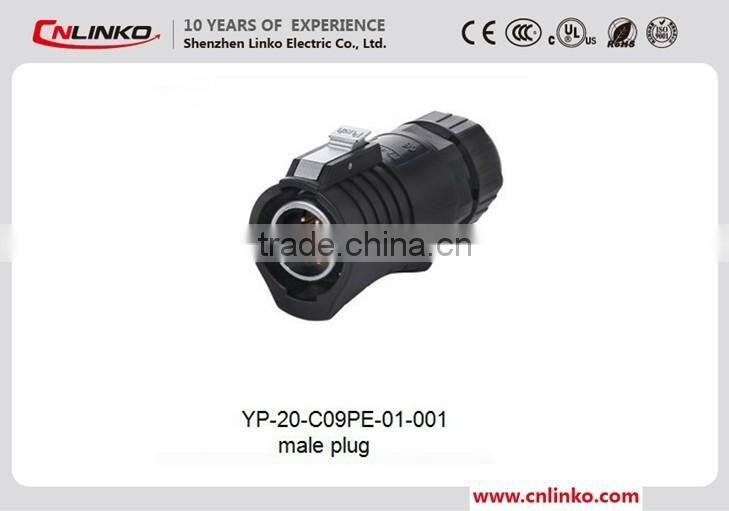

Product Pictures:

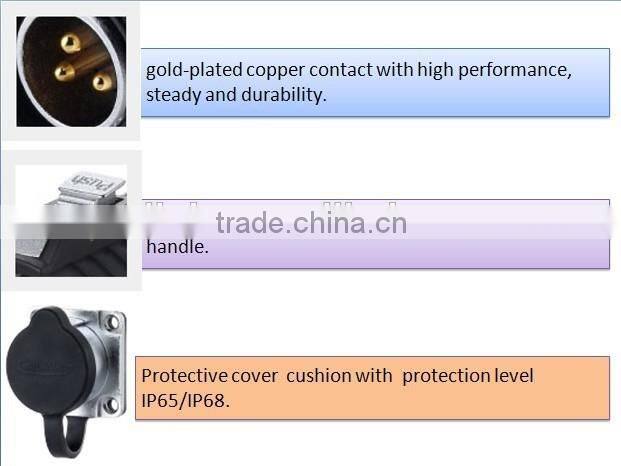

Product Description:
1.multi-pins(2/3/4/5/7/9/12 PINS) for varies industrial demands
2.Zinc alloy material against high frequency noise and electromagnetic interference
gold-plated contact, high performance of corrosion resistance and electrical
conductivity effectively deal with temperature rise.
3.PBT shell performance stable,compression, anti-explosion and anti-deformation
4.unique LINKO clamp, 4 holes for installation ensure stable
5.rated current: 5A rms
6.protection level:IP65/IP67 Waterproof;
7.IP67 Waterproof Welding Plug and Sockets Connector PIN Connector 9, for Audio Amplifier Connector.
Product Datasheet:

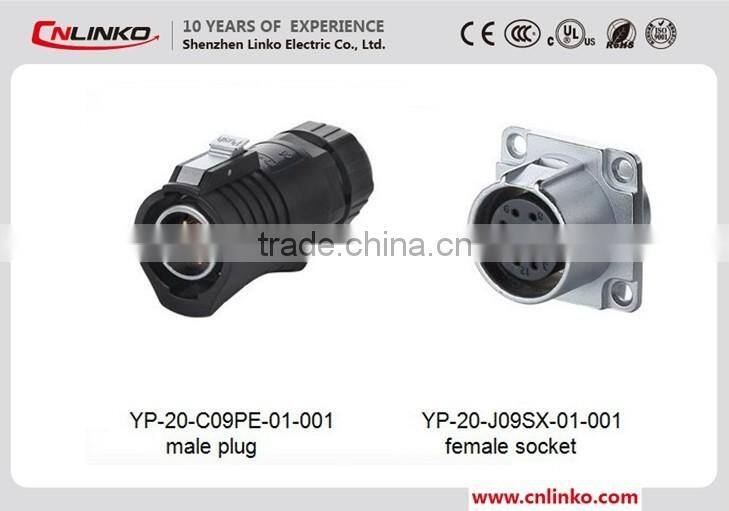

YP-20-C09PE-01-001,YP-20-J09SX-01-001 Male Plug with Female Socket | |
Connecting mode: | plug/unplug |
Protection level: | IP65/IP67 |
Cable specification: | 0.15 mm2 ~ 0.2 mm2 /26~24 AWG |
Diameter range: | Φ5.5mm ~Φ7mm |
Contact diameter×Qty: | Φ1.0×9 |
Current rating(A): | 5A |
Operating voltage(AC.V.rms): | 400V |
Withstand voltage(AC.V)1min: | 1500V |
Contact resistance: | <5mΩ |
Insulation resistance: | >500MΩ |
Durability: | ≥500 mating&unmating cycles |
Temperature rating: | -40°C~80°C |
Method of connecting cable: | solder |
Prevent the combustion level: | UL94-V0 |
Temperature rise: |
|
Produce type: | splice connectors |
Material: | |
Shell&insulated parts: | High performance engineering plastics |
Hardware metal: | Zinc alloy(pearl hard chromium) |
Contact pin: | Copper alloy(gold-plated) |
Spring: | Stainless steel |
Sealing: | Silica gel |
Main characteristics: | |
- Sealed against dust and fluid (IP65/IP67) | |
- Vibration resistance,impact resistance,stretching resistance | |
- With one hand, can quickly insert or pull out | |
Application industries: | |
- Stage equipment | - The smart grid |
- Medical equipment | - Server |
- Solar energy equipment | - Ship equipment |
- Electric power equipment | - Vehicle equipment |
- Communications equipment | - Heavy machinery |

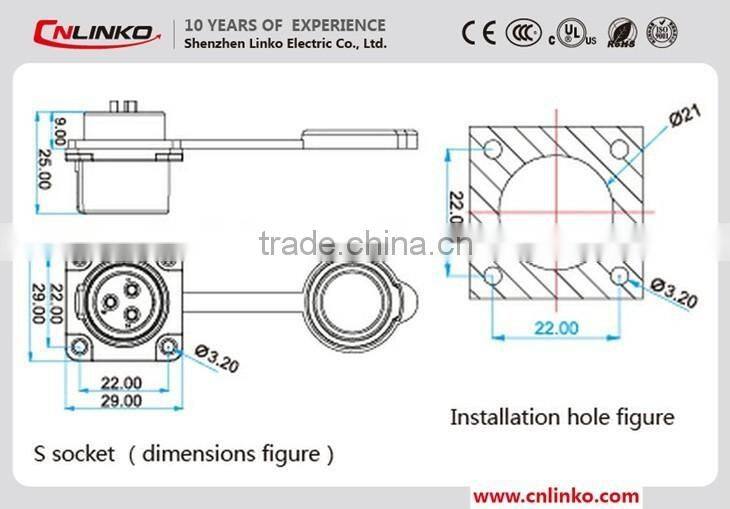

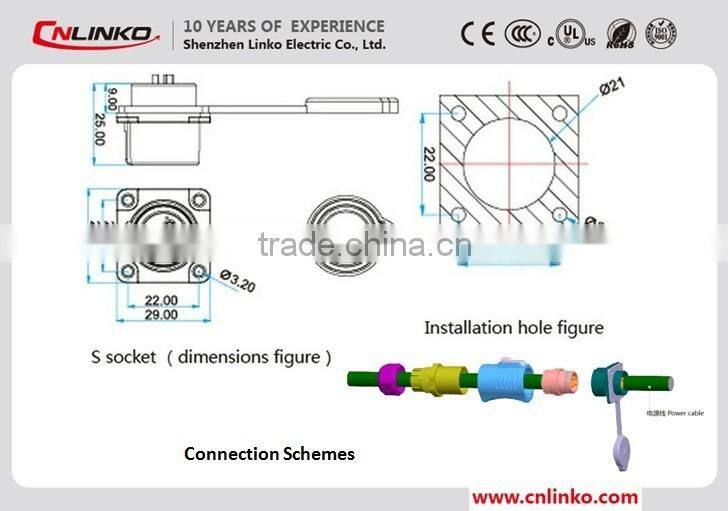

Product Dimensions:
Normally, our price is based on our box packing for splice connectors;
Customized packing is welcome, MOQ of printing customized box is 1000 pcs/model for splice connectors
Delivery Detail: 7-10 working days after received deposit for splice connectors;
You may choose our shipping partner or your own partner for splice connectors;
100% T/T in advance is required after confirming the order for splice connectors.
1.CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
2.Supply OEM service.

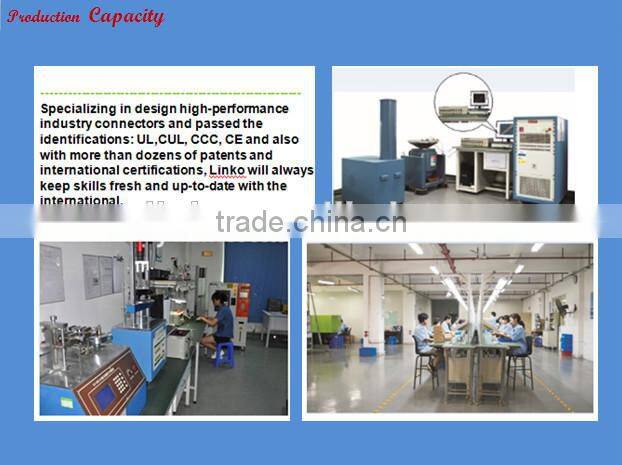

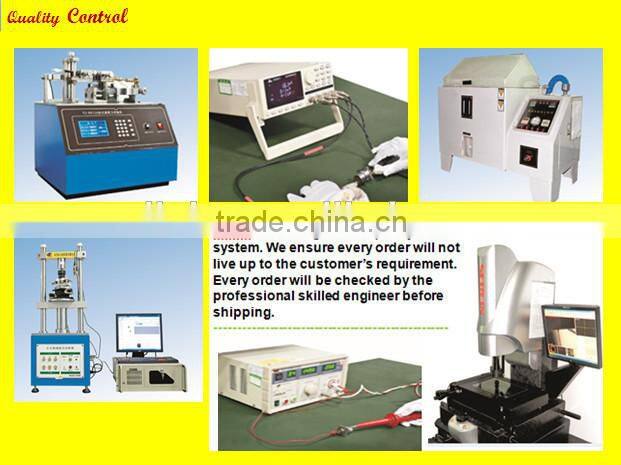

3.We have professional quality control system and R&D department to strictly manufacture each product for splice connectors;
4.100,000 pcs per month for splice connectors;
5.National level laboratory, and have flexible production line, to make quick action to urgent customized needs for waterproof wire connectors;
6.We will supply the best service to you.
TEL: 0086-0755-86960323 FAX: 0086-0755-86960305
Cellphone: 0086-183 1245 0225
Skype: cnlinko09
Q1: What are connectors?

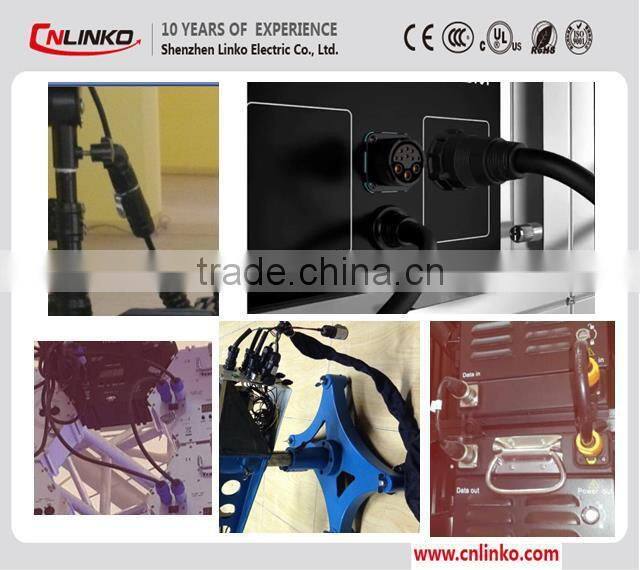

A1: Connectors are connected to the electrical and mechanical components of electrical circuits. See below assembly photos:
(all in all: cable to cable; cable to machines)
Q2: What classes do connectors have?
Shape | Frequency | Function |
circular | high-frequency | for printed board; cabinets; |
rectangular | low frequency | socket connectors; for audio equipment, power, signal, etc. |
Q3: Why to choose CNLINKO? Any advantages?
A3: The answer is Yes. There are 5 major advantages (reasons).
1) Mutual Benefits: Our connectors are with high quality and competitive in price.
2) Customize: We can make the product as per your special request, Shape and Quality can meet your request.
3) OEM: Design your packing box(≥1000PCS per model).
4) Mix Order: We accept mix order, different model and small quantity order.
5) high quality: Our products have passed UL,CUL,CCC,CE and ROHS certification.
Using PBT material that import from abroad, carrying stable,compression, anti-explosion and anti-deformation quality; Using Zinc alloy material against high frequency noise and electromagnetic interference Use gold-plated contact with high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
Q4: Can I order one piece for sample testing usage?
A4: Yes, we recommend you to check the sample before order. Please order the sample from us directly.
Q5: May I have your catalogue and price list for trial order in MOQ quantity?
A5: All our products were shown on alibaba, please have a detailed looking and choose the interested models from our site, sending us inquiry directly, we'll quote you accordingly right away.
Q6: Is there cheap shipping cost to import to our country?
A6: For small order, express will be best. As for bulk order,sea ship way is best but takes much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your door.
Q7:Can we get support if we have our own market position?
A7: Pls inform us your detailed mind on your market demand, we will discuss and propose helpful suggestion for you, to find the best solution for you.
