Made in china waterproof electric male female connector electric plug waterproof male female connector Heavy Duty Connector
- 100000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
Best price IP65/67 waterproof M20 3 pin gold connector pins connector solder pins
-
Made In China M20 2Pin Battery Connector With 20A 500V
-
Top quality IP65/67 waterproof 2 pin audio connector
-
Best selling UL approved waterproof 2 pin connector circular
-
buying online in china IP67 Gold-plated Connector Pin With 20mm size
-
China Suppliers IP67 240V Electrical Connector Pins In harsh Environment
Product Details
Place of Origin | Guangdong, China | Brand Name | CNLINKO | |

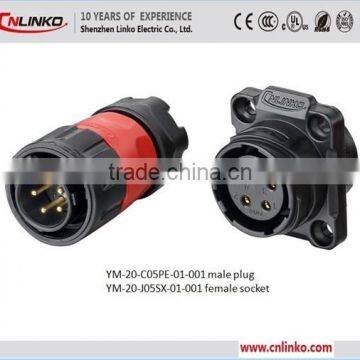

Model Number | YM-20-C05PE-01-001,YM-20-J05SX-01-001 | Type | XLR | |
Application | Power | Gender | Other, male and female |
Product Description
Waterproof electric male female connector electric plug waterproof male female connector Heavy Duty Connector
YM series connectors,using high-end injection molding PBT material,ensuring stable performance,multi-core design of the product,while meeting the needs of a number of power and signal equipment,the central shell distinctive logo,highlighting the latest design cnlinko.
1.Multi-core design styles(2-12 cores),in line with the diversity of industrial demand,signal and power compatible match.
2.PBT material of the protective housing,with characters of fire safety,compression,anti-explosion and anti-deformation
3.Gold-plated contacts,high-strength corrosion resistance and electrical conductivity,effective response to temperature changes in current.
4.1/4 quick bayonet coupling,simple operation,easy installation.
5.Dustproof cover design under off-working condition.
6. 20A rms current rating.
7. Protection level:IP65/IP68.
YM-20-C05PE-01-001,YM-20-J05SX-01-001 | |
Specifications: | |
Connecting mode: | Plug/unplug, |
Protection level: | IP68 |
Cable specification: | 1.0mm2 ~ 1.5mm2 /18~16AWG |
Diameter range: | Φ7mm ~Φ9mm |
Contact diameter×Qty: | Φ2.0x5 |
Current rating(A): | 12A |
Operating voltage(AC.V.rms): | 500V |
Withstand voltage(AC.V)1min: | 2500V |
Contact resistance: | <1mΩ |
Insulation resistance: | >500MΩ |
Durability: | ≥500 mating&unmating cycles |
Temperature rating: | -40°C~80°C |
Prevent the combustion level: | UL94-V0 |
Temperature rise: | 12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C |
Material: | |
Shell&insulated parts: | High performance engineering plastics |
Hardware metal: | Zinc alloy(pearl hard chromium) |
Contact pin: | Copper alloy(gold-plated) |
Spring: | Stainless steel |
Sealing: | Silica gel |
Main characteristics: | |
- Sealed against dust and fluid (IP68) | |
- Vibration resistance,impact resistance,stretching resistance | |
- With one hand, can quickly insert or pull out | |
Application industries: | |
- Stage equipment | - The smart grid |
- Medical equipment | - Server |
- Solar energy equipment | - Ship equipment |
- Electric power equipment | - Vehicle equipment |
- Communications equipment | - Heavy machinery |
Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 7-10 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.
CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
ShenZhen Linko Electric Co., Ltd was established in 2004, is an enterprise specialized in designing and manufacturing industrial connectors & waterproof connector.Our products have UL/CE/RoHS/CCC certificates and can pass TUV testing.
We have a vigorous and creative R&D team with the fullest mastery of the core technology. We commit ourselves to the development of high performance connector producing, and dedicate ourselves to reaching the international leading level.
We insisting on the tenet of "high efficiency, high quality, high prestige" and with years of integration of technology and production process, excellent quality of products and technical services, our company gained high reputation from our customers , such as, Skyworth, Huawei, GREE, Midea, ZTE, Foxconn, DESAY, etc.
Our production of industrial connector includes LP,YP, RJ45, YF, YA,USB,YW, YZ, YM , and other series of products. Base on its high degree of accuracy, high-quality automatic insertion & the self-locking device. Our products are widely used in a variety of challenging environments and situations, such as, LED screen industry, medical equipment, industrial control, detection and measurement equipment, AV system, broadcast television and telecommunications industry, the nuclear industry and military industry and other fields.
We adhere to such principles “Integrity-based, quality-first, technological precedence, & greater perfection”. And we sincerely look forward to the new and old customers' patronage and we will be dedicated to the most outstanding product quality and the most reasonable processing cycle, to provide you with the most satisfactory service.
