Product Details
Place of Origin | Guangdong, China | Brand Name | CNLINKO | |
Model Number | LP-20-C02PE-01-001,LP-20-J02SX-01-001 | Type | XLR | |
Application | Power | Gender | Other, male and female |
Product Description
Made in china 2pin cable power connector manufacturers IP 67 waterproof connector coaxial connector
LP-20 series of products , containing RJ45,USB,Power,fiber optics and other models with hole size 21mm to meet different needs of industry and we use nickel -plated and zinc alloy to guarantee quality and apply with international environment protection of industrial equiment as well.LP-24 series with multi-industry extension, USB,telecommunications,signal,fiber optic.HDMI,etc,
1.21mm installation hole figure
2.easily lock by plug/unplug snap fastener ,ensure safe and stable.
3.varies types for choice,include power , signal ,usb.rj45,fibre optics,meet different industrial demands.
4.stable power and signal transmission,multi-pin power(2-12 pin) with positive and negative type.
5.formed wire technology on pins keep much stable while transmit and tempera ture rise.
6. solderand pressure on copper needles completely comply with outdoor installation.

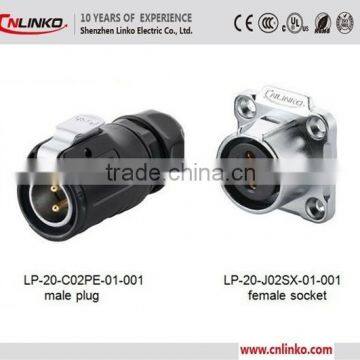

LP-20-C02PE-01-001,LP-20-J02SX-01-001 | |
Connecting mode: | plug/unplug |
Protection level: | IP65/IP68 |
Cable specification: | 2.5 mm2 ~ 4 mm2 /14~12 AWG |
Diameter range: | Φ8mm ~Φ12mm |
Contact diameter×Qty: | Φ3.0×2 |
Current rating(A): | 20A |
Operating voltage(AC.V.rms): | 500V |
Withstand voltage(AC.V)1min: | 2500V |
Contact resistance: | <1mΩ |
Insulation resistance: | >500MΩ |
Durability: | ≥500 mating&unmating cycles |
Temperature rating: | -40°C~80°C |
Method of connecting cable: | solder |
Prevent the combustion level: | UL94-V0 |
Temperature rise: | 20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C. |
Produce type: | splice connectors |
Material: | |
Shell&insulated parts: | High performance engineering plastics |
Hardware metal: | Zinc alloy(pearl hard chromium) |
Contact pin: | Copper alloy(gold-plated) |
Spring: | Stainless steel |
Sealing: | Silica gel |
Main characteristics: | |
- Sealed against dust and fluid (IP65/IP68) | |
- Vibration resistance,impact resistance,stretching resistance | |
- With one hand, can quickly insert or pull out | |
Application industries: | |
- Stage equipment | - The smart grid |
- Medical equipment | - Server |
- Solar energy equipment | - Ship equipment |
- Electric power equipment | - Vehicle equipment |
- Communications equipment | - Heavy machinery |
Normally, our price is based on our box packing.
Customized packing is welcome , MOQ of printing customized box is 1000 pcs/model
Delivery Detail: 7-10 working days after received deposit .
You may choose our shipping partner or your own partner .
100% T/T in advance is required after confirming the order.
CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.
Supply OEM service .
We have professional quality control system and R&D department to strictly manufacture each product.
100,000 pcs per month .
National level laboratory , and have flexible production line, to make quick action to urgent customized needs.
We will supply the best service to you . Anything ,please feel free to contact us at:
ShenZhen Linko Electric Co., Ltd was established in 2004, is an enterprise specialized in designing and manufacturing industrial connectors & waterproof connector.Our products have UL/CE/RoHS/CCC certificates and can pass TUV testing.
We have a vigorous and creative R&D team with the fullest mastery of the core technology. We commit ourselves to the development of high performance connector producing, and dedicate ourselves to reaching the international leading level.
We insisting on the tenet of "high efficiency, high quality, high prestige" and with years of integration of technology and production process, excellent quality of products and technical services, our company gained high reputation from our customers , such as, Skyworth, Huawei, GREE, Midea, ZTE, Foxconn, DESAY, etc.
Our production of industrial connector includes LP,YP, RJ45, YF, YA,USB,YW, YZ, YM , and other series of products. Base on its high degree of accuracy, high-quality automatic insertion & the self-locking device. Our products are widely used in a variety of challenging environments and situations, such as, LED screen industry, medical equipment, industrial control, detection and measurement equipment, AV system, broadcast television and telecommunications industry, the nuclear industry and military industry and other fields.
We adhere to such principles “Integrity-based, quality-first, technological precedence, & greater perfection”. And we sincerely look forward to the new and old customers' patronage and we will be dedicated to the most outstanding product quality and the most reasonable processing cycle, to provide you with the most satisfactory service.
