Product Details
| Place of Origin | Guangdong, China | Brand Name | CNLINKO usb b type right angle connector | |
| Model Number | YU-USB3-CPI-01-001 | Type | USB | |
| Application | Other, data | Gender | Other, male and female |
Product Description

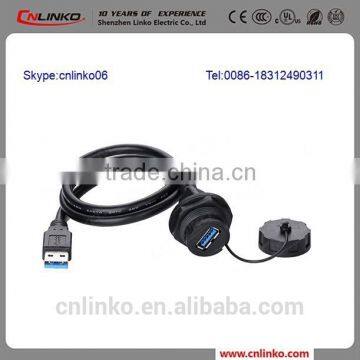

Automotive Electrical USB3.0 Connector Usb B Type Right Angle Connector
USB plugs and sockets are applicable to data transmission with quickly plug,fast transfer rate and strongly extensibility .With PBT shell performance stable, compression, anti-explosion and anti-deformation unique dock connecting to extend cable length and Solid connections system can provide the solutions for data transmission in harsh environments, easy to install and operate.
They are widely used in computers,digital cameras,scanner and other transmission equipment.Varies types,can achieve male and female conversion docking,independent female,male with cable and so on
YU-USB3-JSX-01-001 | |
| Specification | |
| Connecting mode: | Quickly bayonet connect |
| Protection level: | IP67 |
| Cable specification: | 0.15 mm2 ~ 0.2mm2 /26~24AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | 9 |
| Current rating(A): | 1.5A |
| Withstand voltage(AC.V)1min: | 1000V |
| Contact resistance: | <30mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | solder |
| Prevent the combustion level: | UL94-V0 |
| Produce type: | Usb Panel Mount Connector |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP68) | |
| - Vibration resistance,impact resistance,stretching resistance | |
| - With one hand, can quickly insert or pull out | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
1. 5pcs to a box, 40 boxes to a carton,or use customized packing with MOQ1000 pcs/model boxes.
2. Lead time: 3-5 working days after received deposit for Usb Panel Mount Connector
3. DHL/UPS/Fedex/EMS/TNT(door to door) or use customer partner
1. Supply OEM and ODM service for Usb Panel Mount Connector
2. With professional quality control system and R&D department
3. To make customized needs with national level laboratory
4.Free samples are available for Waterproof Usb Panel Mount Connector
5. supply the best service to you with the contact details below:
TEL:0086-0755-86960323 FAX:0086-0755-86960305
Cellphone: 0086-18312490311
Skype: cnlinko06
| | | |
| | | |
