single shaft paddle mixer for plastic

  single shaft paddle mixer for plastic :

Video:  /videoLDHS.html

specification:

A. Features:
1.  Paddle
2. CE, ISO, SGS, BV approved;
3. Wide application in: Powder and liquid mixing (like Food, Pharmaceutics; Agriculture; Dyestuff; Chemicals), small fiber, and paste with low viscosity

B. General Introduction:

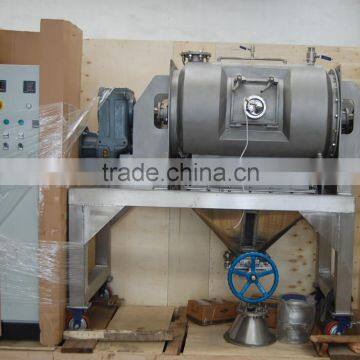

single shaft paddle mixer is characterized by high mixing precision, and wide application to plastic, chemical industries, and building lines. The major sections of a mixer are barrel, paddles, feeding ports, discharging port and driven unit!!
paddles are set on the main shaft. When the mixer is on operation, the special mixing structure makes the material to be mixed continuously! The dead corner is absolutely avoided under the simultaneous radial and longitudinal movement, thus high accuracy mixing effect is achieved!
Our paddle mixer can be equipped with heating or cooling jacket if temperature control is required. Besides, all of our powder mixer can tolerate about 10% liquid additives! We will add spraying or atomizing unit inside the tank!

C. Standard configuration:
1. Drive Unit: Cycloid reducer or gear reducer
2. Motor brand: Siemens (made in China)
3. Gear box brand: Chinese Famous brand (Huaxing)
4. Bearings: Chinese Famous brand
5. Discharging valve: pneumatic flap valve (no dead angle when mixing).
6. Main Shaft Seal
Air-purged seal and stuffing seal for powder material
Mechanical seal for liquid material
7. Voltage and Hz
380V 3Phases 50hz or in accordance with it in the using place
8. Top Cover
Could be fully open so as to clean, with safety grid and limit switch to make sure safety operation for workers
9. Normal duty type: start the mixer first and then load the material
10. Surface treatment: painting, polishing, passivation, blasting, acid-picking and so on
11. Packing in pallet or wooden case

D.Additional configuration:
1. Driven unit: Many worldwide famous brands are for option: SEW, ABB, Siemens and so on
2. Bearings: NSK/TNT and so on
3. Heating/cooling jacket: water, oil, steam as the cooling or heating medium
4. Spraying system
5. Heavy duty type ( loading your material into the mixer first and then start the mixer)
6. Platform: we build the platform for you or we design it and you build it locally
7. Mixing system: including packing machine, bucket elevator, Sieve, screw conveyor and so.
8. Customizing according to client’s specific requirement
9. High speed choppers can be added inside the mixing tank to promote the mixing effect

E: mixers need to be customized according to the different cases, the cases are as below:
1. Agglomerated material larger than 5mm is contained in the raw material
2. Bulk density of the raw material bigger than 3kg/l
3. Materials that are easy to get damp and not allowed to be exposed to the atmosphere, the mixer need to be vacuumized or negative pressure
4. Fill compressed air to the mixer barrel, and keep the pressure
5. Material with a large friction coefficient, mixer need to do a special Wear-resistant surface treatment
6. Material is not allowed to contact with the metal surface during mixing process
7. Mixer need to be heated up to 200 Celsius degree
8. Heavy duty (loading material into mixer before turning on it) is required.
