Home > Products > Printing Machinery > automotic flexgraphic printing machine

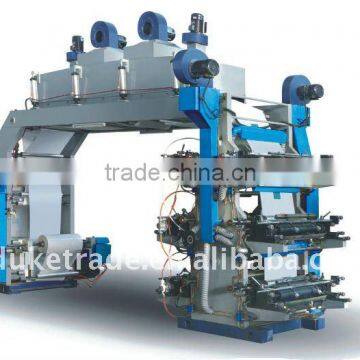

automotic flexgraphic printing machine
- Ningbo
- T/T
You May Like
Product Details
| Condition | New | Plate Type | Other, PE PP PVC OPP film | |
| Place of Origin | Zhejiang, China | Brand Name | Duke | |
| Model Number | YT | Usage | Paper Printer | |
| Automatic Grade | Automatic | Gross Power | 55KW | |
| Dimensions(L*W*H) | 4.8*3.0*2.8mm |
Product Description
Specifications
Printing many material film , bag , paper and woven bag . as you want to get , we can supply .price is negotiable
Two groups of special color are added based on the original four-color printing. It features rich printing colors, high-quality printed matters and high printing speed.
1. Low speed and full load start up; stable running by tension control when increasing and decreasing speed , noise is decreased.
2. High dots presentation rate under high speed; clear and vivid stratification of screen printing
Printing width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | 1800mm | 2000mm | |||||
Printing color | PC:6+0;5+1;4+2;3+3 | ||||||||||||
Printing length | 7.5"-40"/7.5"-50"/7.5"-60"/7.5"-70"/7.5"-80" | ||||||||||||
Printing plate lifting system | Pneumatic/Hydraulic press control/Menu | ||||||||||||
Mechanical speed | 90m/min | ||||||||||||
Printing speed | 70m/min | ||||||||||||
Anilox cylinder | Metal: 10DK-120DK(Germany) | ||||||||||||
Register precision | Longitude:±0.25mm Transverse:±0.25mm | ||||||||||||
Rewinder/Unwinder DIA | ø 600mm | ||||||||||||
Master motor | 3.7KW | 3.7KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW | 11KW | 11KW | |||||
Unwinder motor | 1.1 KW | 1.5 KW | 2.2 KW | 3.0 KW | |||||||||
Rewinder motor | 1.5 KW | 2.2 KW | 3.0 KW | 3.7KW | |||||||||
Electrical header | 14KW | 16KW | 20KW | 22KW | 24KW | 26KW | 28KW | 30KW | |||||
Blower of header | 1.5KW×2 | 1.1KW×3 | 1.1KW×3 | 1.1KW×3 | 1.5KW×3 | 1.5Kw×3 | 2.2KW×3 | 2.2KW×3 | |||||
Blower of nature wind | 0.75 KW | 0.75 KW | 1.1 KW | 1.1 KW | 1.1 KW | 1.5KW | 1.5KW | 1.5KW | |||||
Inking motor | 750W | 750W | 750W | 750W | 750W | 750W | 750W | 750W | |||||
Master frequency converter | Panasonic/ Toshi batransducer Japan | ||||||||||||
Bearing | Japan(NSK) | ||||||||||||
Unilateral bearing | ASNU (Germany) | ||||||||||||
Weight | 4500Kg | 4750Kg | 56000Kg | 5250 Kg | 5500Kg | 5750Kg | 6000Kg | 6300 Kg | |||||
Master power | 25KW | 27KW | 34KW | 37KW | 43KW | 47KW | 55KW | 58KW | |||||
Dimension (L×W×H) | 4.8m | 4.8m | 4.8m | 4.8m | 4.8m | 4.8m | 4.8m | 4.8m | |||||
