DK-1300 A3,A4 Double Knife Roll Paper Material Paper Cutting Machine Price
- Ningbo Or Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
DK-1100/1300 Factory Direct A4 A3 Paper Roll Cutting Machine
-
DK-1100/1300 PLC Control Automatic A4 A3 Roll Paper Cutting Machine
-
DK-1100/1300 High Speed Automatic A4 Paper Cutting Machine
-
GTSF-500 Stretch Film Rewinding Machine
-
Full Automatic Stretch Film Rewinding Machine
-
High Quality DKHHJX-1100-1600 Servo Control Automatic Paper Cross Cutter Machine
Product Details
| Condition | New | Type | Other, Paper Cutting Machine, Full Automatic Paper Cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Duke | Model Number | DK-1100/1300 | |
| Voltage | 380v/220v | Power(W) | 20KW | |
| Dimension(L*W*H) | 17500x2250x2000mm | Weight | 2T | |
| Certification | CE | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Paper Cutting Machine Price1.Automatic type ,4-5T/8hour
2.A4 A3 paper cutting
3.PLC,Servo control
4.In stock
Detail of Paper Cutting Machine Price
Paper Cutting Machine Price Use and characteristics:
This machine is mainly used in the production of A3, A4 copy paper cutting.Servo motor to control the cutting length, with high precision, mechanical stability, less waste and so on
This machine is suitable for all kinds of paper, paper plastic compound class, color printing compound packing material type and other large roll cut-off cut. 1. This machine adopts PLC touch screen control, servo motor, control, fixed-length cut. 2. Transmission using pneumatic, photoelectric sensors, centralized control, the machine set of light, electricity, gas one, simple, shear and high precision, mechanical stability, low noise. 3. Motor speed regulation, automatic counting, alarm stop, and magnetic tension control. Can longitudinal sections of cutting, waste side with fan automatically excluded.
a3 a4 Paper Cutting Machine Products Details:
Model | DK-1100 | DK-1300 |
Effective width | 1100mm | 1300mm |
Maximum diameter of raw materials | Φ1400mm | Φ1400mm |
Minimum width of vertical cut | 50mm | 50mm |
Cutting Length | 20-400mm | 20-400mm |
Cutting speed | 10-140m/min | 10-140m/min |
Cutting precision | ±0.2mm | ±0.2mm |
Total power | 19kw | 20kw |
Weight | 7000kg | 7500kg |
Dimensions(L×W×H) | 17500x1950x2000mm | 17500x2250x2000mm |
Skype: ritayuan99

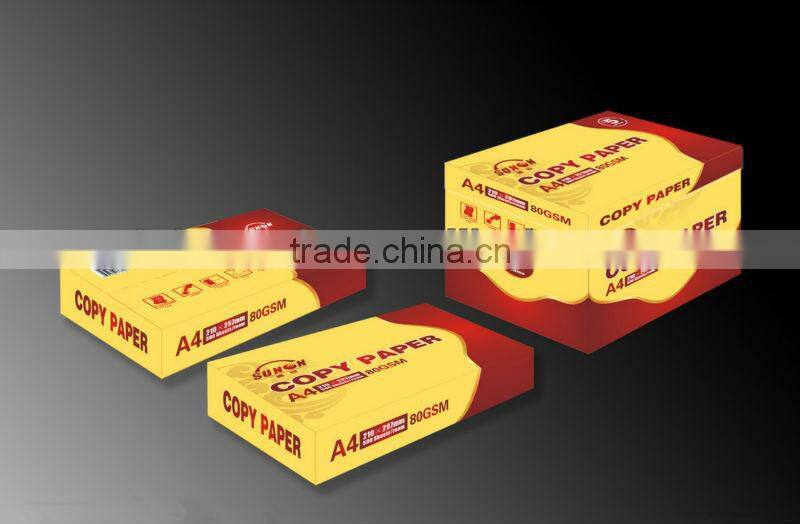

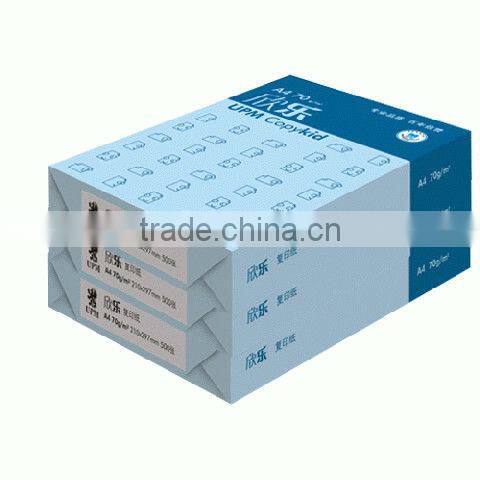

Finished A3 A4 Paper Usage:
Automatic A4 paper Stacker:
Paper Cutting Machine Price Feeding Unit: Roll Paper As Raw Material , with air cylinder
The Paper Cutting Machine Price Magnetic powder: Tension Control

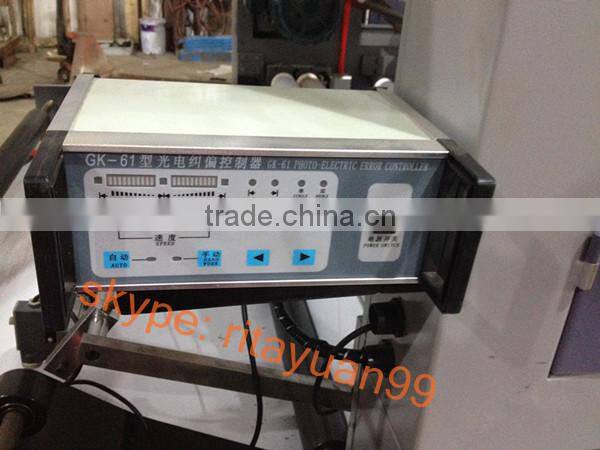

A4 Paper Cutting Machine Price Electric Error Controller :
The Paper Cutting Machine Price Circular Knife and Flat Knife For Cross Cutting And Length Cutting: with Servo motor control

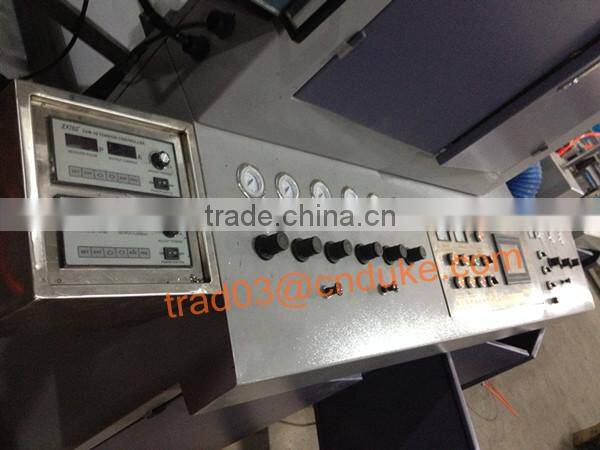

A4 A3 Paper Cutting Machine --Computer Control Plate: With PLC
Paper Cutting Machine Price Traction Unit :

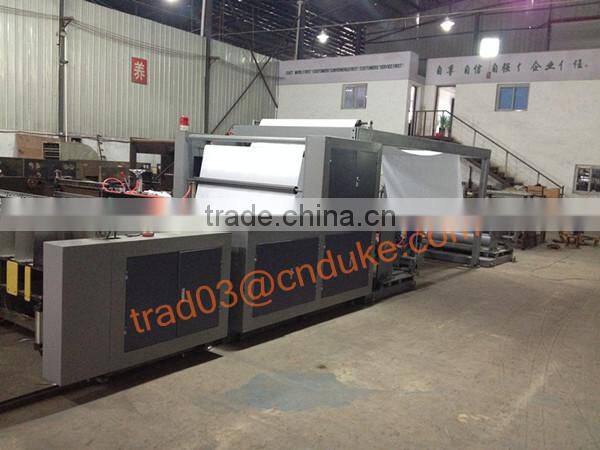

A4 A3 Paper Cutting Machine Complete Line :
Four Paper Roll Material Feeding : 4-5T/8hours
Two Paper Roll Material Feeding Model: 2-3T/8 hours

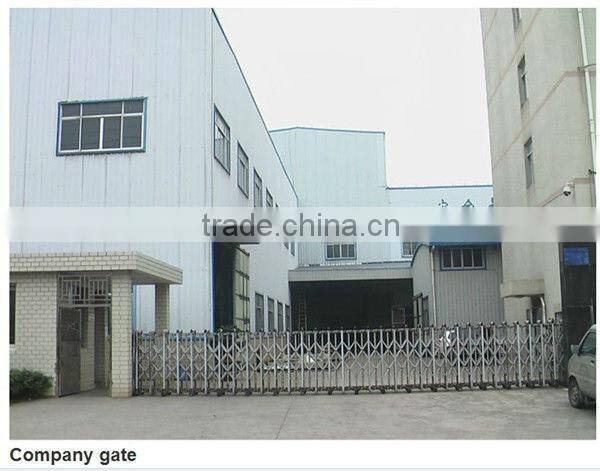

Company Photos:
