HDPE /LDPE /LLDPE Vest bag extruder machine
- Ningbo
- L/C D/P D/A Credit Card PayPal
You May Like
-
HDPE /LDPE /LLDPE plastic extruder machine for plastic bag
-
HDPE /LDPE /LLDPE Mini Blowing film machine and extruder film machine
-
single layer HDPE /LDPE /LLDPE plastic bag extruder machine price
-
High speed and hot selling Pe Plastic extruder film machine
-
High speed plastic bag extruder price for HDPE /LDPE /LLDPE
-
PE extruder plastic bag film blowing machine with good quality
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Other, Yes, Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Duke | Model Number | SJ-50-700 | |
| Voltage | 380V 50HZ | Power(W) | 11KW | |
| Dimension(L*W*H) | 2800x1900x3200 | Weight | 2.5T | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
HDPE /LDPE /LLDPE Vest bag extruder machine Specification:
This Blown Film Extruder used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film, bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
Main Technical Variables:
Model | SJ-700 | SJ-900 | SJ-1100 | SJ-1350 |
Diameter of screw | φ50 | φ55 | φ60 | φ65 |
Rcduced diameter of film(mm) | 100-600 | 200-800 | 300-1000 | 400-1200 |
Single-face Thickness of film(mm) | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 | 0.01-0.10 |
Max.Extrusion(Kg/h) | 35 | 50 | 65 | 80 |
L/D | 28:1 | 28:1 | 28:1 | 28:1 |
Power of main moto(kw) | 11 | 13 | 19 | 21 |
Outline diameter(L x W x H) (mm) | 5000 x 1600 x 3800 | 5600 x 2200 x 4700 | 6500 x 2300 x5150 | 6500 x 2500 x5150 |
Weight(T) | 1.8T | 2.2T | 2.6T | 2.8T |
OPTIONAL EQUIPMENT:
1) AUTO LOADER
2) EMBOSSING ROLLER
3) FILM CORONA TREATER
4) DIE ROTARY DEVICE
5) FAST SCREEN CHANGER
Optional Device Pic:
Finished Plastic Film Usuage: package or plastic bag making
Detail Picures:
The Vest bag extruder machine for HDPE /LDPE /LLDPE :

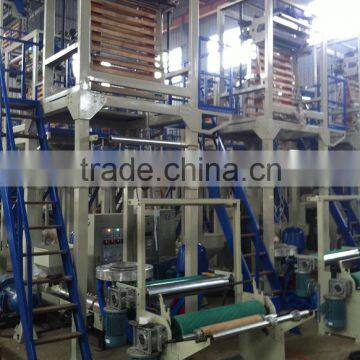

The High speed vest bag extruder machineComplete Set Pictures:
The Factory Direct
Gusset For Plastic Bags :
Finished Rewinder Unit:
Welcome To Contact Me Any Times:
