SP380II Rework Station With Laptop Motherboard Diagnostic for Toshiba /asus /vga Chip Repair

FOB Price

US$ 1 - 1 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Shuttle Star
Model Number	380II	Voltage	220V
Current	10A	Rated Capacity	4.5KVA
Rated Duty Cycle	100%	Dimensions	L660W630H600mm
Weight	Appox 60kg	Usage	BGA Rework, repair the chip on motherboard
Certification	CE ISO 9001 20008	After-sales Service Provided	Engineers available to service machinery overseas

(RW-B400C / RW-380II) desktop/laptop/xbox/ps3 bga rework station

Specification:

BGA rework station (RW-B400C 380)
PCB dimension	W5050~W450400mm
PCB thickness	0.5~4mm
Working table adjustment	+/-50mmforward/backward,+/-200mm left/right
Temperature control	K-type thermocouple, close cycle controlled
PCB locating way	Jip

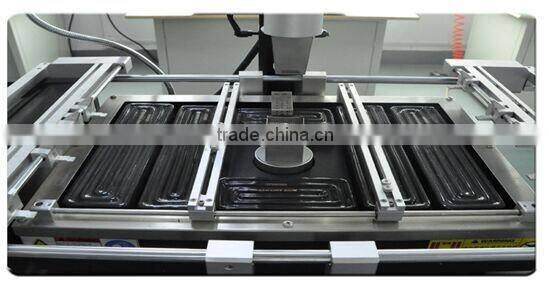

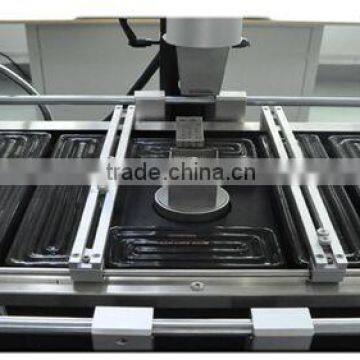

Area heater	Infrared 2700w
Top heater	Hot gas 400w
Bottom preheat	Hot gas 800w
Power supply	Single-phase 220,50/60Hz. 4.5kw
Machine dimension	L660W630H600mm
Machine weight	Approx. 60kgs

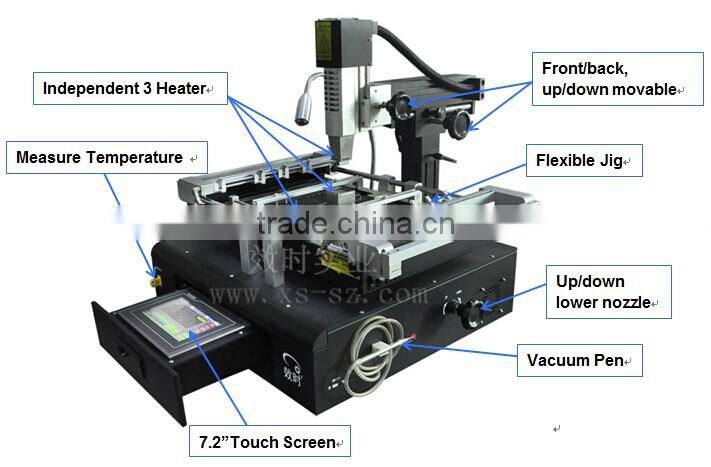

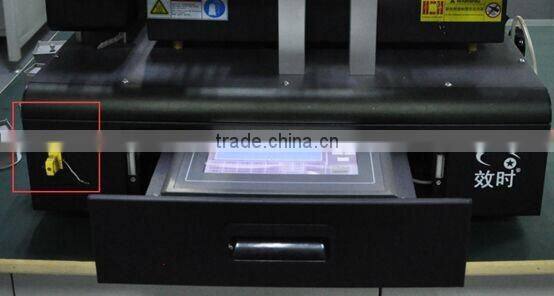

PLC control,realtime temperature curve display,

able to display temperature curves and detecting curves at the same time;

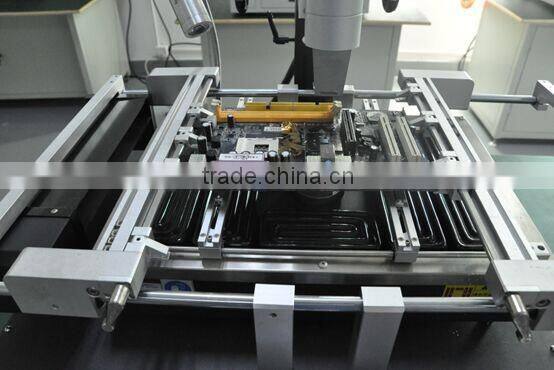

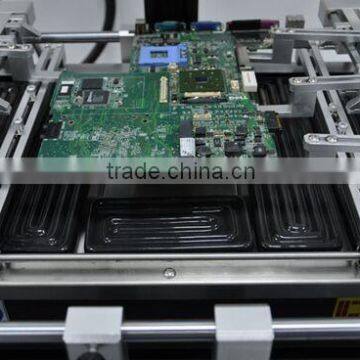

Adjustable PCB positioning support, enables easy and fast positioning of the PCB board .

The supports for the BGA soldering supporting frame are mirco-adjustable to restrain local sinkage

1. Made of quality heating material;desoldering and solding procedures of BGA are precisely controlled;

2. The movable heating head,which is able to move freely horizontally,is easy to be operated;

3. The temperature of the upper and lower hot air guns can be precisely controlled according to their spectific

temperature, the infrared constant temperature heating zone at the lower part and the appropriate

temperature-control settings make the rework safer and more reliable .

4.Powerful cross flow fans cool the lower heating area rapidly.

5.Buzz after solding is finished or desoldering;hand vacuum pen is adjustable for removing BGA;

6.Both the upper and lower parts are equipped with over temperature alarming and protection apparatus.

17.With different alloy hot gas nozzles,easy to replace, it could be tailored as per the specific requirements.
