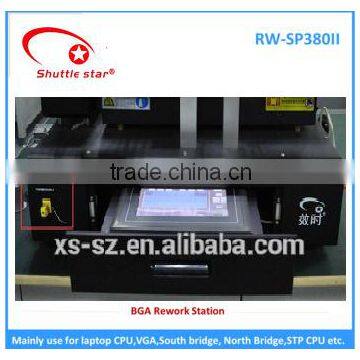

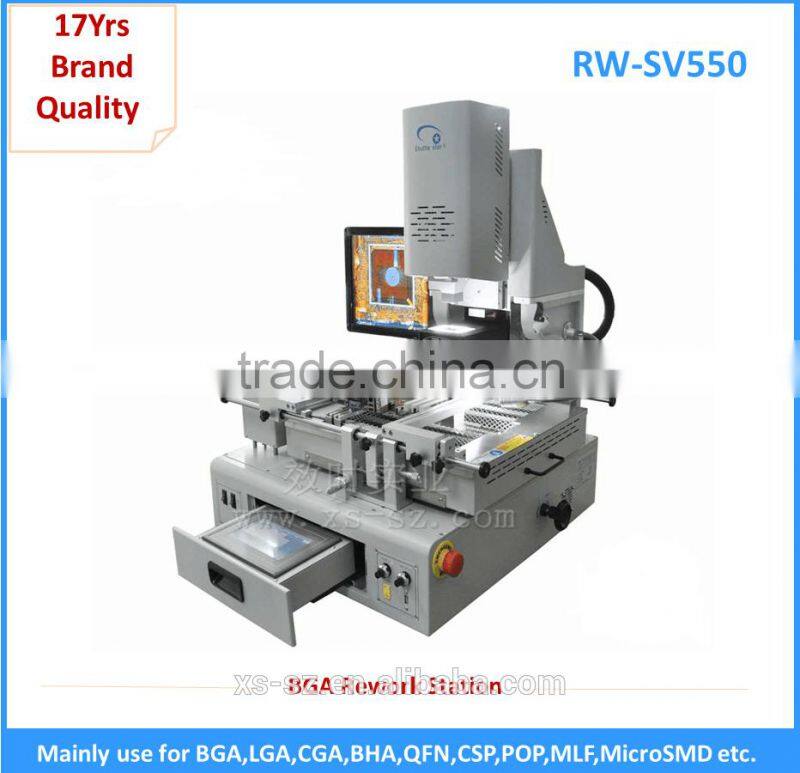

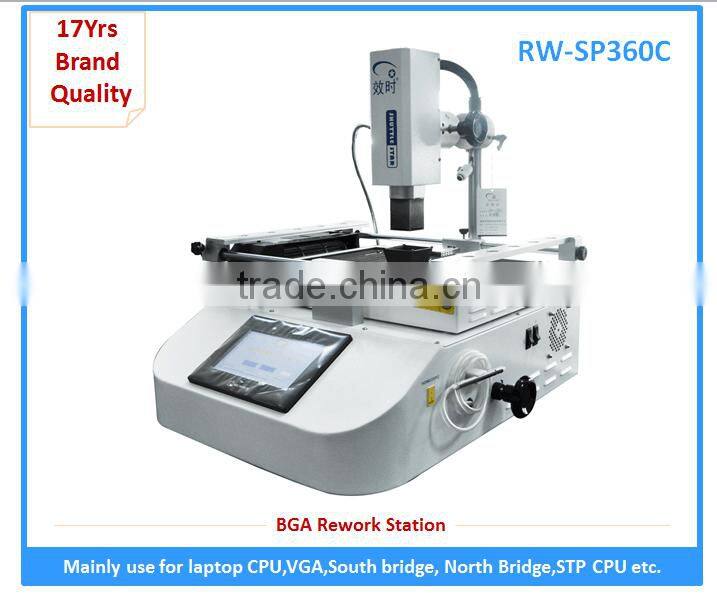

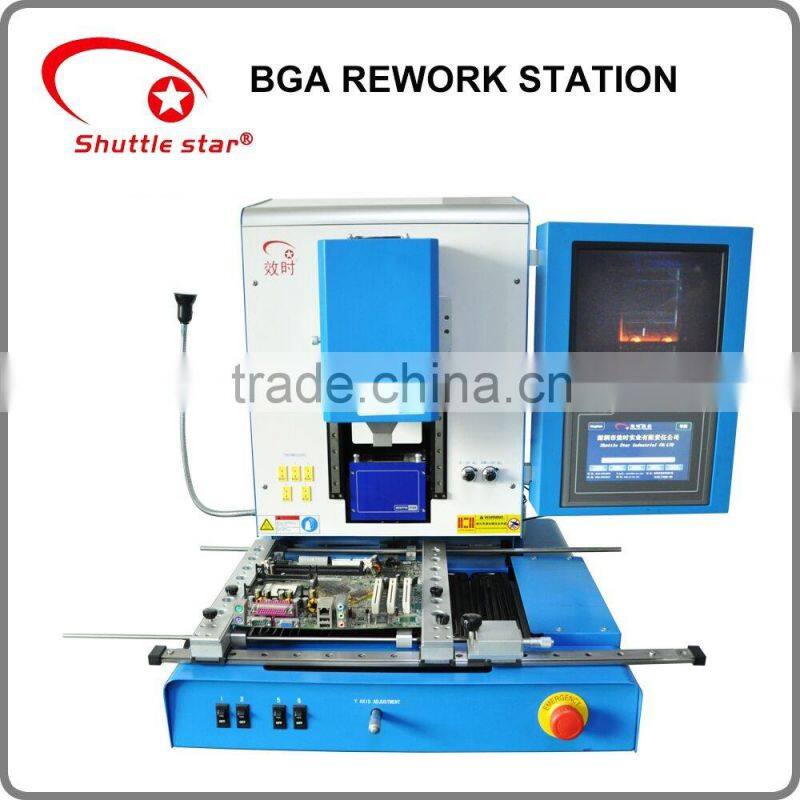

SMD Soldering Station Samsung/htc Motherboard Welding Machine

SMD soldering station samsung/htc motherboard welding machine

Product Application

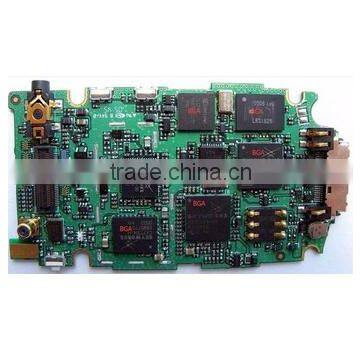

Desktop,laptop, xbox,ps3,ps4,smart phone

Main Features

1. Made of quality heating material;desoldering and solding procedures of BGA are precisely controlled;

2. The movable heating head,which is able to move freely horizontally,is easy to be operated;

3. The temperature of the upper and lower hot air guns can be precisely controlled according to their spectific
temperature, the infrared constant temperature heating zone at the lower part and the appropriate
temperature-control settings make the rework safer and more reliable .

4.Powerful cross flow fans cool the lower heating area rapidly.

5.Buzz after solding is finished or desoldering;hand vacuum pen is adjustable for removing BGA;

6.Both the upper and lower parts are equipped with over temperature alarming and protection apparatus.

7.With different alloy hot gas nozzles,easy to replace, it could be tailored as per the specific requirements.

Machine Parts

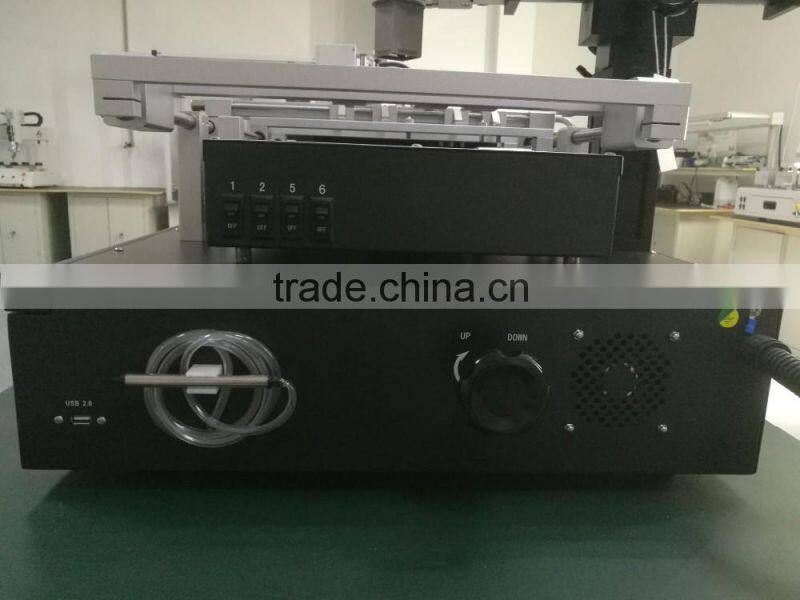

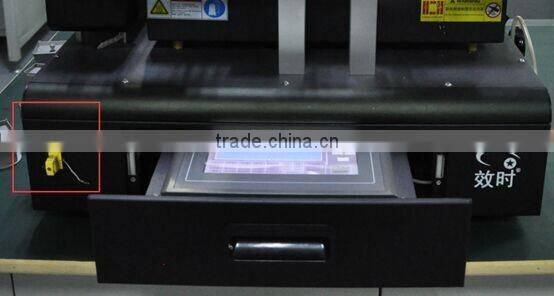

Name: Drawer type PLC

Original: China

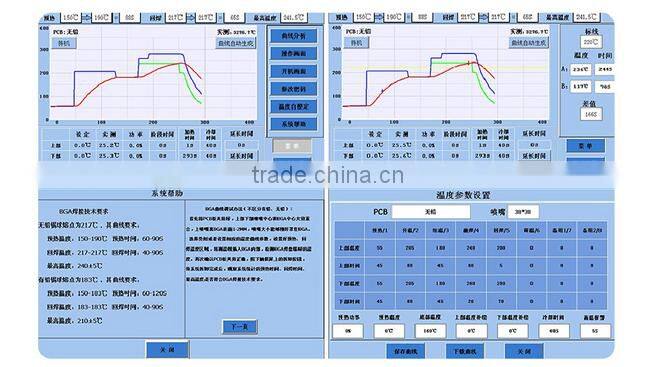

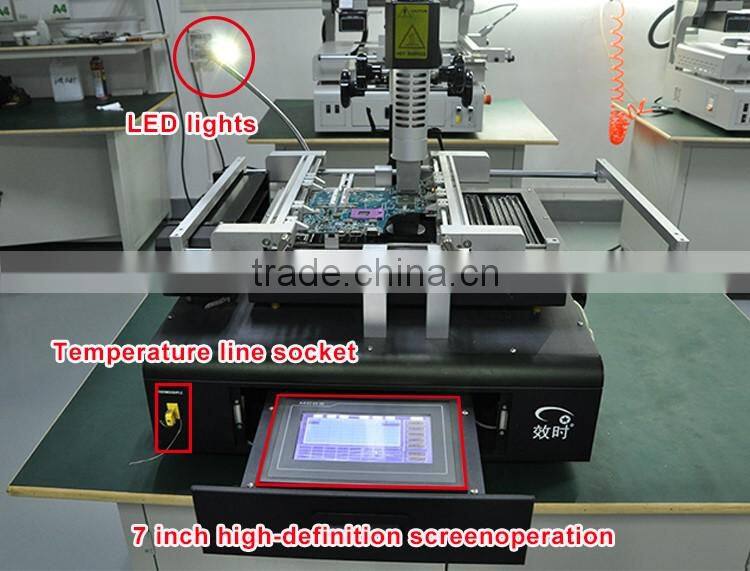

PLC control,realtime temperature curve display

Machine Parts

Name: Vacuum pump
Original: China
Pick up the chips

Machine Parts

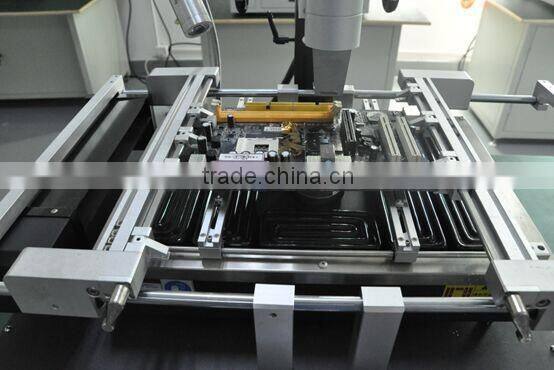

Name: Flexible jigs
Original: China

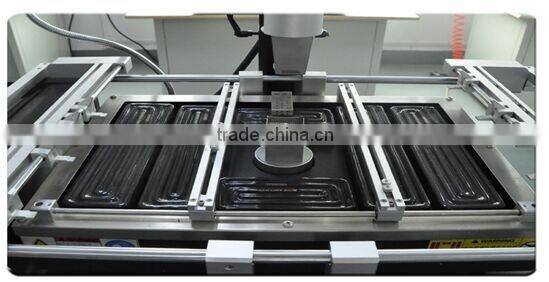

Flexible PCB Clamps
Adjustable PCB positioning support

Mahine Parts

Name: Heating zone

Original:  China

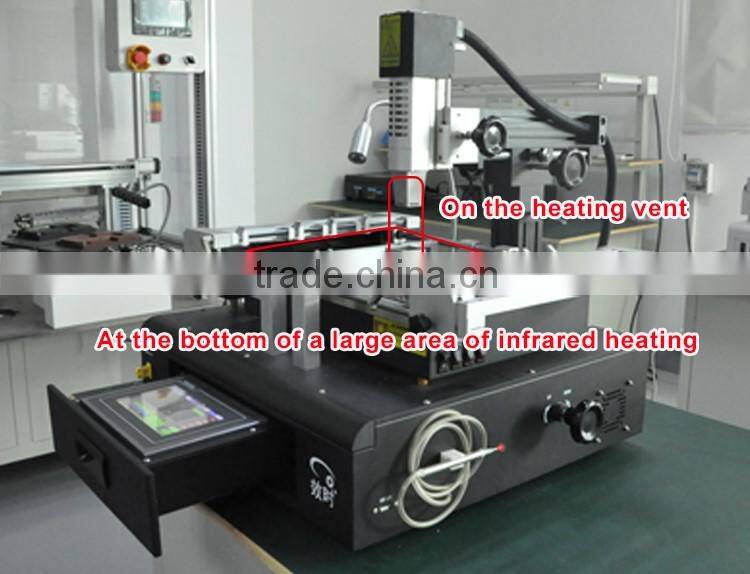

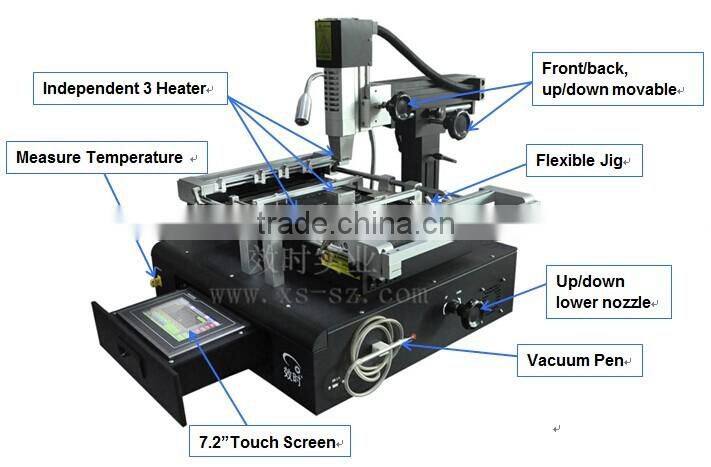

Independent 3 Heater(Upper/Lower hot air heating, Bottom IR preheating)

Real time diaplay

Protect repair process

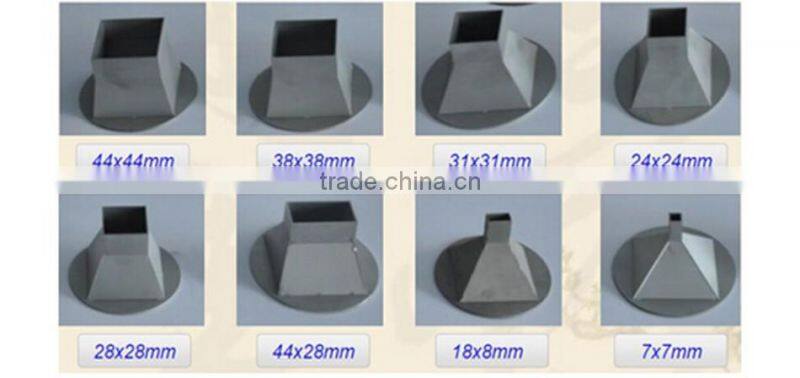

With different alloy hot gas nozzles

Suit for different kind of BGA

Warranty

1 Year Manufacturers warranty except for wear items like nozzles, tips and elements. Service is done in China .
Call us if you have any questions :
+86 15112437255

Payments

TT/ PayPal / Western Union is our preferred method of payment. After your payment, we will deliver machines within 7 working days.
