Semi-Automatic Ccd Camera Bga Rework Station Price RW-SP360C for Laptop Motherboard Same hr 560 Bga Rework Station

1) Top hot air heater  800W

2) Bottom hot air heater 800W

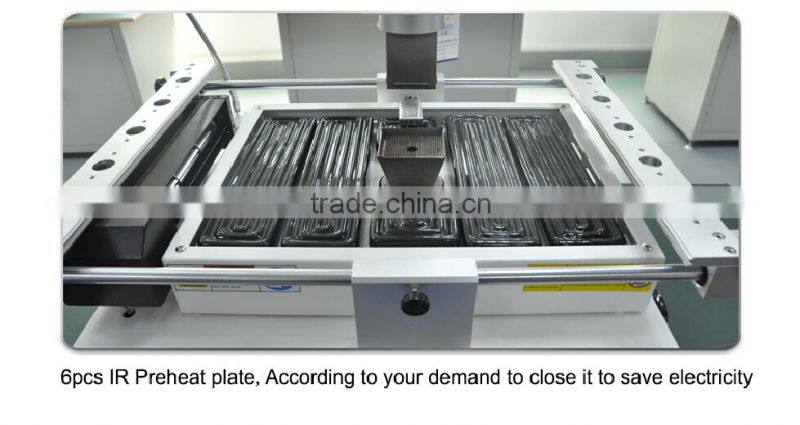

3) Bottom IR preheat - Prevent PCB board deforming ,2400W .

Features:

1) Made of high quality heating material; desoldering and soldering procedures of BGA are precisely controlled;

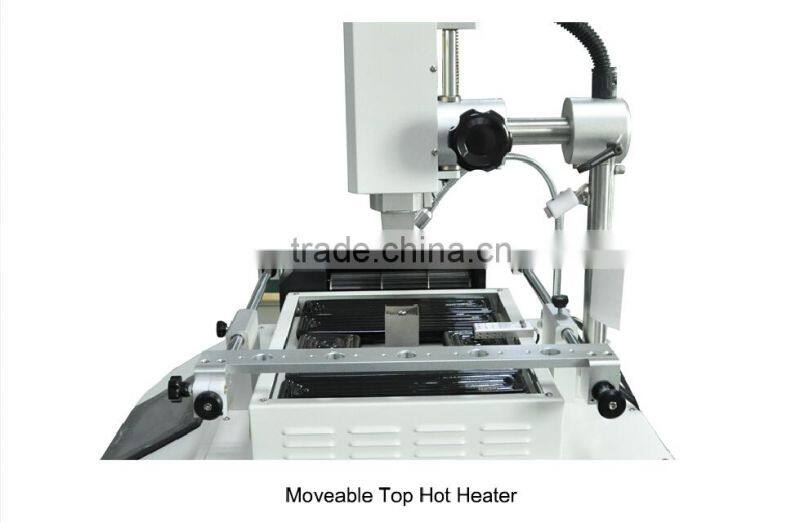

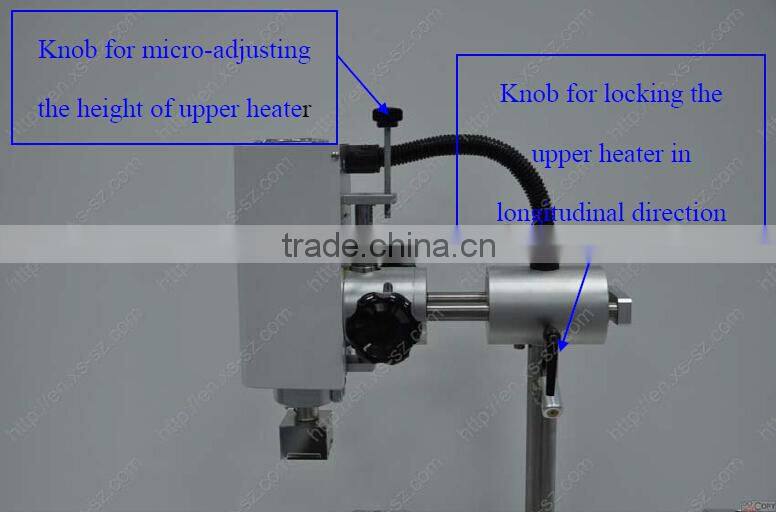

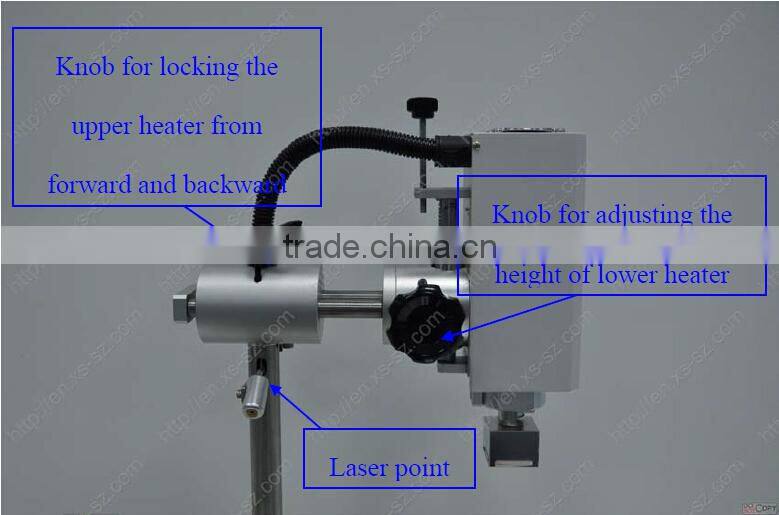

2) Movable heating head, which is able to move freely horizontally, easy to operated; - MOVEABLE TOP HEATER

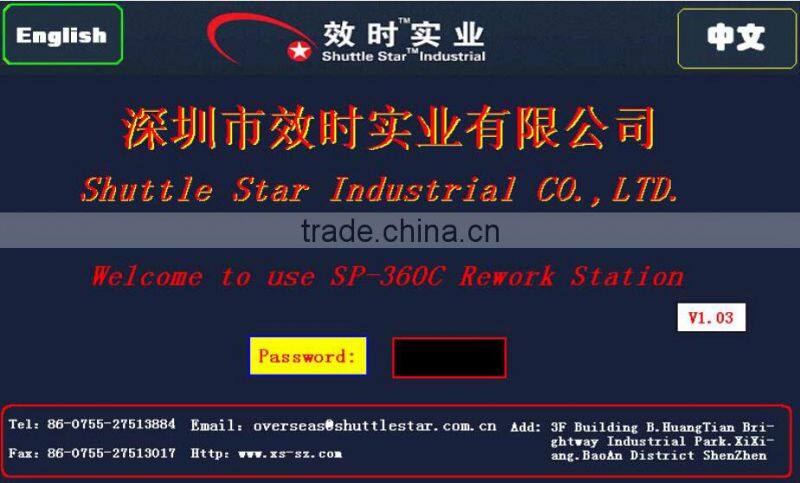

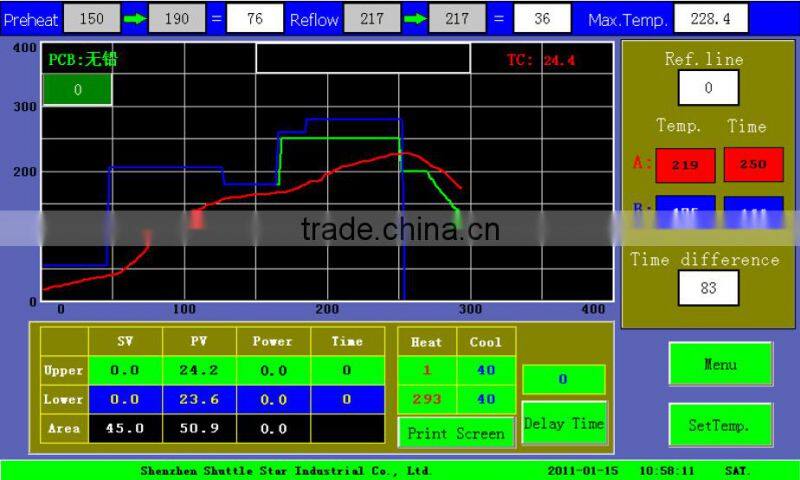

3) Embedded industrial computer, PLC control, real-time profile display, able to display set profile and practically-tested             profile; big size screen, easy to operate; - PLC CONTROL

4) Profile saving no limit in this industrial computer, can analyze the two  practically-tested profiles, can input both English         and Chinese;  - ENGLISH ENABLE

5) The temperatures of the upper and lower hot air heaters can be precisely controlled according to their specific                          temperatures. The infrared constant temperature heating zone at the bottom area and the appropriate temperature-          control settings make the rework safer and more reliable. - REAM-TIME DISPLAY

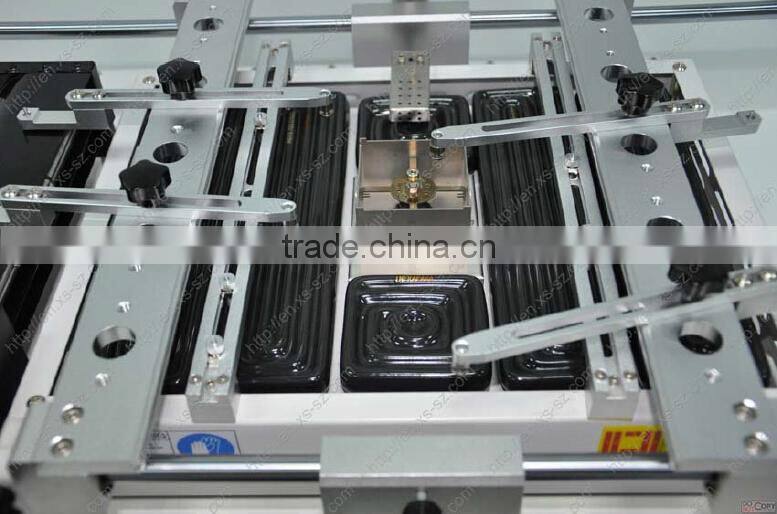

6) The supports for the BGA soldering supporting frame are micro-adjustable to  restrain local sinkage.

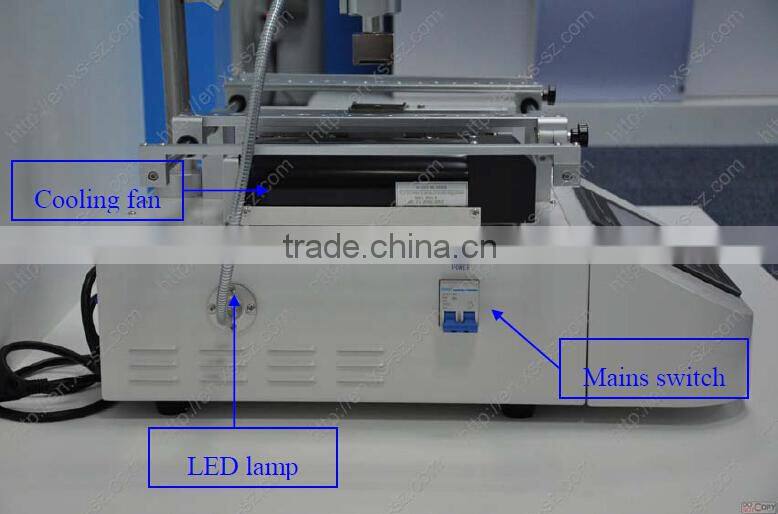

7) Powerful cross flow fans cool the lower heating area rapidly; - COOL SYSTEM

8) The adjustable PCB positioning support, onto which the special fixtures for alloyed board could be installed, enables easy        and fast positioning of the PCB board;

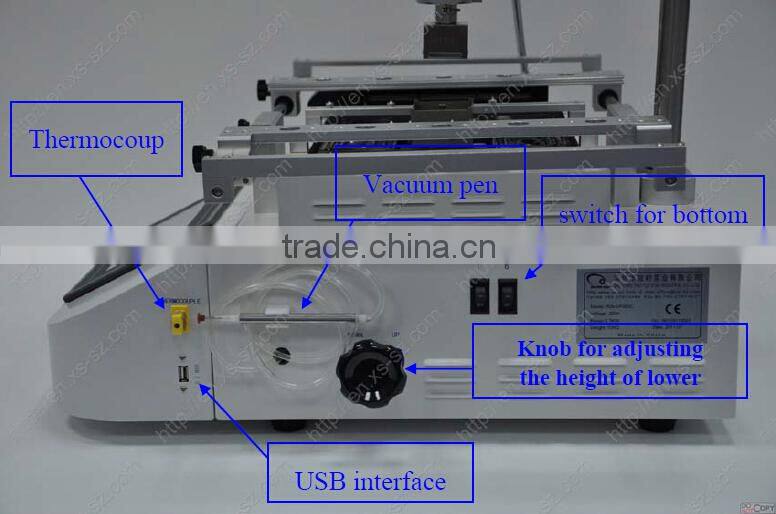

9) Buzz after soldering is finished or desoldering; Hand vacuum pen is adjustable for removing BGA; - HAND VACUUM

10) Both the upper and lower parts are equipped with over-temperature alarming and protection apparatus.-ALARMING

11) With different alloy hot gas nozzles, easy to replace. It could be tailored as per the specific requirements.-NOZZLE

12) The integrated design of machine and chassis is room-saving. could be altered to instrument-control.

13) The software can be updated to auto-profile in future by USB, no need to set profiles. - INTELLIGENT
