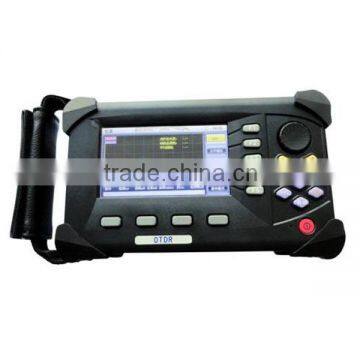

FCST080601 OTDR,handheld OTDR Tester, Fiber Optical cable Tester

FOB Price

USD $1 - $2,500 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	FCST
Model Number	FCST080601

Specification:

1, One-key operation
2, Shortcut key design, one- key setup
3, Firm, durable, shock-proof, moisture-proof

Wavelength(nm)	Dynamic Range(dB)	Event Dead Zone (m)	Attenuation Dead Zone (m)
1310±20/1550±20	34/32	<3m	<25m

Distance range(Km)	5m~160km (Dead Zone,100m,300m,1km,3km,10km,30km,50km,80km,160km)
Pulse width(ns)	5ns-10μs
Measurement time	user-defined(smart link) with real-time measurement function
Distance accuracy(m)	±(0.5m ±0.001%×range + sampling resolution)
Attenuation accuracy	±0.05dB/dB
Loss limit(dB)	0.01dB
Loss resolution(dB)	0.001dB
Sampling resolution(m)	0.1m
Sampling points	128000
Data storage	3000 item

LCD type	4.3 inch 16:9 480×272 TFT colorized LCD
Laser adapter	FC/PC SC/PC
Interface	USB,RJ45
Battery	built-in rechargeable Li-ion battery charging time <4 hours working time >8 hours
Power	AC/DC adapter input AC90-240V ±10% output DC12V
Operating temperature	0°C~40°C
storage temperature	-10°C~50°C
relative humidity	<80%
weight	<1.0Kg
dimensions (mm)	200×126×62mm

Packaging & Shipping

Our Services

OEM,FTTH consultant, after--sale service,Micro cable Solution consultant(design).
