FCST13301 FCST Direct Buried silicon micro duct for air Blown fiber unit 32/26mm

FOB Price

US$ 0.88 - 4.68 / Meter

1 Meter(Min. Order)

Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	FCST
Model Number	FCST13301

Product Description

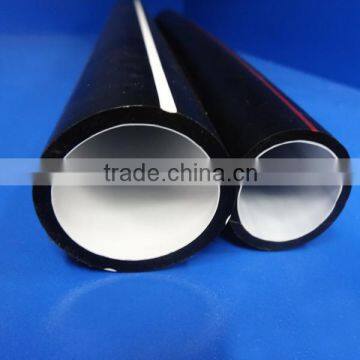

FCST13301 HDPE Fiber Optical Micro Duct 32/26mm

Product Description

FCST microducts using high-density polyethylene, the inner walls of vertical stripes silicon layer has a low coefficient of friction, guarantee results when blowing cable wrap better. There are many options microduct specifications.

Specification:

Speification mm	Nominal OD mm	Inside Diameter mm	Min Bend Radius mm	Max tensile load N	Withstand pressure Bar
MD-5/3.5	5.0	3.4	100	150	50
MD-10/8	10.0	9.9	120	420	30
MD-12/10	12.0	11.9	144	520	25
MD-14/10	14.0	13.9	280	1010	50

Properties	Parameter
Application temperature range	-40°c~70°c
Standard tray length(m)	2,000~3,000

Common specifications of the mechanical properties of microducts:

Inner Diameter	14mm	Hold 288f,216f,144f,96f,48f,24f,12f core micro cable
Inner Diameter	12mm	Hold 288f,216f,144f,96f,48f,24f,12f core micro cable
Inner Diameter	10mm	Hold 216f,144f,96f,48f,24f,12f core micro cable
Inner Diameter	8mm	Hold 96f,48f,24f,12f core micro cable
Inner Diameter	6mm	Hold 48f,24f,12f core micro cable
Inner Diameter	5.5mm	Hold 1f,2f,4f core micro cable
Inner Diameter	3.5mm	Hold 1f,2f core micro cable

Advantages:

Microduct is a new high-tech products, in reducing the cost, easy construction conditions, exponentially enhance the value of existing underground pipeline capacity and resources, has a traditional pipe products irreplaceable advantages.

Packing information:

Wooden tray packaging, The nominal shelf wide 500mm, outer diameter 1000mm, can be wound 2000 ~ 2500m;

Exhibition:

Packaging & Shipping

•Packing: By drum.
•Shipping: By air. By sea. By TNT. By DHL.By UPS etc.

Our Services

ODM,Product training,FTTH solution consultant,After sale service,Fiber blowing solution consultant,Fiber tools&toolkits consultant.
