Home > Products > New Products > public network trunked wcdma police gsm 2 way radio

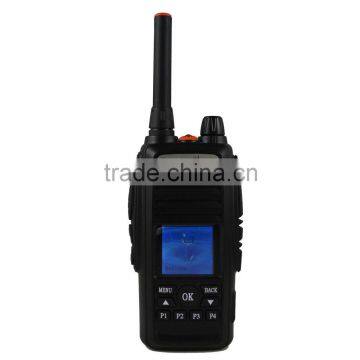

public network trunked wcdma police gsm 2 way radio

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Port SHENZHEN/XIAMEN/HANGZHOU
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	TESUNHO gsm 2 way radio
Model Number	TH-288 gsm 2 way radio	Type	Handheld
Dimensions	100mm58mm32mm	Frequency Range	UMTS850/2100 OR GSM900/1800
Storage Channel	Group	Talk Range	Unlimited gsm 2 way radio

Product Description

public network police gsm 2 way radio

Backgroup

The traditional analogue and digital walkie talkie's talking range is always affected by various of environmental elements. To break through the dilemma, the public network is born at the right moment. It can realize the effect "talk over the world". It also save the management cost and improves the management efficiency. Working together with a platform, the manager can assign permission to achieve different level's dispatching by the public network walkie talkie. It can be widely used in the logistics,freight taxi,urban management,medical aid, security system, high-end property, large construction sites and other industry users

gsm 2 way radio main features

12V/24V Intelligent Charger

Battery Capacity Indicator

Ultra High Capacity Li-ion Battery

Network Signal Strength Prompt

USB Charging Interface

Voice Prompt

Bright Flashlight Illumination

TOT Function

Selective Calls, Group Calls and All Calls

User Authority Setting

Transmitting Ending Prompt

Programmable Function Key

gsm 2 way radio specification

Technique Specification
General Features	Dimensions(without antenna)	100mm58mm32mm
	Weight(With Battery)	About 194g
	Operating Temperature	-30℃ to +75℃
	Operating Voltage	DC 3.3V-4.2V(3.8V is recommended)
	Operating Current	Peak Current	About 0.6A
	Average Current	About 540mA@UMTS 2100 About 239mA@GSM 900
	Standby Current	About 5mA@UMTS About 5mA@GSM
Baseband	(U)SIM/SIMU	Standard SIM card interface 3V SIM card and 1.8V SIM card
	USD Interface	USB 2.0 HIGH SPEED
	UART Interface	8-wires UART
	MAX. Power Consumption	About 2.2W
Radio Frequency	UMTS Band	HSDPA/WCDMA:2100/1900/850(900)MHz
	Transmit Power	UMTS2100/1900/900/850:Power Class 3 (+24dBm +2.5/-1.5dBm)
		EDGE 850MHz/900MHz: Power Class E2 (+27dBm +4.5/-1.5dBm)
		EDGE 1800MHz/1900MHz: Power Class E2 (+26dBm +4.5/-2.5dBm)
	Receiving Sensitivity	WCDMA2100: ≤-108dBm
		WCDMA1900: ≤-109dBm
		WCDMA900 : ≤-109dBm
		WCDMA850:≤-109 dBm
		GSM850/900/1800/1900: ≤-107dBm

Packaging & Shipping

MOQ	2 for samples; 100 for mass production; 500 for OEM
Packaging	Gift box, 20pcs/carton
Trade Terms	FOB Xiamen/Shenzhen/Hangzhou
Express delivery	DHL/UPS/FEDEX/EMS/TNT
Delivery time	3-5 days after receiving the payment
Payment	T/T, West Union, Money Gram, PayPal,Escrow or LC
Warranty	Radio 1 year; Accessories 3 Months

Our Services

Warranty

Item	Period	Service
Main Unit	1 Year Warranty	finish maintainance within 1-15days after receiving the returned units
Battery	Half Year Warranty	Within Half Year:send you brand new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation
Charger	Half Year Warranty	Within Half Year:send you brand new one if it is not manually damaged; Beyond Half Year:supply cost-effective renovation

Design Services

Project

Repeater Design and Production

PCB/PCBA Design and Production

Chip programme Design and Production

Analog walkie talkie Design and Production

Internet walkie talkie Design and Production

Digital walkie talkie Design and Production

Switching power supply Design and Production
